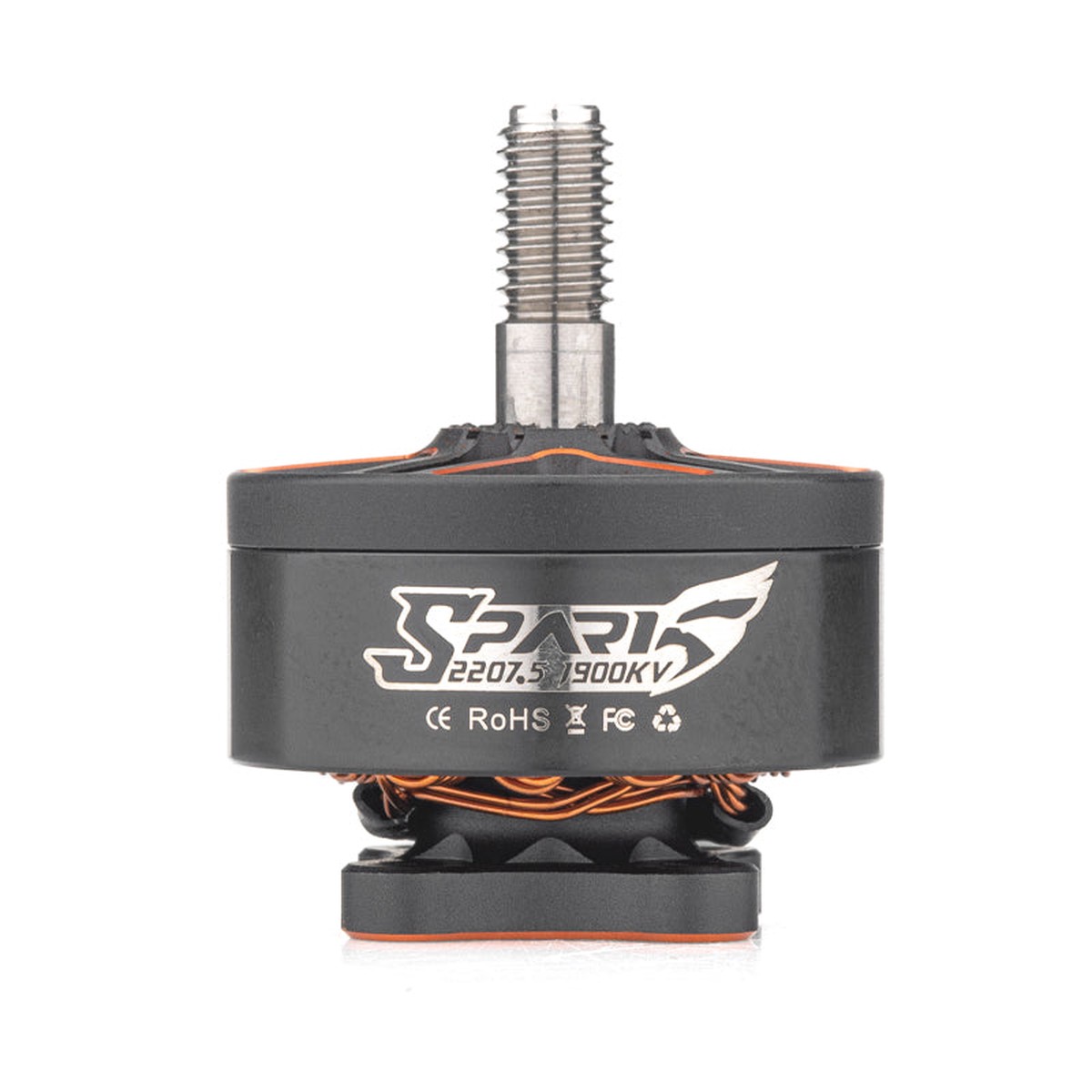

VCI SPARK 2207.5 FPV Motor 1900KV/2550KV, 22×7.5 Stator, M5 Shaft, 5-Inch Quadcopter Build

Overview

VCI SPARK 2207.5 is a high-performance FPV motor offered in two KV options (1900KV or 2550KV). It uses a 22×7.5 mm stator format with a 5 mm (M5) shaft and is commonly paired with 3-blade 5-inch-class propellers in multirotor builds.

Key Features

• KV options: 1900KV or 2550KV (selectable)
• 12S14P configuration with N52SH arc magnets
• 5 mm (M5) shaft, 4x M3 mounting pattern
• 20AWG silicone wire, 150 mm lead length

Specifications

Mechanical drawing (unit: mm)

SPARK 2207.5-1900KV

SPARK 2207.5-2550KV

Test Data (Reference)

Static bench test results are reference data from the manufacturers test platform.

• 1900KV @ 24V (6S): Max recorded thrust 1856 g with GF 51499-3 at 44.29A (1062.96W), 29788 RPM, 96 C.
• 2550KV @ 16V (4S): Max recorded thrust 1691 g with GF 6030-3 at 53.88A (862.08W), 26645 RPM, 89 C.

Applications

• FPV multirotor builds using 5-inch-class 3-blade propellers
• Freestyle and racing quad setups where 2207.5 motors are specified

For compatibility questions (frames, props, ESC current headroom, and battery setup), contact [email protected] or visit https://rcdrone.top/.

Details

Dimension reference for fitting the 2207.5 motor to frames using a 16 mm (4M3) mounting pattern and an M5 shaft.

Manufacturer reference tables compare 1900KV (6S) and 2550KV (4S) versions, including bench-test thrust, current, and RPM curves.
