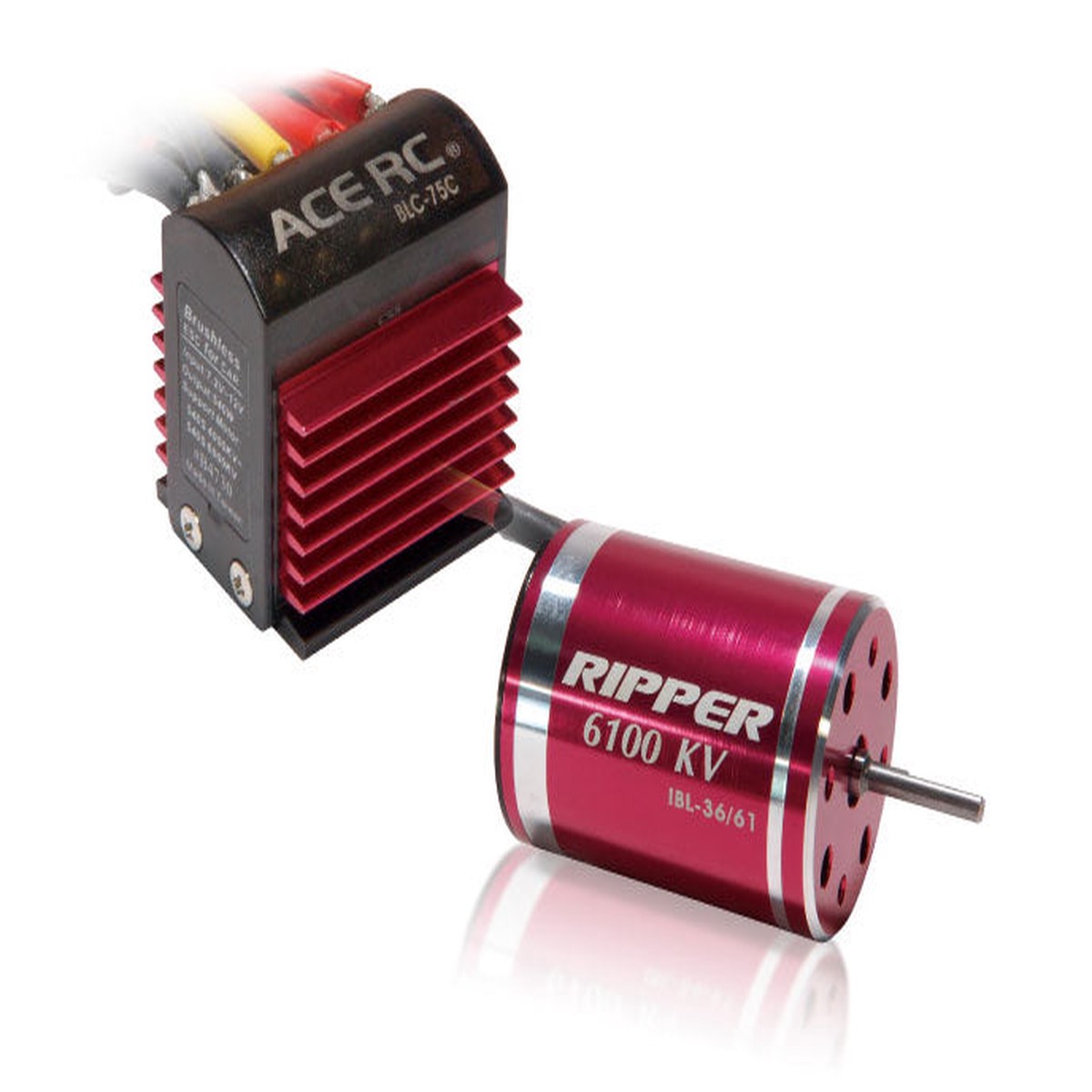

Name: THUNDER TIGER BLC-75C BRUSHLESS SYSTEM MODEL 8057
SKU: TZTM786650931917
Availability: InStock

ITEMS INCLUDED: ESC,Brushless motor,ESC setting card, Motor Fan

ACE RC Brushless ESC

Ready to enjoy brushless power to the fullest? ACE RC BLC series brushless ESC is an affordable, high performance and efficient brushless ESC offering most 1/10 scale and 1/18 scale drivers the most convenient way to upgrade their car to brushless. All series ESC are available in either stand-alone or in combos wit extreme power brushless, sensorless motor for immediate, ” plug and play ” use.

RIPPER IBL 540C Series brushless motors

Product Name	IBL36/49-540-C	IBL36/61-540-C
Item No.	2359	2360
Motor Type	BQ6092	BQ6093
Voltage range	6~8 cells	6~8 cells
RPM per volt	4900RPM/V	6100 RPM/V
Dimensions(mm/in)	A:36/1.42	A:36/1.42
	B:46/1.81	B:46/1.81
	C:3.175/0.125	C:3.175/0.125
	D:17/0.67	D:17/0.67
	E:25/0.98	E:25/0.98
	F:M3*0.5	F:M3*0.5
Max.efficiency current	10~50A	10~55A
Max.surge current	55A/60s	60A/60s
Internal resistance	12m	8m
Weight(g/oz)	190/6.7	190/6.7
