Name: T8 8318 FOC Motor set + 120A ESC - 20L Agriculture Drone Heavy Payload Brushless Motor Proplusion System
SKU: HDPQ2175814
Availability: InStock

Description
Reviews (0)

T8 8318 FOC Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor Set

Tool Supplies: MOTOR

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: M8

Model Number: 8318

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

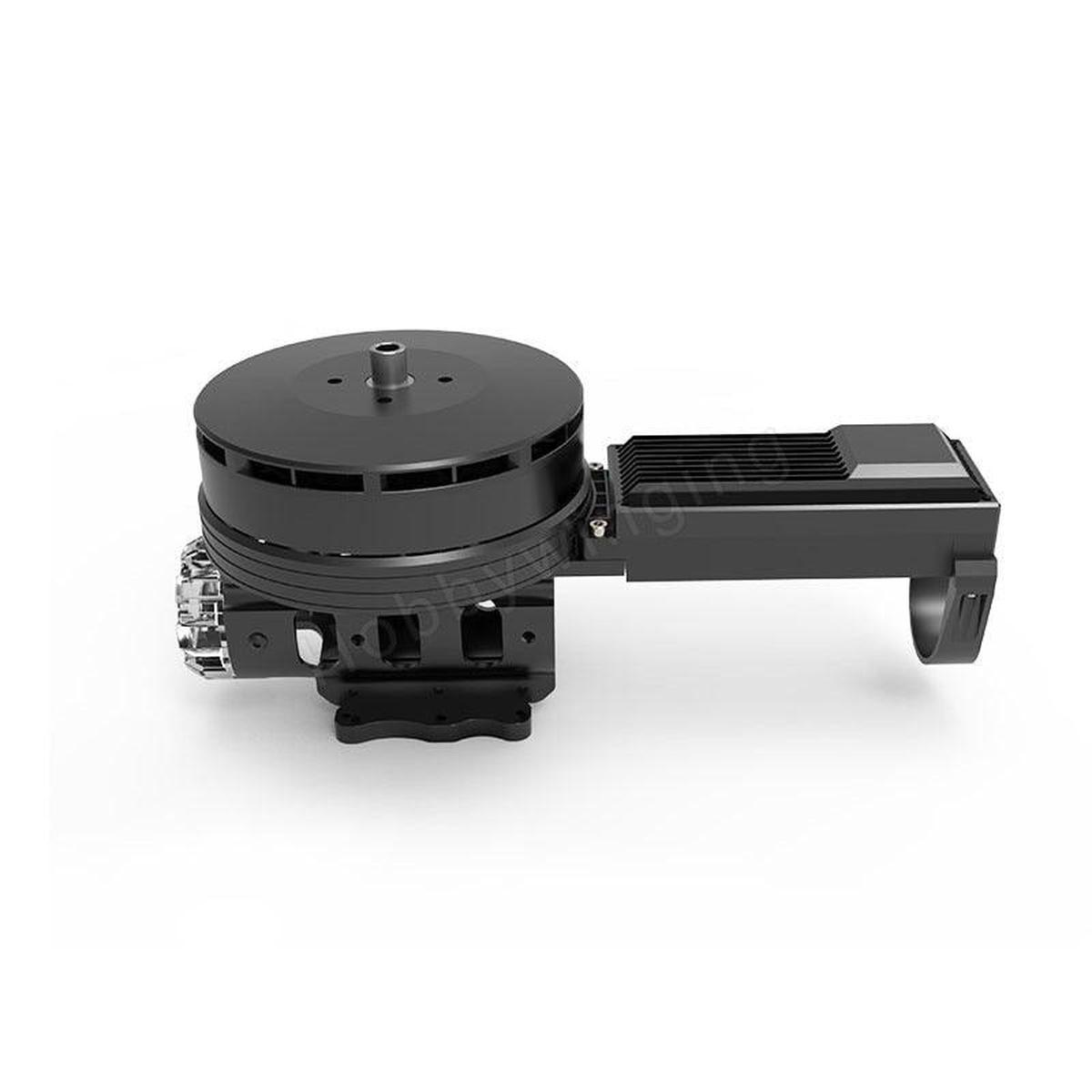

M8 Proplusion System is the heavy loads Drone Motors with ESCcombo for Agricultural Spraying Drones and industrial application multirotor which use 40mm Pipes .The weight is 1218g and Providing 5kg to 10kg /Motor of rated load capacity.Designed with weather-proof. Prevent for corrosion ,rain,salt spray. And centrifugal cooling system bring higher efficiency of the cooling. It adds reliability and enable for continue running. ESC has locked rotor protection too keep safty, and components self-checking, if the motor detected the components problem it wont unlock motor.M8 Motor Combo integrated with 120A FOC ESC and 32*120 Folding Propeller (PROPELLER NOT INCLUDE)for quad copter allow takeoff weight up to 32kgs. Work with Quad Copter 10L spraying drone or Hexa Copter with 20L payload.

JMRRC Motor Parameters Model: M8 (8318) Technical Data 120 Configu-ration 36N40P Stator Diamter 83mm Stator Length I8mm Shaft Diameter I2mm Motor (96*119.Imm Dimension(Dia *Len) Weight(g) 1218g Iale 1.53 current(IO@2OV(A) No.oi Cells(Lipo) 6 14S Max Continuous 2887 Power(WJ180S Internal

* Note *carbon tubenot included in the package
