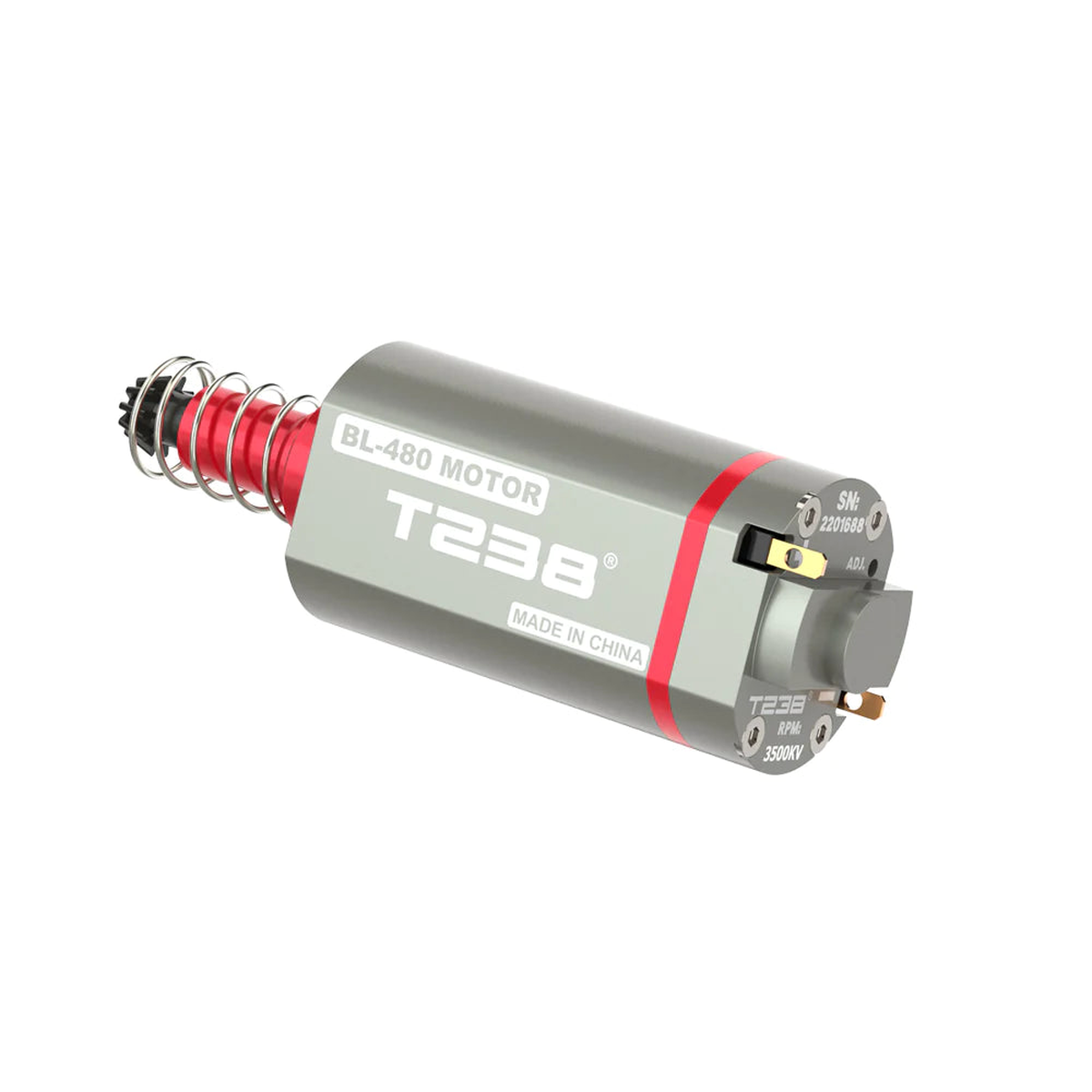

T238 Brushless Motor (39000RPM High Speed/Torque, adjustable, Long Type)

This T238 brushless motor comes with a 1.3mm hex driver for the pinion gear, which is preinstalled from the factory.

The motor’s speed can be easily adjusted from 50% to 100% using a small screw located at the tail end of the motor.

The motor is well-suited for high-speed and high-torque applications.

Manufacturers notes: Why use a Brushless motor in your AEG?

-Higher torque to weight ratio
-Increased torque per watt of power input (increased efficiency)
-Increased reliability and lower maintenance requirements
-Reduced operational and mechanical noise
-Longer lifespan (no brush and commutator erosion)
-Elimination of ionizing sparks from the commutator (ESD)
-Near-elimination of electromagnetic interference (EMI)

Specs:

Motor pinion gear: D-type
Maximum power: 380W
Input voltage: 7.4v-16.8v No Load speed (11.1v): 39000RPM/Current: 2.35A
Load speed: 32800RPM/Current: 22.5A
Stepless speed regulation (range 50-100% can be adjusted through the potentiometer of the small hole in the tail cover.
Compatibility: Long shaft motor fits M4/M16 series AEG and other AEG which use long shaft motors.

Warning! This brushless motor is best to use our brand T238 ETU/MOSFET, not compatible with other brands of ETU/MOSFET, if the use of other brands of ETU/MOSFET causes motor failure, no warranty.

HIGHLY EFFICIENT. DURABLE AND RELIABLE.

Motor body material: CNC Aluminum precision machining
Motor gear: D type
Brushless, low heat at high output
Long service life, battery temperature
Emergency stop after power failure, no buffer, stable output
Overheat protection, low voltage protection, locked rotor protection
Stepless speed regulation (range 50-100%) can be adjusted through the potentiometer of the small hole in the tail cover.

Warning! This brushless motor is best to use our brand T238 ETU/MOSFET, not compatible with other brands of ETU/MOSFET, if the use of other brands of ETU/MOSFET causes motor failure, no warranty.
