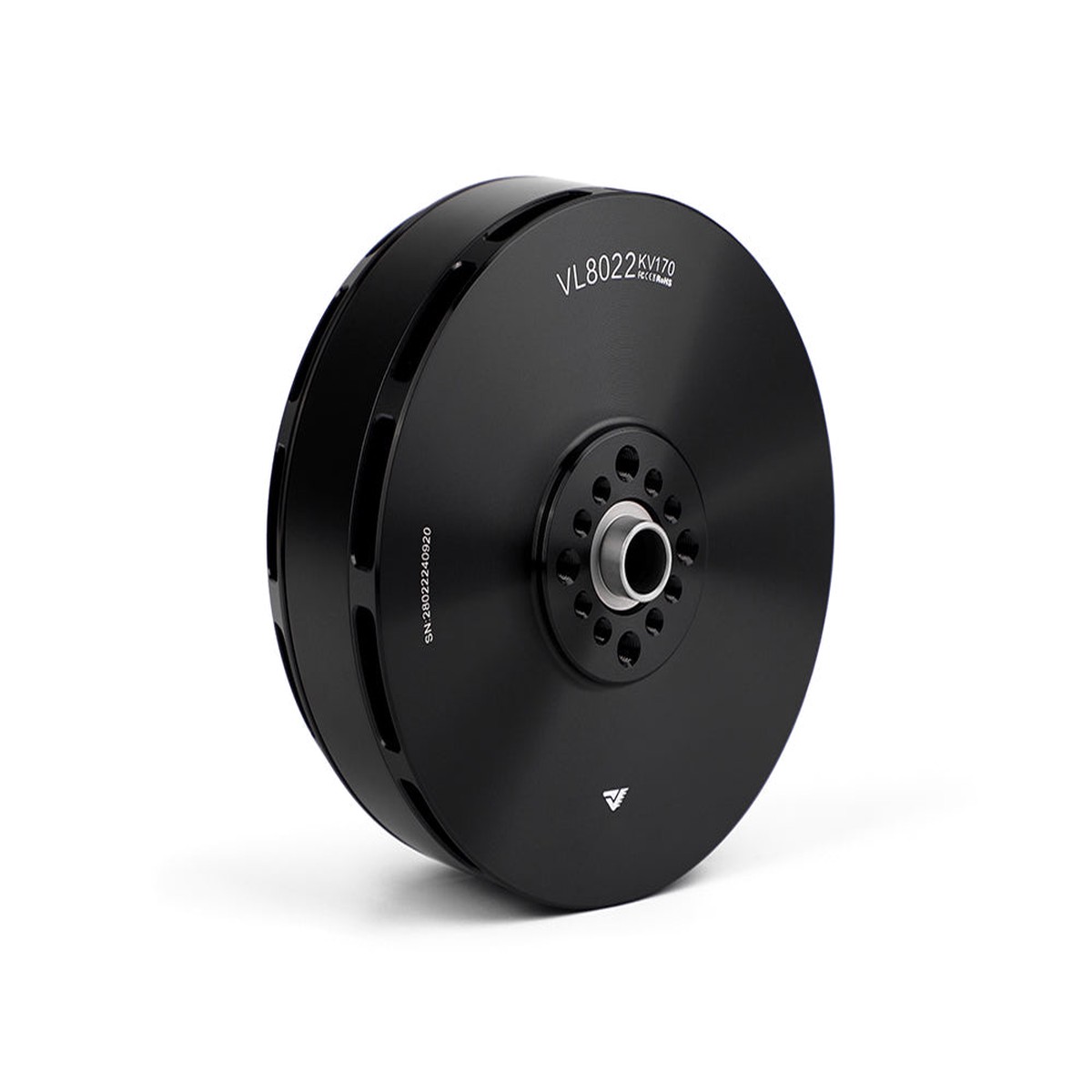

T-Motor VL8022 KV170 VTOL UAV Motor w/ Quick-Lock Propeller System, V150A ESC, VZ29 29×11 Prop

Overview

The T-Motor VL8022 KV170 is a VTOL UAV Motor designed for VL Series propulsion setups, combining fast, economical electronic propeller locking with a matched control ecosystem. The system is presented with V150A ESC and VZ29 propeller recommendations for VTOL/fixed-wing aerodynamic layouts.

Key Features

• Fast propeller locking: locks the propeller in seconds.
• 360 custom angle propeller locking: helps avoid turbulence caused by rotor rotation and helps keep the fixed-wing aerodynamic layout unaffected.
• Adaptive (economical) propeller locking: ESC automatically adjusts current to control locking torque as external force changes, reducing power consumption and heat for energy saving.
• Recommendation: 12S voltage; 22.2 kg max thrust/arm; 40 kg recommended MTOW (Quad).

Specifications

Motor (VL8022)

ESC (V150A)

Propeller (VZ29)

Whats Included

• VL8022 x1
• Parts Bag x1

Applications

• VTOL and fixed-wing UAV propulsion setups requiring electronic propeller locking
• Multi-rotor configurations (recommendation: 40 kg MTOW for quad, 12S)

For pre-sales compatibility checks and support, contact [email protected] or visit https://rcdrone.top/.

Downloads

• VL8022 3D Diagram.rar
• VL8022 Propulsion System Specifications.pdf
• TM-Link_V2.0 Upper Computer
• TM_UAVCAN_V2.3 CAN Communication
• User Manual

Details

The T-Motor setup pairs a VL802 KV110 brushless motor with a 150A 14S ESC in a clean, compact layout.

The carbon-fiber two-blade propeller has a slim profile and a centered mounting hub for straightforward drone installation.

The VL8022 motor comes with a mounting plate and screw hardware for installation.
