Tmotor AT4130 SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Cutting

Technical parameters: Value 2

Size: T-Motor AT4130

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: T-Motor AT4130

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

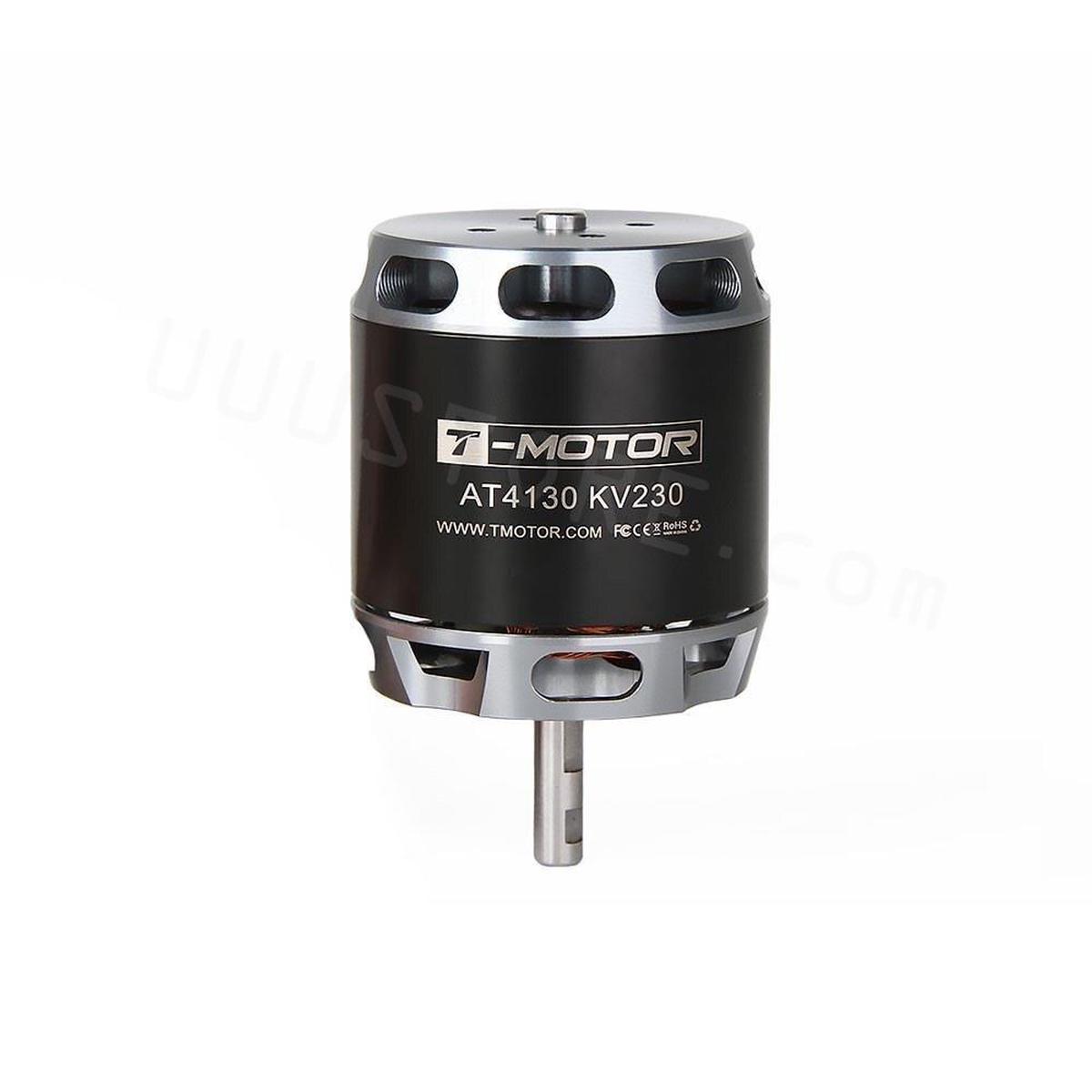

T-MOTOR Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized UAV Drone Electric Fixed Wing Motor OEM OR ODM

Specifications

Test item : KV230 Long ShaftWeight (Incl. Cable) : 408gMotor Dimensions : 50*79mmInternal Resistance : 60mLead :Enameled Wire100mmConfiguration : 12N14PShaft Diameter : IN:6mm , OUT:6mmRated Voltage(Lipo) : 12Sldle Current(10V) : 1.4APeak Current(180s) : 60AMax. Power(180s) : 2500WRecommendation : /
Test item : KV300 Long ShaftWeight (Incl. Cable) : 405gMotor Dimensions : 50*79mmInternal Resistance : 32mLead :Enameled Wire100mmConfiguration : 12N14PShaft Diameter : IN:6mm , OUT:6mmRated Voltage(Lipo) : 6-12Sldle Current(10V) : 1.8APeak Current(180s) : 75AMax. Power(180s) : 3200WRecommendation : /

Test item : KV450Long ShaftWeight (Ind. Cable) : 408gMotor Dimensions : 50*79mmInternal Resistance : 16.8mLead : Enameled Wire100mmConfiguration: 12N14PShaft Diameter : IN:6mm , OUT:6mmRated Voltage(Lipo) : 6Sldle Current(10V) : 2.5APeak Current(180s) : 75AMax. Power(180s) : 1800WRecommendation :/

AT4120 KV56O Kei0 9 THE UPGRADED AT SERIES The upgraded AT Series are designed for fixed-wing model; VTOL UAV: See 1 leap in quality after well-grounded development .

The design features a lateral outlet hole and an internal heat dissipation structure that forms a semi-box-shaped configuration, which enhances the motor’s strength and heat dispersal performance. Additionally, it boasts a 5S-efficient cooling system and features military-grade wire.

Anti-Stripping Design Ensures Enhanced Safety: Our motor features a linear shaft design, reinforced by a C-Clip lock and shaft collar. This double-layered security mechanism guarantees stability and reliability even at high rotation speeds, eliminating the risk of rotor loosening and ensuring safe flight.

Features premium raw materials and exceptional craftsmanship, combining the finest components with meticulous attention to detail.

Featuring triple-bearing support, this motor provides greater stability, efficiency, and strength under heavy loads, making it more durable and capable of flying longer distances.

the adapter and cover plate of propeller adopt embossing design to provide more secure mounting . the second generation of new at SERIES will gradually release a full range of products . Whether it’s 3D, trainer, glider, or a larger scale plane and fixed-wing drone .

Specifications: Test Item – Long Shaft Motor (KV230):* Weight (including cable): 405g* Motor Dimensions: 50mm x 79mm* Internal Resistance: 60m* Lead Enameled Configuration: 12N14P IN (6 turns per inch)* Shaft Diameter: Not specified* Rated Voltage (Lipo): 6-12.5V* Idle Current (1.0V): 1.4A* Peak Current (180s): 60A* Maximum: Not specified
