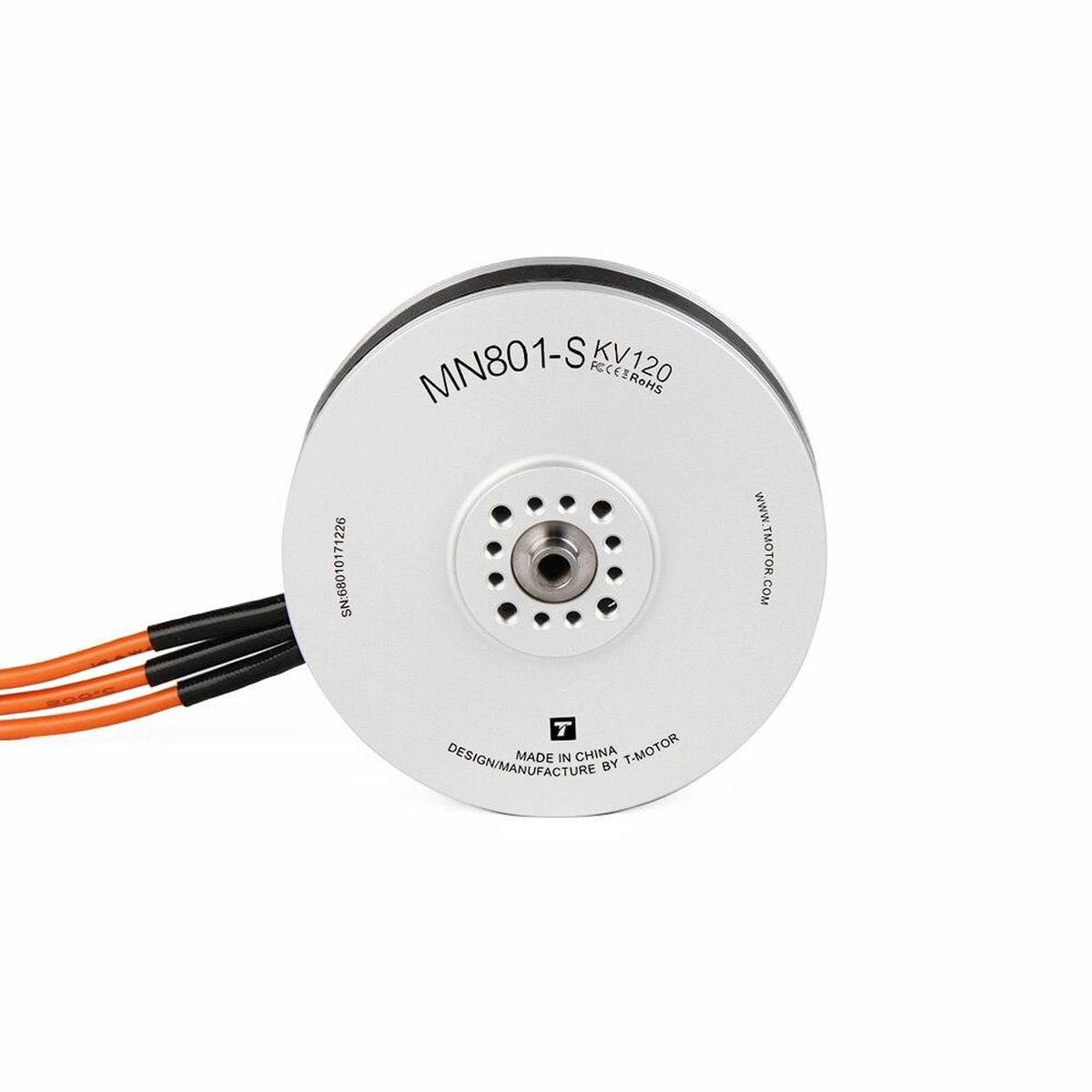

T-motor MN801S KV120 150KV Brushless Motor 12KG+Thrust For VTOL For Multi-rotor Helicopter RC Rotors Quadcopter

T-motor MN801S KV120 150KV Brushless Motor 12KG+Thrust For VTOL For Multi-rotor Helicopter RC Rotors Quadcopter

T-motor MN801S KV120 150KV Brushless Motor 12KG+Thrust For VTOL For Multi-rotor Helicopter RC Rotors Quadcopter

Original price was: $322.81.Current price is: $147.00.
  • SKU:THQ8012115001
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

T-motor MN801S KV120 150KV Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN801-S

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

Heavy load motor born for VTOL Take off weight.20-30KG MN801S oHS 1 L MADE IN 12 KG 124 Thrust Stable & Reliable Safe Impact resistant IP45 Mn801-S KV12O Rce-Rc 1 1 T-MOTOR CHINA_ DESIGNIMANUFAC

The bell-shaped cap design effectively increases the heat dissipation area, resulting in a 15% enhancement to cooling performance. Additionally, the superior cooling system features simulated airflow analysis for overload protection.

The motor features a special alloy shaft, custom bearings, varnished wires, and a silicon steel sheet, magnet, and bell that are treated with the latest anti-rust and anti-corrosion technologies for exceptional protection. It also boasts waterproof and dust-resistant capabilities.

The T-motor MN801S features a secured shaft design, equipped with both a cir-clip and screw, which ensures safety and reliability even at high RPM powers without compromising rotor stability. Additionally, the motor’s long lifespan is ensured by the use of high-quality Zmm steel shaft and 24mm big bearings.

The T-motor MN801S features anti-high temperature curved magnets with precise tolerance control and optimized magnet spacing, which optimizes the magnetic circuit to deliver improved motor performance, resulting in an enhancement of at least 5%.

Specifications Motor Size p89*39.4mm Imported silicon steel sheet; Anti-rust treatment; Stator 150 Chigh temperature-resisting coatings Configuration 24N28P Shaft Diameter IN 8mm OUT 8mm Bearing Imported 6901ZZ Magnet Level 180FC high temperature resistance Lead Cable 14AWG*15Omm Copper Wire 220FC high heat resistance: Level Coil Insulation Test S0Ov Centrifugal Cooling Design YES Rotor Dynamic Balance

ESC Recommendation FLAME 60A 12S Peak Current (1 180s) 120v (Lipo) 6-12s Idle Current (18V) 1.1A ESC recomendation . 470g Interna Resistance 80mn Package Weight 600g 150v Rated Voltage .

Before using the product, kindly verify that your package includes all the components listed above. If you find any items missing, please reach out to our online customer service for assistance.
