Name: T-Motor AS2304 Short Shaft Brushless Motor for Fixed-Wing Drones/RC Aircraft (KV1800/KV2300)
SKU: ELAC22173212386
Availability: InStock

Description
Reviews (0)

Overview

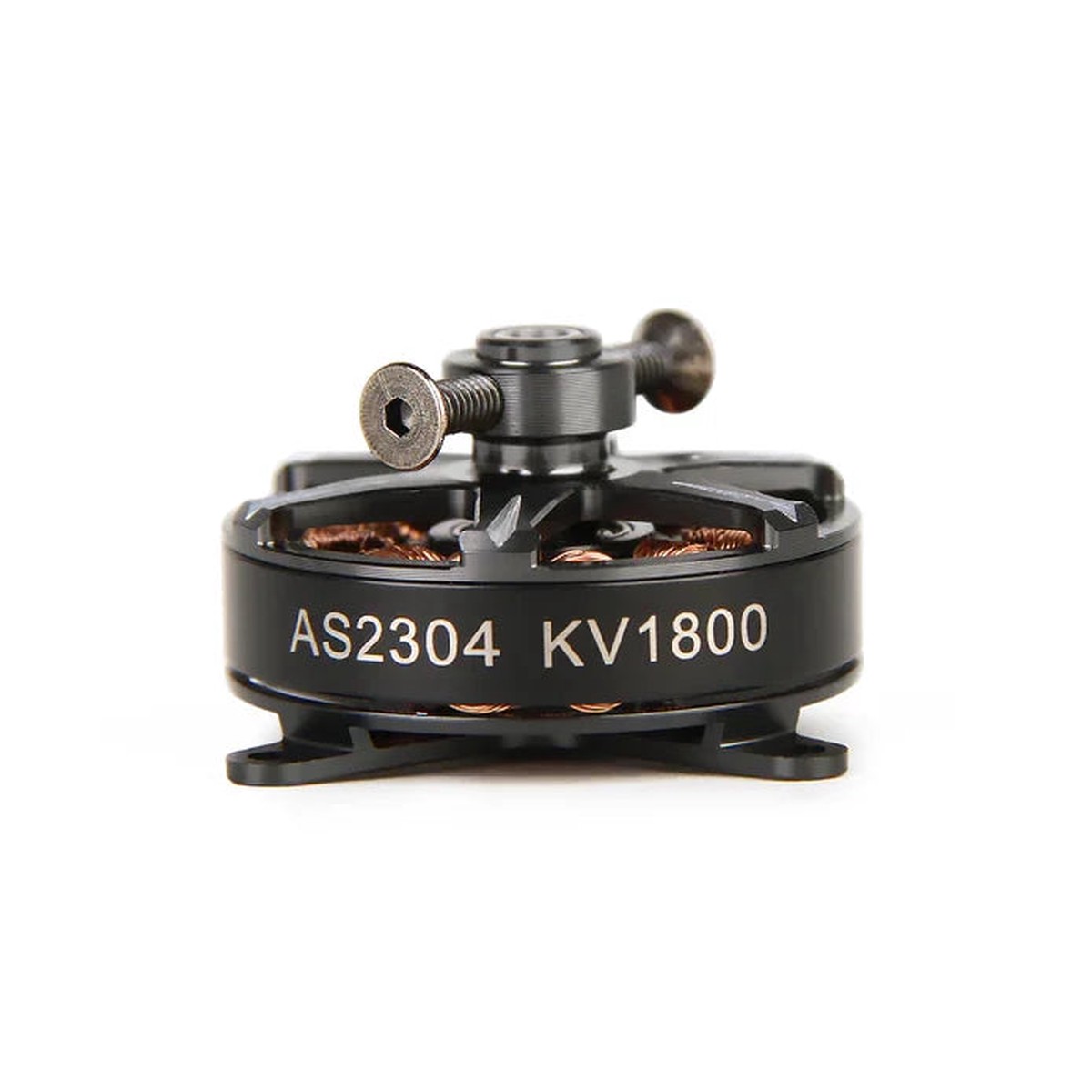

T-Motor AS2304 is a short-shaft brushless motor intended for fixed-wing drones / fixed-wing RC aircraft. The images show AS2304 variants labeled KV1800 and a bench-test sheet labeled AS2304 Short Shaft KV2300.

Specifications

Model	AS2304 (Short Shaft)
KV (as shown)	KV1800; KV2300
Bench-test propeller (as shown)	GWS 8040
Motor temperature (as shown)	87 (Ambient Temperature:/)

Bench-test data (GWS 8040, AS2304 Short Shaft KV2300)

Values below are transcribed exactly as displayed, keeping the original column order.

55%	7.23	4.82	33.39	6762	0.029	257	7.68
60%	7.14	5.55	39.62	7184	0.032	265	6.68
65%	7.05	6.51	45.90	7589	0.036	298	6.49
70%	6.98	7.71	53.82	8017	0.039	333	6.18
75%	7.03	9.19	64.60	8512	0.044	374	5.79
80%	7.11	10.98	78.02	9021	0.050	425	5.44
90%	7.09	14.64	103.86	9817	0.059	507	4.88
100%	7.08	15.20	107.63	9899	0.060	513	4.77

Note: Motor temperature is motor surface temperature @100% throttle running 3mins. (Date above based on benchtest are for reference only, comparison with that of other motor types is not recommended.)

Whats Included

Motor x 1
Parts Bag x 1
- 2.0*20mm O ring*2
- M2*5mm cross self taping screw*4
- 10*5.5*7*2.5mm Aluminum Prop Adapter*1
- 10*5.5*8*2.5mm Aluminum Prop Adapter*1
