T-Motor Antigravity MN2806 EVO KV650 Brushless Motor – Arc Magnets, 220C Wire, 1390g Thrust

Overview

T-Motor Antigravity MN2806 EVO KV650 is a brushless motor upgraded with arc-shaped magnets to reduce the stator air gap, improve magnetic flux distribution, and reduce magnetic leakage for higher motor efficiency. It also uses enameled wire rated up to 220C to maintain stability under high RPM, heavy loads, and elevated temperatures.

Key Features

• Arc-shaped magnets designed to closely fit the steel ring, reducing the stator air gap and improving efficiency.
• High-temperature enameled wire rated for 220C.
• Maximum thrust increased by 16% to 1390g.
• Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).
• Efficiency chart labeling (Efficiency (g/W) vs Thrust (g)):
  • MN2806 EVO + KV650 + 16V + AIR 40A + P13
  • MN2806 + KV650 + 16V + AIR 40A + P13

Specifications

Whats Included

• Antigravity MN2806 EVO KV650 motor x1
• phi20*M6*26mm propeller mount x1
• M6*1 bullet head x1
• phi20*phi4*2.4mm cover plate x1
• M3*5mm cup head hex screw x4
• M3*8 cup head hex screw x2

For compatibility and setup questions, contact support@ or visit https:///.

Matching Guide

• AIR40A 6S ESC
• P12*4 polished integrated carbon fiber propeller
• P13*4.4 polished integrated carbon fiber propeller

Details

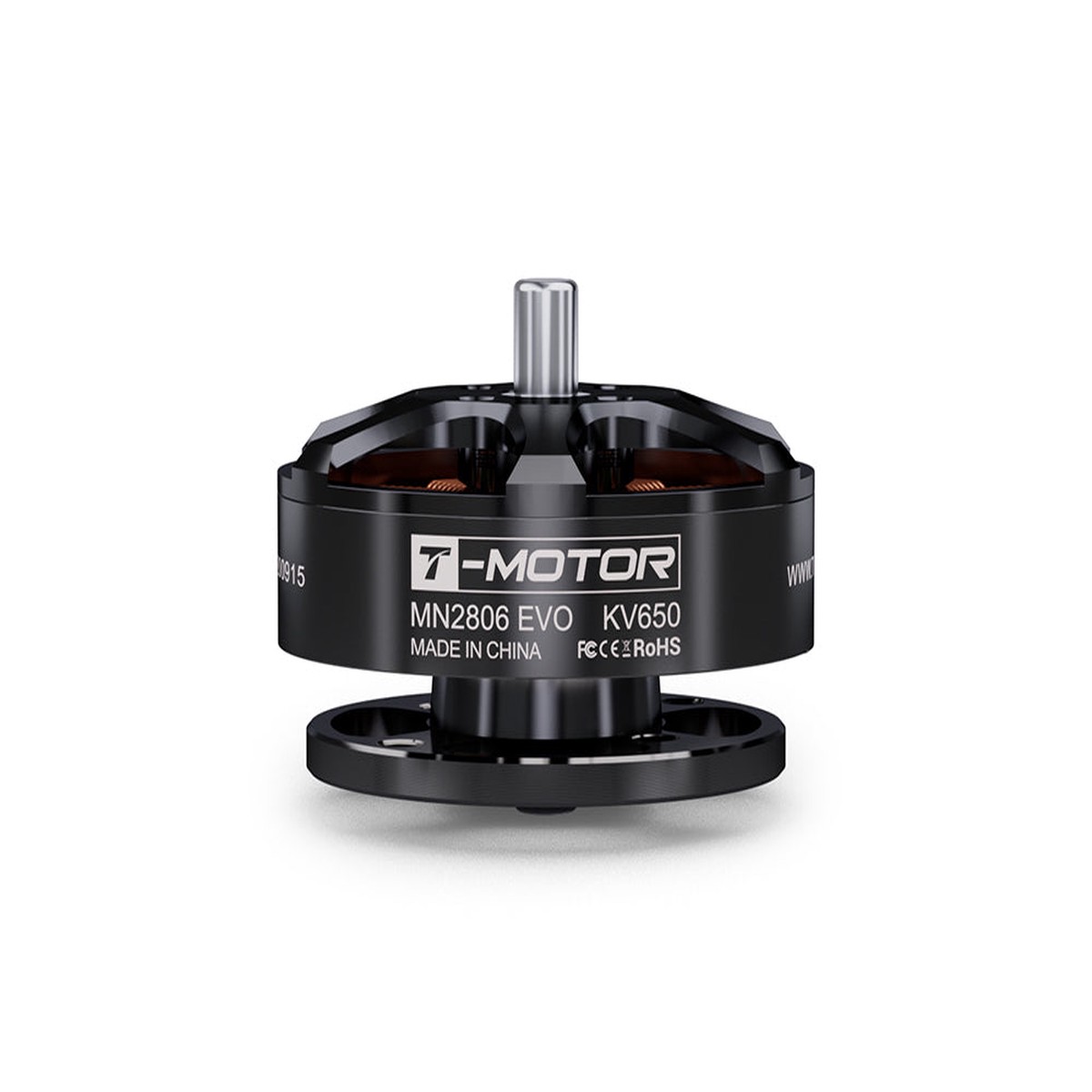

The T-Motor anti-gravity motor features a sleek black housing with clear directional marking for easier installation orientation.

Efficiency curves compare MN2806 EVO+ and MN2806 KV650 setups at 16V using an AIR 40A ESC and P13 prop across the thrust range.

The T-Motor MN2806 EVO KV650 brushless motor features clear labeling and a sturdy, open-frame design for straightforward prop mounting.
