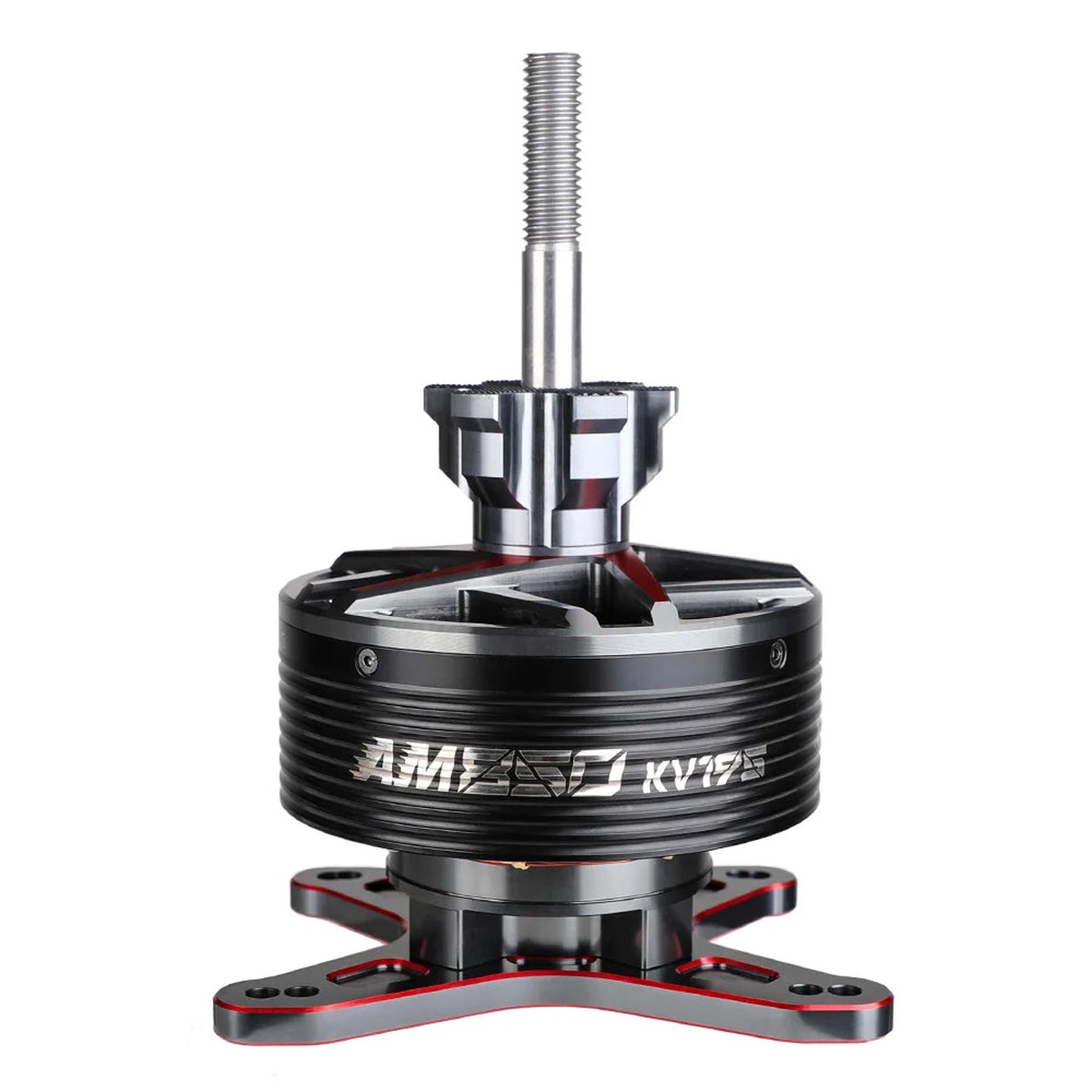

Name: T-Motor AM850 Airplane Brushless Motor for 84"-89" 3D Planes, KV195, 12S, 5770W (60s)
SKU: WKA86610369921
Availability: InStock

Description
Reviews (0)

Overview

T-Motor AM850 is an airplane brushless motor designed for 84″-89″ 3D planes (equivalent engine class shown: 55CC-65CC). It is designed for fast installation using the same mounting plate pattern as common gas engines.

Key Features

Designed for 84″-89″ 3D planes (55CC-65CC class).
Non-destructive replacement concept for convenient installation (same mounting plate for quick installation).
Quick installation details shown: hard lock screw nut; 4.5mm blade seat adjustable gap for accurate fit; quick motor/ESC connection with corresponding plug colors; special motor bracket height shown.

For product selection, compatibility, and setup support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Basic Specifications

Test item	AM850
Motor dimensions	90*145mm
Output shaft diameter	10mm
Configuration	24N28P
Magnet grade	Continuous operation at 180C
Coil insulation test	1000V Dielectric Withstand Test
Dynamic balance requirements standards	5mg
Lead	Enameled Wire*160mm
Connector specification	XT150-M Male Connector, red, blue and black

Technical Specifications

Motor KV	KV195
Rated operating voltage (LiPo)	12S
Max. power (60s)	5770W
Maximum current (60s)	120A
Idle current (15V)	5.7A
Internal resistance	8.5m
Maximum thrust	18.8kg
Weight (incl. cable)	1025g

Recommended Setup

3D aircraft size	84-89 Inch
3D aircraft takeoff weight	<12kg
Recommended ESC	AM216A
Recommended battery	12S 4500-5800mAh
Recommended propeller	AMZ 23*10
Equivalent engine	65CC

Aircraft size (large airframe)	3.0~3.5m
Takeoff weight (large airframe)	<50kg
Recommended ESC (large airframe)	AM216A
Recommended voltage (large airframe)	44.4~50.4V
Recommended propeller (large airframe)	AMZ 23*10
Equivalent engine (large airframe)	80CC

Test Specifications (AM850 KV195 + AMZ 23*10)

Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (Nm)	Thrust (g)	Efficiency (g/W)	Operating temperature (C)
40%	50.14	18.33	919	4052	1.50	4770	5.19	/
45%	50.05	21.79	1090	4340	1.72	5578	5.12	/
50%	49.99	25.80	1290	4618	1.95	6408	4.97	/
55%	49.90	30.73	1534	4912	2.23	7346	4.79	/
60%	49.80	36.37	1811	5226	2.55	8418	4.65	/
65%	49.70	43.11	2143	5555	2.90	9651	4.50	/
70%	49.55	51.65	2559	5888	3.31	11046	4.32	/
75%	49.36	61.59	3040	6224	3.75	12516	4.12	/
80%	49.17	70.73	3477	6530	4.15	13991	4.02	/
85%	48.96	82.84	4056	6850	4.66	15605	3.85	/
90%	48.75	95.67	4664	7129	5.15	17077	3.66	/
100%	48.34	119.44	5773	7571	6.06	18823	3.26	/

Note: The motor temperature refers to the casing temperature measured after running the motor at 100% throttle for 10 minutes. This data was obtained from T-MOTOR’s in-house testing platform and is provided for reference only. T-MOTOR reserves the right of final interpretation.

Whats Included

AM850 Motor*1
Parts Bag*1

Package dimensions

210*162*109mm

Applications

84″-89″ 3D planes (55CC-65CC class)

Details

The T-Motor AM850 is designed for 8489 inch 3D RC planes (55065cc class).

The X-shaped mounting plate uses a matching bolt pattern for quick, non-destructive replacement during installation.

T-Motors calibrated power curve concept is presented for smoother throttle response and controlled 3D maneuvers.

AM850s zero-latency and precise tracking helps keep control inputs responsive for precise flying.

The setup pairs a carbon fiber AMZ 2310 propeller with a T-Motor-style motor and AMZ-216A ESC for a clean, high-power drive system.

Lock-nut mounting, a 4.5mm adjustable blade seat, and color-coded plugs help make motor and ESC installation quicker and cleaner.

The T-Motor AM850 KV195 motor documentation includes key dimensions, electrical specs, and a contents list for installation planning.
