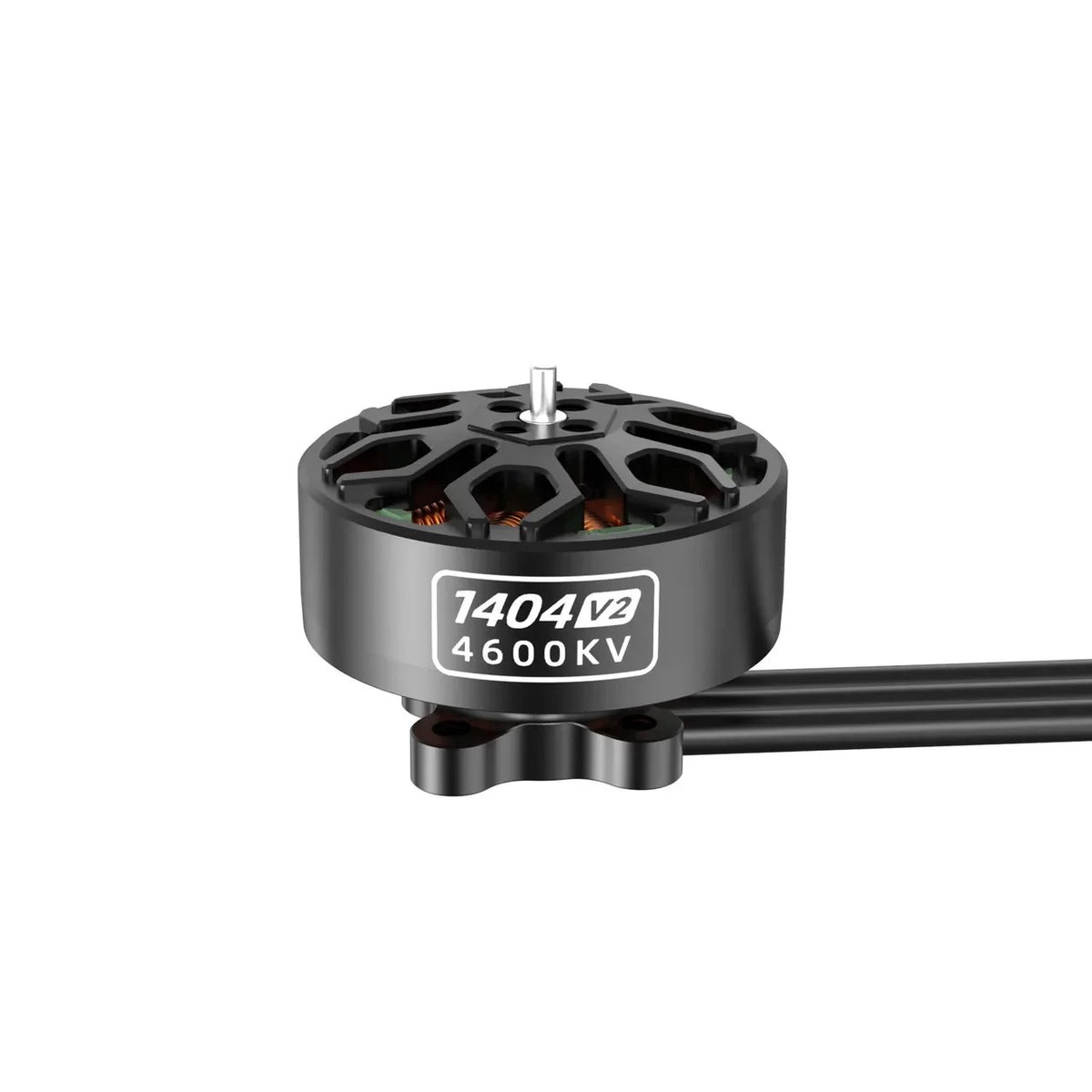

SpeedyBee 1404 V2 Motor 4600KV 4S LiPo for Bee25 2.5inch FPV Drone

Overview

The SpeedyBee 1404 V2 4600KV motor is precision-engineered for 2.5 to 4-inch FPV drones and is the perfect match for the Bee25 2.5″ quad. Built from aerospace-grade aluminum for durability and minimal weight, it delivers a peak thrust of 431.5g, supports 4S LiPo, and maintains efficiency across throttle ranges. When paired with recommended batteries, enjoy up to 10 minutes of flight time on the Bee25.

Key Features

• KV Rating: 4600KV

• Configuration: 9N12P

• Motor Shaft Diameter: 1.5mm

• Wire Spec: 24# 120mm Silicone Wires

• Weight (with wires): 9.12g

• Phase Resistance: 152.34 m

• Max Power: 201.87W

• Max Current: 12.85A

• Voltage: 4S LiPo Compatible

• Propeller Tested: GF3016R

Performance Test Data

Internal Motor Temp: 80.8C
Ambient Temp: 30C

Material & Durability

• Housing: Aerospace-grade aluminum lightweight yet tough.

• Structure: Precision machined for long-lasting stability and performance.

Application

Ideal for 2.5″ ultralight FPV drones, especially the SpeedyBee Bee25. Whether for freestyle or cinematic flight, this motor provides the thrust and stability needed for competitive flying.

Installation Note

Avoid overtightening motor screws during installation to prevent stripping or damage.

SpeedyBee 1404 V2 Motor offers powerful performance for FPV drones.

1404-V2 Motor offers smooth performance. Avoid excessive torque when installing screws for secure fixing.

SpeedyBee 1404 V2 Motor, aerospace-grade aluminum, lightweight, strong, paired with Bee25 for up to 10 minutes flight time.

SpeedyBee 1404 V2 Motor 4600KV, strong magnetic structure, slight noise normal. Dimensions: 9, 15, 18.1.

1404 V2 Motor 4600KV specs: 9N12P, 1.5mm shaft, 9.12g weight. Test data includes KV, voltage, current, thrust, RPM, power, efficiency, and temperature for various throttle settings.
