Product Description

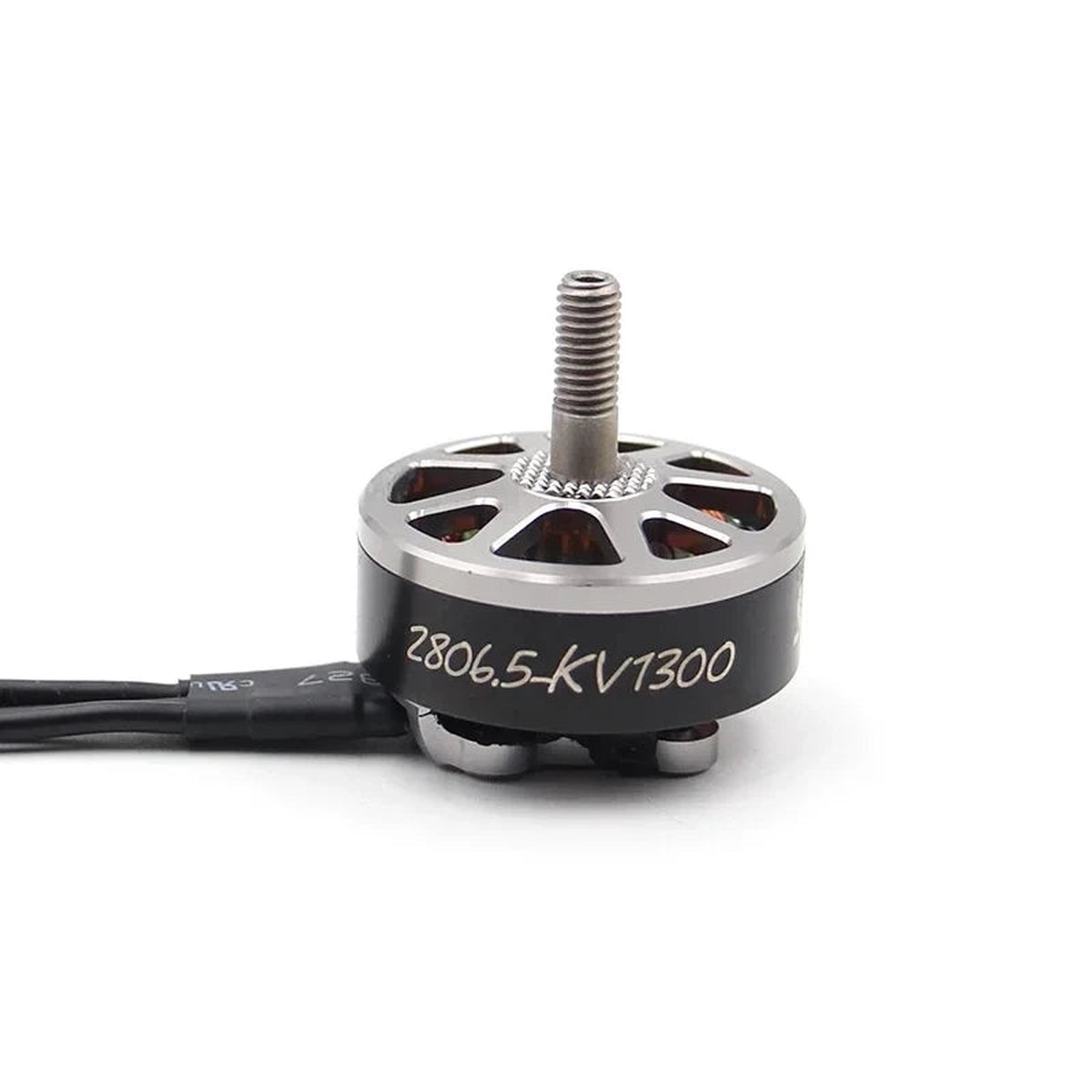

The SPARKHOBBY XSPEED 2806.5 1300KV brushless motor is engineered for high-thrust 7-inch FPV drones, including long-range, freestyle, and X8 cinewhoop setups. Built with a powerful 12N14P stator configuration, 5mm hollow shaft, and rated for 46S LiPo, this motor delivers excellent thrust-to-efficiency balance while maintaining smooth and quiet performance.

Specifications

Parameter	Value
Brand	SPARKHOBBY
Model	XSPEED 2806.5 1300KV
Stator Size	28mm 6.5mm
Configuration	12N14P
Shaft Diameter	5mm (Hollow)
Motor Dimensions	34.5 35.1mm
Weight	47g (with 150mm wire)
Input Voltage	46S LiPo
Idle Current @10V	1.2A
Internal Resistance	58m
Max Continuous Power (6S)	1020W
Max Current (5S)	48A
Max Thrust	2200g
Best Efficiency Range	26A (>86%)
Mounting Hole Pattern	M3 1919mm
Recommended Propeller	Gemfan 7037-3
Suggested Power Setup	6S LiPo

Key Features

High-efficiency motor with excellent power-to-weight ratio
Optimized for 7-inch propellers and 6S setups
CNC aluminum construction with durable 5mm hollow shaft
Ideal for FPV freestyle, long-range, and X8 cinewhoop builds

Package Included

Option 1: SPARKHOBBY 2806.5 1300KV Brushless Motor 1
Option 2: SPARKHOBBY 2806.5 1300KV Brushless Motor 4

SPARKHOBBY RSPEED V3 2806.5 motor: 3-6S voltage, 11.1V operating, 14800rpm speed, 1.8A current, 0.068 resistance, 0.022mH inductance, 1350W power, 1300KV KV value, 18# wire, 56g weight.
