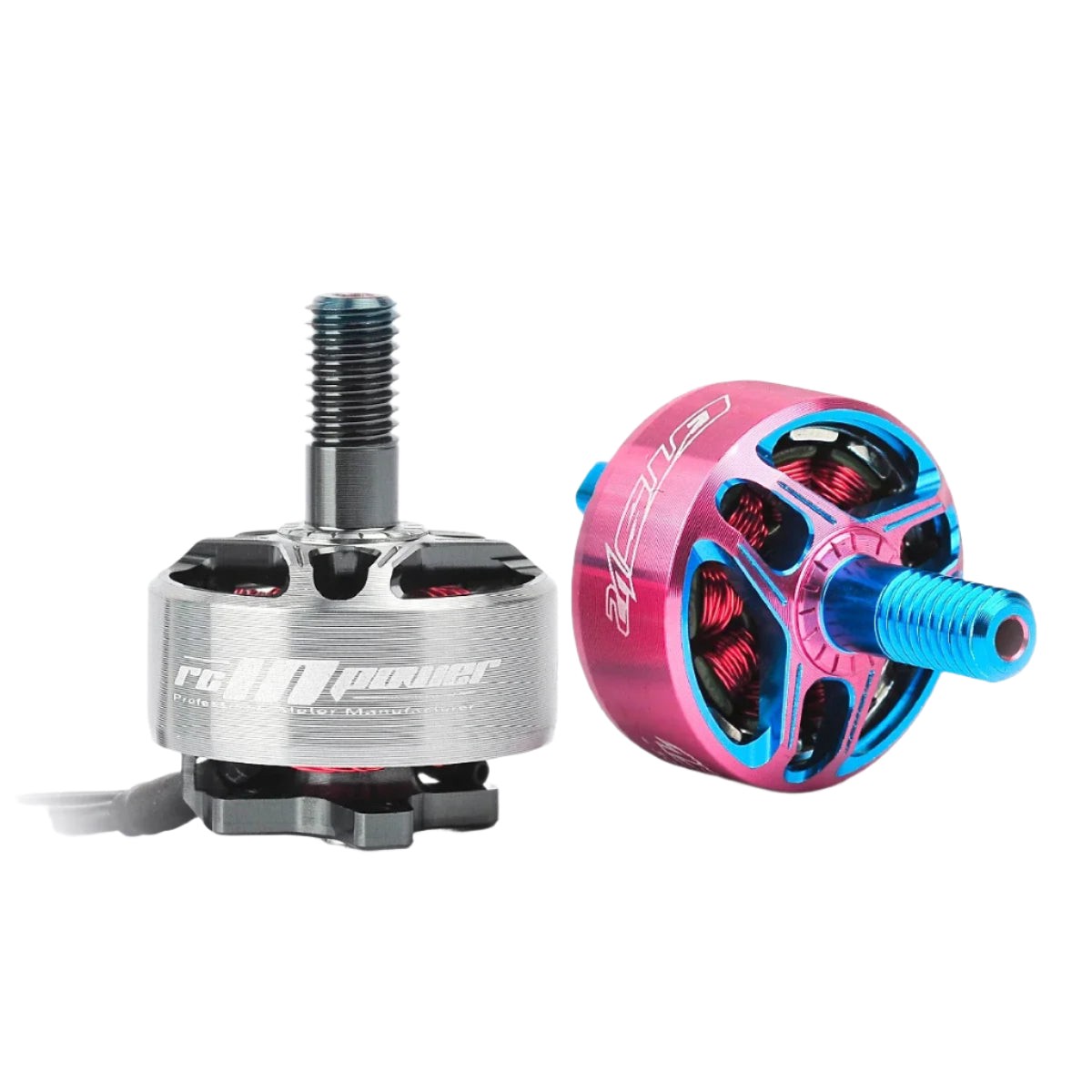

RCINPOWER GTS V2 1506 Brushless Motor 3000KV 6S / 4300KV 4S for FPV Racing Drone

Overview

The RCINPOWER GTS V2 1506 Brushless Motor is designed for high-performance FPV racing drones, offering both 3000KV and 4300KV options to match your preferred setupwhether for smooth 6S efficiency or ultra-responsive 4S punch.

Featuring a 15mm stator, 3mm shaft, and weighing only 15.5g, this motor delivers exceptional thrust and responsiveness. Built with a durable 9N12P configuration and precision-balanced bell, the GTS V2 1506 excels in freestyle, racing, or cinematic cruising.

Model Comparison

Performance Highlights

1506 3000KV (on 6S)

• With GF343 @ 22.2V:
  Thrust: up to 730g
  Power: 273.1W
  Efficiency: 2.673g/W

1506 4300KV (on 4S)

• With GF3052*3 @ 14.8V:
  Thrust: up to 696g
  Power: 331.5W
  Efficiency: 2.099g/W

Key Features

• Available in 3000KV (6S) and 4300KV (4S) variants

• 1506 stator optimized for 34 inch FPV racing drones

• High thrust-to-weight ratio and efficient thermal performance

• Low internal resistance for enhanced acceleration

• Ideal for freestyle, racing, toothpick, and cinewhoop builds

Specifications (Shared)

Package Includes

• 1 GTS V2 1506 Brushless Motor (choose 3000KV or 4300KV)

GTS V2 motor specs: 1506-3000KV, 9N12P, 15mm stator, 21.3×27.6mm size, 15.5g weight, 450W power, 20A current, >83% efficiency, ideal for FPV racing drones.

GTS V2 1506-4300KV motor specs: 9N12P, 15mm stator, 21.3×27.6mm size, 15.5g weight. Max 400W power, 25A current, >83% efficiency. Tested with GF props at various voltages and loads.

RCINPOWER GTS V2 1506 Brushless Motor, 3000KV 6S / 4300KV 4S, for FPV Racing Drone. Professional Motor Manufacturer.
