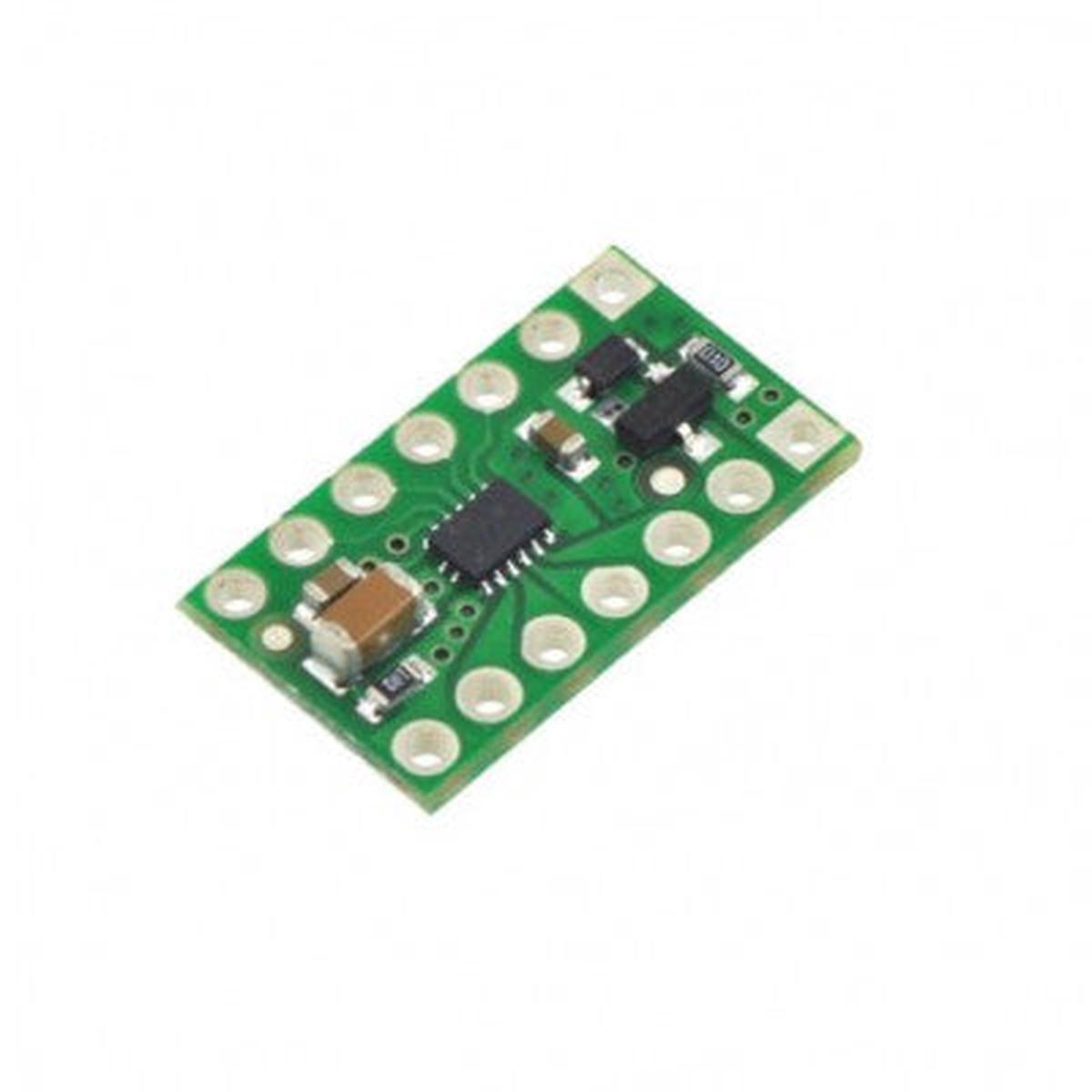

Pololu DRV8835 Dual Motor Driver Carrier

Pololu DRV8835 Dual Motor Driver Carrier

Tiny dual H-bridge motor driver for bidirectional control of two brushed DC motors.

• Motor supply voltage: 0V to 11V
• Logic supply voltage: 2V to 7V
• Output current: 1.2A continuous (1.5A peak) per motor
• Motor outputs: Can be paralleled to deliver 2.4A continuous (3A peak) to a single motor
• Interface modes: Two possible modes – IN/IN or PHASE/ENABLE

Features:

• Dual-H-bridge motor driver
• Motor supply voltage: 0V to 11V
• Logic supply voltage: 2V to 7V
• Output current: 1.2A continuous (1.5A peak) per motor

Texas Instruments DRV8835 is a tiny dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 0 V to 11 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 1.5 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The DRV8835 is a great IC, but its small, leadless package makes it difficult for the typical student or hobbyist to use; our breakout board gives this driver the form factor of a 14-pin DIP package, which makes it easy to use with standard solderless breadboards and 0.1 perfboards. Since this board is a carrier for the DRV8835, we recommend careful reading of the DRV8835 datasheet. The board ships populated with SMD components, including the DRV8835, and adds a FET for reverse battery protection.

* Images are for illustration only; actual product may vary.
