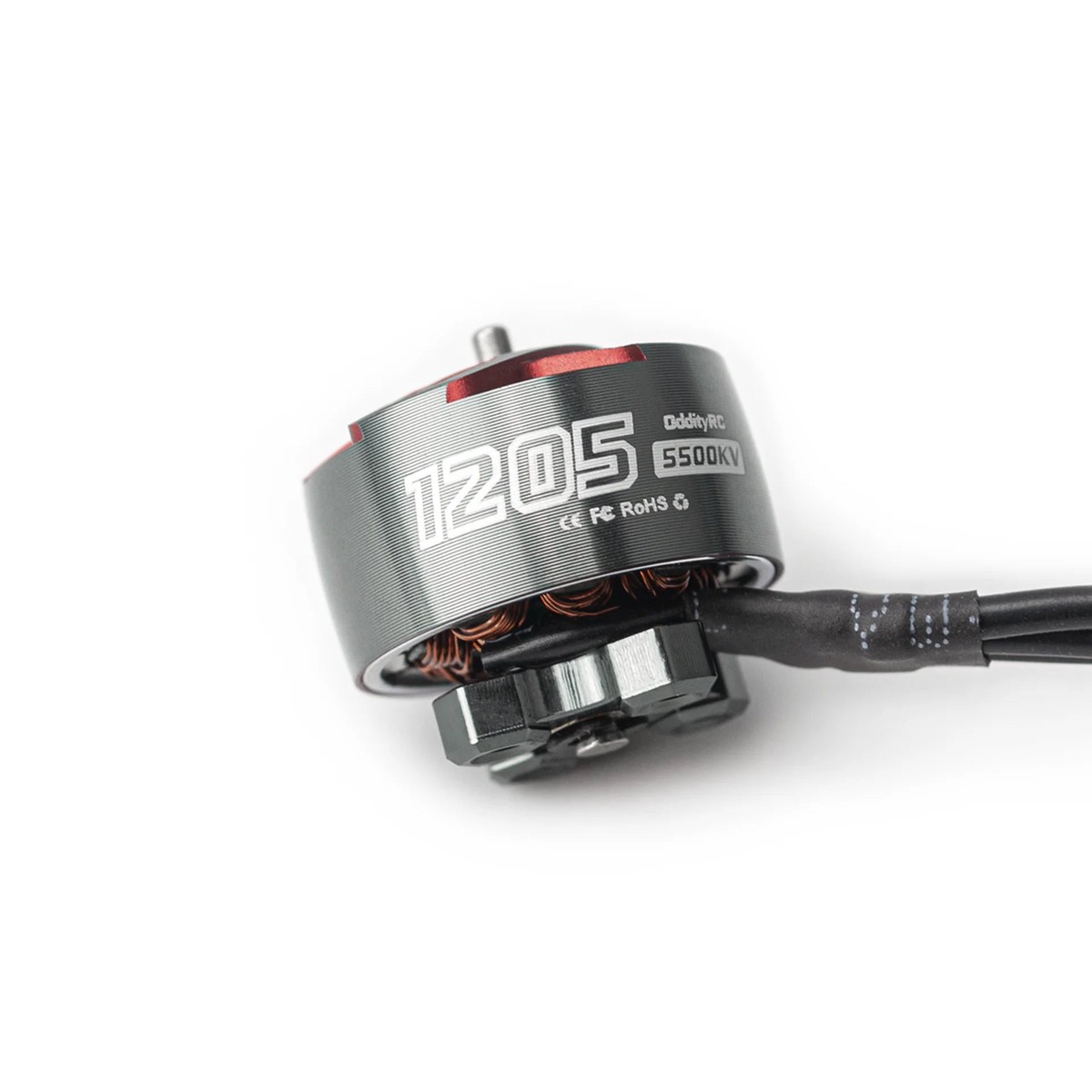

OddityRC Spinnybois 1205 5500KV 4S Brushless Motor Lightweight Durable Micro FPV Motor for 23 Inch Drone

Product Description:

The OddityRC Spinnybois 1205 5500KV Brushless Motor is built for micro-class FPV drones that demand high-speed performance, robust construction, and linear throttle control. With a compact 16.72 13.83 mm body and weighing only 9g (including wire), this motor is ideal for 23 inch racing whoops or cinematic builds running on 4S LiPo (16.8V).

Designed to be crash-resistant, the 1205 features a 7075 aluminum alloy casing, titanium shaft, and anti-loosening structural reinforcements. Its high-efficiency heat-dissipating rotor, premium NMB bearings, and N52H arc magnets ensure performance under high loads and intense flights.

Key Specifications:

Key Features:

• Crash-Resistant Build:
  Durable 7075 aluminum alloy shell and titanium shaft with anti-loosening design.

• Efficient Cooling Design:
  Rotor engineered for enhanced heat dissipation, ideal for aggressive flights.

• Linear and Responsive Throttle:
  Optimized magnetic circuit delivers stable torque and control across the throttle curve.

• High-Quality Components:

  • 240C high-temp copper windings

  • 0.15mm ultra-thin silicon steel stator

  • NMB bearings for smooth rotation and load endurance

Recommended Use:

Perfect for 23 inch FPV whoop builds, micro racers, or lightweight freestyle drones using 4S batteries. Suited for pilots seeking powerful punch-outs, heat stability, and premium component quality in ultra-light setups.

OddityRC 1205 5500KV motor offers powerful, linear throttle response and efficiency.

OddityRC 1205 FPV Motor includes titanium shaft, aluminum rotor, N52H magnet, NMB bearing, and alloy base.

Excellent heat dissipation performance. The new industrial design of the rotor ensures efficient heat dissipation.

Fearless of crash. 7075 Aluminum alloy case, Titanium shaft, and anti-loosening structure ensure durability for OddityRC 1205 FPV Motor.

Specifications for 1205 FPV Motor: 5500KV, N52H magnet, 7075 rotor, NMB bearing, 9N12P config, 16.72×13.83mm size, 1.5mm shaft, 2-3 inch prop, 20A ESC, 16.8V input, single strand copper winding, 9g weight.

OddityRC 1205 FPV Motor drawing, picture, and dimensions: 9.85mm, 16.35mm, 9mm, M2, 16.75mm. Includes detailed technical specifications.

OddityRC 1205 FPV Motor, 5500KV, Spinnybois branding, compact design with red and gray color scheme.

Performance data for Spinnybois 1205-5500KV motor with various props at different throttle percentages, including voltage, current, thrust, input power, and efficiency values.
