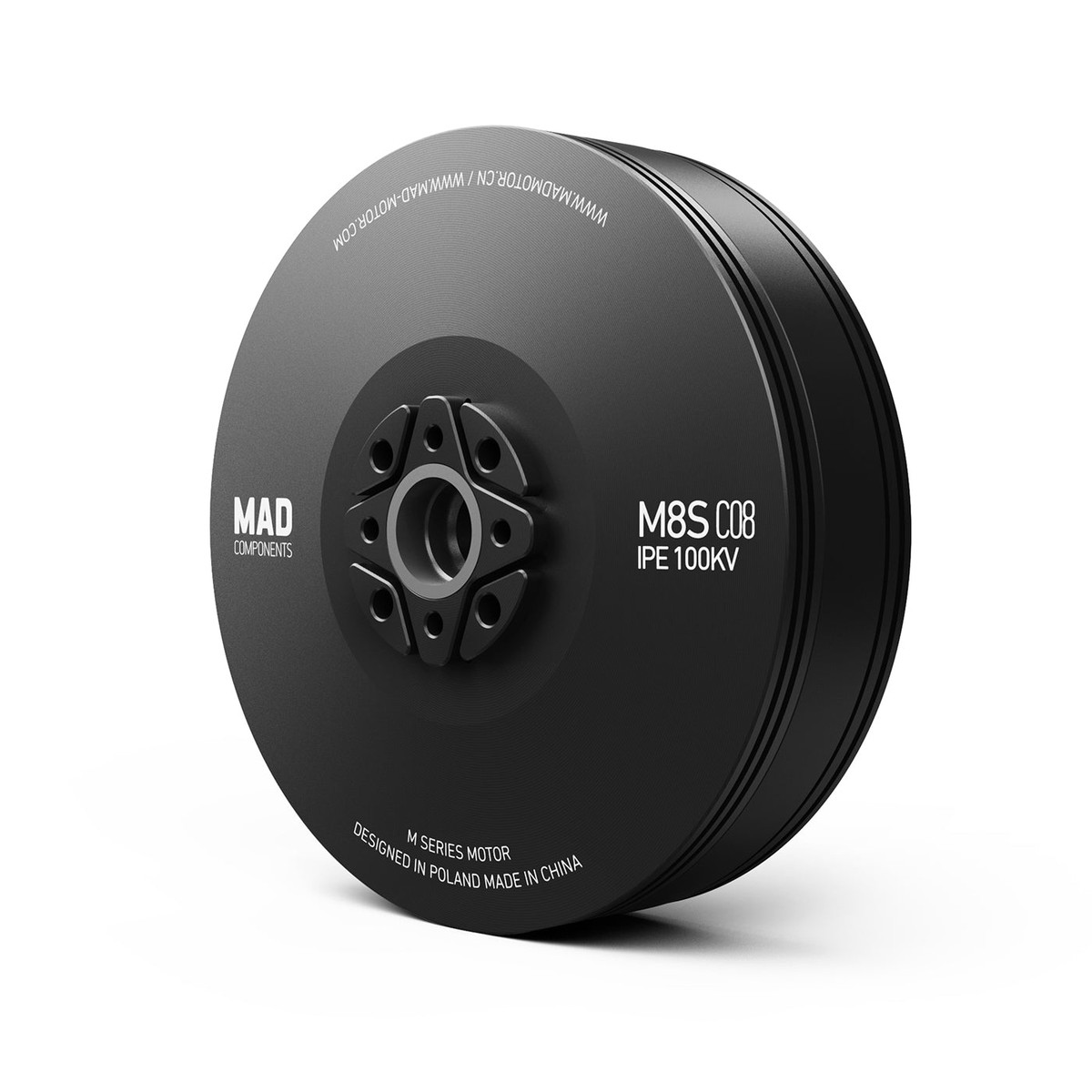

Name: MAD M8S C08 (8108) IPE V1.0 Brushless Drone Motor 100KV 12S, IP45, 8.9kg Max Thrust
SKU: ELAC22173209690
Availability: InStock

Description
Reviews (0)

Overview

MAD M8S C08 (8108) IPE V1.0 is a 100KV brushless drone motor designed for multirotor drones that require stable thrust in mid-weight applications. It is positioned for 34 kg single-axis payloads when used with 2728 inch carbon fiber propellers.

Sustained thrust	2~3 kg
Max thrust	8.9 kg (8.9 kgf)
Support voltage	100KV / 12S
Weight	283 g

Key Features

Delivers up to 8.9 kg maximum thrust per axis
IP45 degree of protection
Centrifugal heat dissipation: YES
Rotor balance: 5 mg; motor balance: 10 mg

Specifications

Motor Data

Motor model	MAD M8S C08 IPE V1.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire degree	180C
Motor size	D: 87.3 28.15 mm	Magnet degree	150C
Degree of protection	IP45	Cable length	80 mm, 16# Awg (Black) silicone
Centrifugal heat dissipation	YES	Rotor balance	5 mg
Propeller mounting holes	D: 20 M34; D: 23 M44	Motor balance	10 mg
Shaft diameter	IN: 12 mm	Motor mounting holes	D: 36 M44
Bearing	EZO 6901ZZ*2	Disruptive test	1000 V

Additional Specifications (Test Sheet)

KV (RPM/V)	100 KV	Nominal voltage	12S lipo battery
No load current	0.8 A / 30 V	Internal resistance	43 m
Motor weight	280 g	Product boxed weight	548 g (150 150 65 mm)
Maximum current	31.8 A	Maximum power	1490 W
Maximum thrust	8.9 kg	Maximum torque	2.86 Nm
Recommended ESC	MAD AMPX 40A (514S)	Recommended propellers	278.1; 288.4; 289.2
UAV take-off weight	13.5 kg (Hexacopter); 17 kg (Octocopter)	Single rotor take-off weight	3 kg ~ 4 kg
Recommended hover thrust	2.0~3.0 kgf	Efficiency	>79%

Performance Data

Analytical graph definitions: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed. Data was measured with an input voltage of 48 V, at a temperature of 25C and sea level; rotational speed was adjusted by the throttle. Maximum thrust may depend on battery level, propeller type, air pressure, and other conditions.

12S + FLUXER PRO 278.1 MATT + AMPX 60A (514S) HV (MAX 85C)

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (Nm)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
30	47.94	1.22	58.5	43.8	0.314	1333	947	74.9	16.2
35	47.91	1.85	88.6	69.9	0.426	1566	1286	78.9	14.5
40	47.88	2.54	121.6	97.7	0.532	1754	1604	80.3	13.2
45	47.85	3.39	162.2	131.8	0.649	1939	1988	81.3	12.3
50	47.81	4.47	213.7	175.6	0.784	2139	2432	82.2	11.4
55	47.73	5.86	279.7	229.8	0.934	2350	2900	82.2	10.4
60	47.69	7.45	355.3	295.3	1.106	2550	3431	83.1	9.7
65	47.63	9.31	443.4	369.0	1.268	2740	3987	83.2	9.0
70	47.56	11.29	537.0	445.4	1.460	2913	4518	82.9	8.4
75	47.49	13.45	638.7	526.0	1.634	3074	5039	82.4	7.9
80	47.40	15.54	741.3	608.1	1.795	3235	5510	82.0	7.4
85	47.30	18.46	873.2	709.3	2.004	3380	6166	81.2	7.1
90	47.21	21.16	999.0	803.2	2.168	3538	6670	80.4	6.7
95	47.08	24.53	1154.9	913.5	2.373	3676	7286	79.1	6.3
100	46.93	28.92	1357.2	1053.1	2.604	3862	8015	77.6	5.9

12S + FLUXER PRO 288.4 MATT + AMPX 60A (514S) HV (MAX 92C)

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (Nm)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
30	47.97	1.21	58.0	45.2	0.325	1328	1039	77.9	17.9
35	47.93	1.89	90.6	72.7	0.445	1561	1438	80.2	15.9
40	47.89	2.57	123.1	100.6	0.550	1747	1781	81.7	14.5
45	47.87	3.48	166.6	137.2	0.678	1933	2199	82.4	13.2
50	47.82	4.60	220.0	183.0	0.821	2128	2675	83.2	12.2
55	47.74	6.04	288.3	239.0	0.976	2338	3167	82.9	11.0
60	47.68	7.65	364.8	305.7	1.152	2534	3765	83.8	10.3
65	47.62	9.56	455.2	381.1	1.336	2724	4409	83.7	9.7
70	47.54	11.59	551.0	460.4	1.518	2896	4989	83.6	9.1
75	47.48	13.60	645.7	535.5	1.669	3064	5468	82.9	8.5
80	47.40	16.15	765.5	630.4	1.872	3216	6082	82.4	7.9
85	47.32	18.78	888.7	724.5	2.053	3370	6690	81.5	7.5
90	47.19	21.74	1025.9	825.9	2.243	3516	7381	80.5	7.2
95	47.05	25.03	1178.4	933.3	2.435	3660	7914	79.2	6.7
100	46.93	29.57	1392.4	1077.8	2.681	3839	8671	77.4	6.2

12S + FLUXER PRO 289.2 MATT + AMPX 60A (514S) HV (MAX 97C)

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (Nm)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
30	47.95	1.35	64.7	48.8	0.354	1316	1100	75.4	17.0
35	47.91	2.08	99.7	78.5	0.484	1548	1524	78.7	15.3
40	47.91	2.84	136.1	109.9	0.605	1734	1907	80.7	14.0
45	47.87	3.83	183.3	148.4	0.740	1915	2356	81.0	12.9
50	47.83	4.99	238.5	195.7	0.886	2109	2801	82.1	11.7
55	47.73	6.46	308.3	255.2	1.054	2312	3327	82.8	10.8
60	47.69	8.27	394.4	327.2	1.248	2504	3957	83.0	10.0
65	47.61	10.22	486.6	403.4	1.431	2692	4515	82.9	9.3
70	47.53	12.49	593.6	488.7	1.633	2858	5162	82.3	8.7
75	47.47	14.80	702.6	574.2	1.815	3021	5661	81.7	8.1
80	47.38	17.46	827.3	667.4	2.008	3174	6297	80.7	7.6
85	47.25	20.24	956.5	765.6	2.206	3314	6861	80.0	7.2
90	47.14	23.45	1105.4	871.4	2.412	3450	7505	78.8	6.8
95	47.03	26.80	1260.4	976.3	2.594	3594	8078	77.5	6.4
100	46.88	31.79	1490.3	1121.3	2.857	3748	8932	75.2	6.0

Drawing and Mount Holes

Motor mounting holes	36-M44
Propeller mounting holes	23-M44; 20-M34
Outer diameter	87.3
Body height dimensions	25.65 and 2.5 (total height shown as 28.15 mm in motor size)
Dimension shown	29
Adapter dimensions	10; 11.6; 14.5
Plate/part dimensions	6; 20-3.24; thickness 3 and 0.8

Whats Included

Motor 1
Propeller plate 1
Locating pin 1
3.5 mm bullet connector 3
Heat shrinkable tube 3
M410 motor screws 4
M314 propeller screws 4
Sticker 2

Applications

Multirotor drones requiring consistent lift in the 34 kg payload range
Systems using 12S power and large propellers (2728 inch class)

For compatibility questions (ESC/prop selection) or bulk purchase support, contact support@ or visit https:///.

Details

MAD M8S C08 (8108) motor dimensions and the 36 mounting pattern with M4 and M3 hole layouts help confirm fit before installation.

The MAD M8S C08 (8108) motor package includes a propeller plate, locating pin, bullet connectors with heat shrink, and mounting screws for installation.

MAD M8S C08 (8108) IPE V1.0 brushless motor spec sheet lists 100KV, 815S support, 283g weight, and efficiency data charts.
