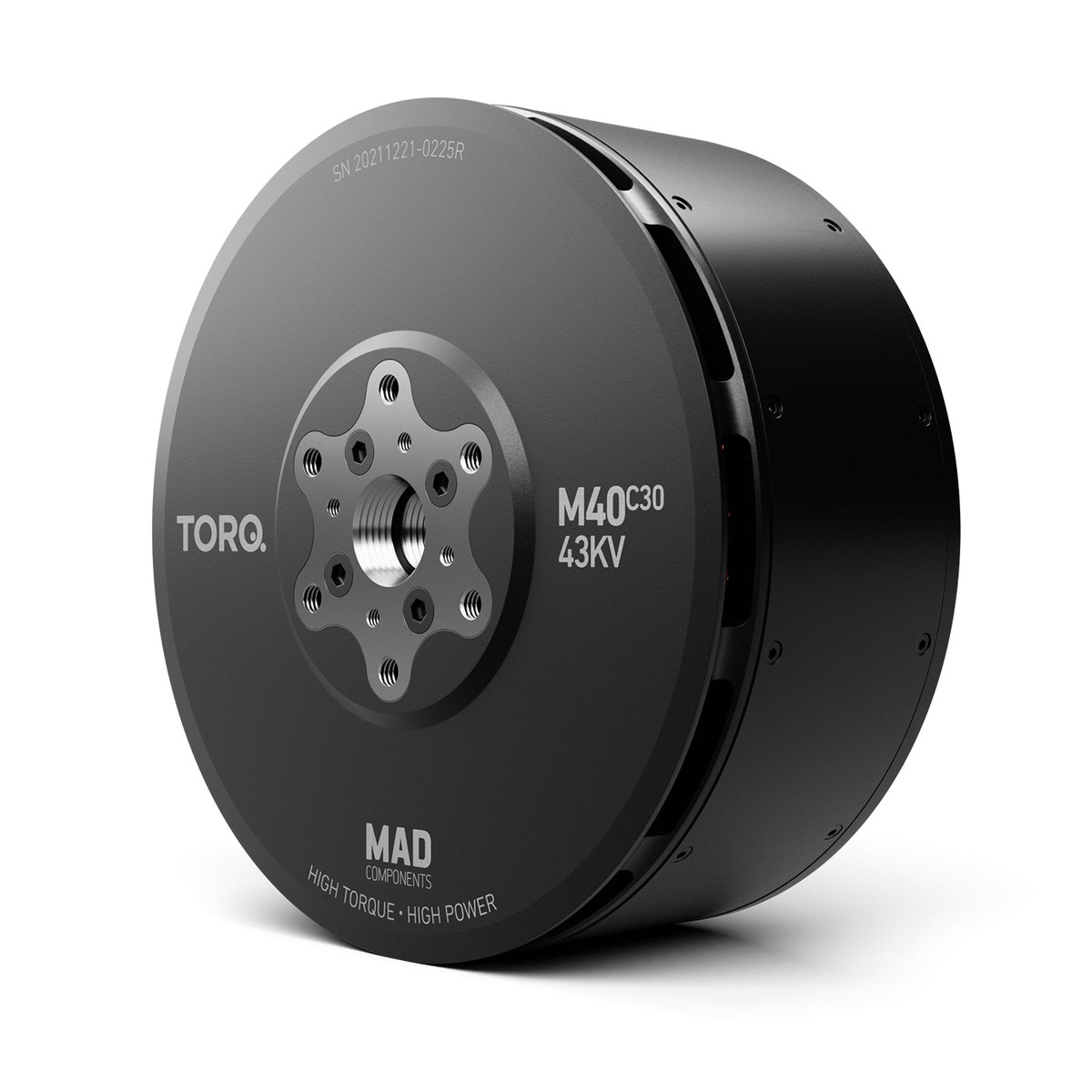

MAD M40C30 PRO IPE Brushless Drone Motor (10KV/43KV) 3460g IP45 for 47.554in Propellers

MAD M40C30 PRO IPE Brushless Drone Motor (10KV/43KV) 3460g IP45 for 47.554in Propellers

MAD M40C30 PRO IPE Brushless Drone Motor (10KV/43KV) 3460g IP45 for 47.554in Propellers

Original price was: $1,603.50.Current price is: $146.00.
  • SKU:A2380047930
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

MAD M40C30 PRO IPE is an ultra-heavy-duty brushless drone motor designed for high-load VTOL and cargo UAV platforms. It is positioned for use with 47.554 inch carbon fiber propellers and is also used in electric paramotor and PAV (Personal Aerial Vehicle) system builds.

Key Features

  • Thrust (from provided data): rated hover thrust 2035 kgf (10KV) / 2030 kgf (43KV); maximum thrust up to 73 kgf (10KV) / 80 kgf (43KV)
  • Optimized weight: 3460 g
  • Efficiency (label): >80% (10KV) / >84% (43KV)
  • Motor protection rating: IP45
  • Centrifugal heat dissipation: YES
  • Oversized locating bearings (for reduced resonance and gyroscopic effects)

Specifications

Motor Data (General)

Motor Model MAD M40C30 IPE V3.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220C
Motor Size D:151.4 x 81 mm Magnet Degree 180C
Degree of Protection IP45 Cable Length 150 mm (extended enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance 20 mg
Propeller Mounting Holes D:50 M6 x 6; D:32 M4 x 4 Motor Balance 30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:65 M6 x 6
Bearing NSK 6818ZZCM Disruptive test 500 V

Drawing / Mounting Dimensions (from drawing)

Outer diameter 151.4
Body length 81
Additional dimension labels 8; 90; 4; 25; 22
Motor mounting holes 65-M6 x 6
Propeller mounting holes 50-M6 x 6; 32-M4 x 4
Hole pattern label 50-6.2 x 6

10KV Variant (MAD M40C30 IPE PRO 10KV)

  • Label: ENERGY EFFICIENT 10KV (Industry Professional Edition)
  • Recommended hover thrust: 2035 kgf
  • Maximum thrust: 73 kgf
  • Optimized weight: 3460 g
  • Efficiency (label): >80%
  • Test banner setup: FLUXER PRO 54×24 GLOSSY; Recommended ESC: FOC IGBT 30A (80440V)
  • Label: 400V MAX; 132C
RPM/V 10 KV Nominal Voltage 100S lipo battery
No Load Current 1.8A / 50V Internal resistance 387m
Motor Weight 3460 g Product Boxed Weight 4616g (260 x 210 x 120 mm)
Maximum Current 41.6 A Maximum Power 16532W
Maximum thrust 73 kg Maximum Torque 47.4 Nm
Recommended ESC FOC IGBT 30A (80440V) Recommended Propellers 54×24
UAV take-off weight 100S-54″ / 100kg–Quadcopter; 150kg–Hexacopter; 200kg–Octocopter Single rotor take-off weight 20kg ~ 35kg

10KV Test Data Table (400 V input)

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [kgf] Efficiency [%] Efficiency [gf/W]
25 398.3 1.58 629.3 430.3 4.840 849 7 68.4 11.7
30 398.4 2.46 980.1 753.2 7.010 1026 11 76.8 11.0
35 397.9 3.92 1559.8 1223.7 9.730 1201 15 78.5 9.7
40 397.8 5.88 2339.1 1839.2 12.820 1370 20 78.6 8.6
45 397.6 7.93 3153.0 2584.9 16.070 1536 25 82 8.0
50 397.6 10.4 4135.0 3463.0 19.510 1695 31 83.7 7.4
55 397.7 13.47 5357.0 4479.1 23.070 1854 36 83.6 6.7
60 397.5 17.23 6848.9 5701.4 27.100 2009 42 83.2 6.2
65 397.7 21.7 8630.1 7154.5 31.630 2160 49 82.9 5.7
70 397.5 26.8 10653.0 8787.6 36.390 2306 57 82.5 5.3
75 397.5 33.13 13169.2 10609.3 41.470 2443 64 80.6 4.9
80 397.3 40.37 16039.0 12565.8 46.600 2575 72 78.3 4.5
85 397.4 41.6 16531.8 12870.0 47.360 2595 73 77.8 4.4

10KV test note (verbatim meaning): Data are theoretical values when input voltage is 400 V (for reference). At 25C with no additional cooling device: current over 42 A is non-working zone; 1042 A is short-term (about 1030 s) working zone; below 10 A is sustainable working zone. Control motor running time based on ambient temperature and heat dissipation conditions.

43KV Variant (MAD M40C30 IPE PRO 43KV)

  • Label: ENERGY EFFICIENT 43KV (Industry Professional Edition)
  • Recommended hover thrust: 2030 kgf
  • Maximum thrust: 80 kgf
  • Optimized weight: 3460 g
  • Efficiency (label): >84%
  • Test banner setup: FLUXER PRO 47.5×17.4 GLOSSY; Recommended ESC: AMPX 300A (1224S)
  • Label: 24S MAX; 125C
RPM/V 43 KV Nominal Voltage 24S lipo battery
No Load Current 4.4A / 30V Internal resistance 20.3m
Motor Weight 3460 g Product Boxed Weight 4616g (260 x 210 x 120 mm)
Maximum Current 238 A Maximum Power 22744W
Maximum thrust 80 kg Maximum Torque 47.7 Nm
Recommended ESC MAD AMPX 300A (1224S) Recommended Propellers 47.5×17.4
UAV take-off weight 24S-47.5″ / 100kg–Quadcopter; 150kg–Hexacopter; 200kg–Octocopter Single rotor take-off weight 20kg ~ 30kg

43KV Test Data Table (96 V input)

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 97.62 8.85 863.9 689.4 5.255 1253 8845 79.8 10.2
35 97.64 13.91 1358.2 1104.2 7.193 1466 12135 81.3 8.9
40 97.51 19.58 1909.2 1647.7 9.468 1662 15887 86.3 8.3
45 97.53 27.81 2712.3 2294.6 11.884 1844 20028 84.6 7.4
50 97.37 36.2 3524.8 3038.4 14.322 2026 24035 86.2 6.8
55 97.34 48.61 4731.7 4031.4 17.327 2222 28990 85.2 6.1
60 97.15 62.96 6116.6 5254.1 20.751 2418 34384 85.9 5.6
65 97.05 78.27 7596.1 6532.6 23.995 2600 39773 86 5.2
70 96.83 92.43 8950.0 7616.4 26.259 2770 45158 85.1 5.0
75 96.73 104.38 10096.7 8562.0 27.859 2935 49681 84.8 4.9
80 96.54 122.47 11823.3 9836.9 30.412 3089 55621 83.2 4.7
85 96.27 154.38 14862.2 12201.8 36.021 3235 62008 82.1 4.2
90 96.04 182.54 17531.1 14095.0 39.789 3383 66104 80.4 3.8
95 95.73 211.35 20232.5 15943.2 43.527 3498 73163 78.8 3.6
100 95.62 237.86 22744.2 17899.7 47.656 3587 80125 78.7 3.5

43KV test note (verbatim meaning): Data are theoretical values when input voltage is 96 V (for reference). At 25C with no additional cooling device: current over 238 A is non-working zone; 60238 A is short-term (about 1030 s) working zone; below 60 A is sustainable working zone. Control motor running time based on ambient temperature and heat dissipation conditions.

Recommended Configurations

  • 43KV: ESC AMPX 300A (1224S); propeller FLUXER PRO 47.5×17.4 (glossy)
  • 35KV: propeller HB30-54×24
  • 10KV + FOC ESC combo: propellers HB30-54×24; HB30-CB2 47.5×18.5; HB30 47.5×17.4; HB30-52×19

Whats Included

  • Motor x1
  • Propeller Plate x1
  • Locate Pin x1
  • 8.0mm Bullet Connector x3
  • Heat Shrinkable Tube x3
  • M6*25 Motor Screws x6
  • M6*35 Prop Adapter Screws x6
  • M6*40 Propeller Screws x6
  • Sticker x2

Applications

  • Unmanned cargo drones and VTOL platforms
  • Large-scale multirotor UAV systems
  • Electric paramotor and PAV system builds

For compatibility questions (ESC, propeller, wiring, or integration), contact support at [email protected] or visit https://rcdrone.top/.

Details

MAD M40C30 PRO IPE brushless drone motor dimensions and the 50 mounting pattern help confirm fitment on your frame and motor mount.

MAD M40C30 PRO IPE brushless drone motor includes a propeller plate, locate pin, 8.0mm bullet connectors, heat shrink, screws, and stickers for installation.

The MAD M40C30 PRO IPE brushless motor is rated at 10KV and includes a performance chart with key specs such as 400V max.

The MAD M40C30 PRO IPE brushless motor is listed at 43KV with 24S support and a 2030 kgf thrust range for heavy-lift drone builds.
