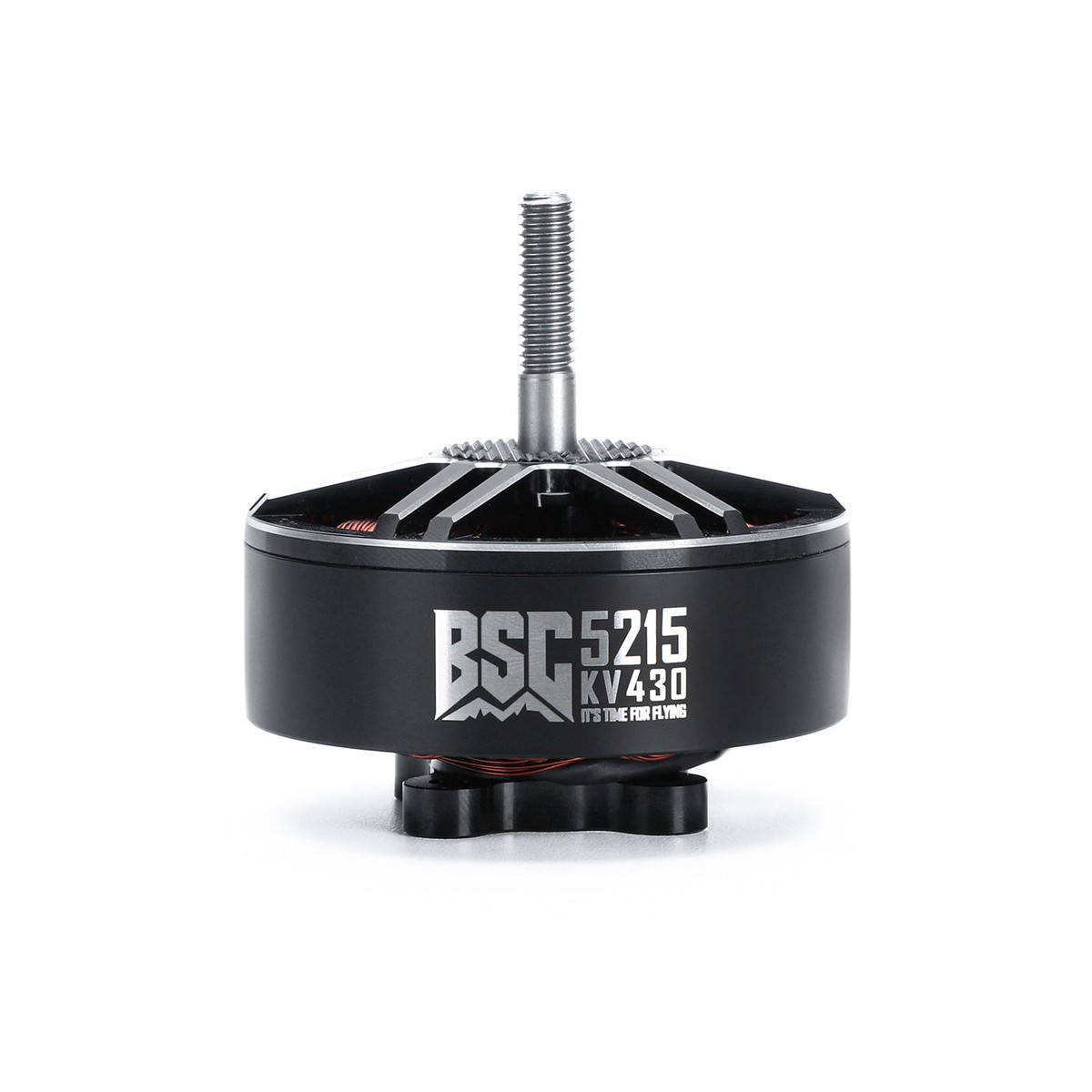

Name: MAD BSC5215 430KV FPV Drone Brushless Motor, 12N14P, 60.8x62.5mm, 8S Test Data
SKU: A2380047971
Availability: InStock

Description
Reviews (0)

Overview

MAD BSC5215 V1.0 is a BSC series FPV drone motor designed as an entry-level brushless motor, targeting a practical balance of cost effectiveness and quality for both new builders and experienced pilots.

Key Features

430KV configuration (BSC5215)
12N14P (12N14P) pole configuration
Rotor balance: 5 mg
600mm 14# Awg(Black) silicone cable
Propeller mounting: M6 nut
Motor mounting: D:30 M44

For compatibility questions (prop/ESC/battery pairing) or bulk purchasing support, contact https://rcdrone.top/ or email [email protected].

Specifications

Motor Data

Motor Model	MAD BSC5215 V1.0
Number of pole pairs	12N14P
Motor Size	D:60.8×62.5mm
Rotor Balance	5 mg
Propeller Mounting Holes	M6 Nut
Motor Mounting Holes	D:30 M44
Shaft Diameter	IN: 6 mm
Cable Length	600mm 14# Awg(Black) silicone

Drawing and Mount Hole Notes (from drawing)

Overall length	62.5
Body diameter	60.8
Mounting pattern	30-M4X4
Additional markings	M3X4, 12, 15, 26, M6

Performance Specifications (test sheet)

RPM/V	430 KV
No Load Current	2.4 A / 15 V
Maximum Current	83.2 A
Internal resistance	20 m
Maximum thrust	8.37 kg
Maximum Power	2538 W
Motor Weight	336 g
Product Boxed Weight	350 g

Test Conditions and Curve Labels (from test sheet)

Analytical Graph labels: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed
Measured at input voltage: 48 V; temperature: 25C; sea level (rotational speed adjusted by throttle)
Note: Maximum thrust may depend on battery level, propeller type, air pressure, and other conditions

8S Test Data (MAD BSC5215 430KV, HQ1393)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	RPM	Thrust [gf]	Efficiency [gf/W]
30	32.5	3.56	115.5	3466	886	7.7
35	32.5	5.01	162.7	4081	1178	7.2
40	32.4	6.64	215.0	4597	1470	6.8
45	32.3	8.81	284.8	5082	1822	6.4
50	32.3	10.99	354.5	5583	2124	6.0
55	32.2	15.04	484.3	6114	2501	5.2
60	32.1	19.02	610.2	6647	2976	4.9
65	31.9	23.32	744.8	7160	3396	4.6
70	31.8	29.58	941.1	7608	3908	4.2
75	31.7	34.47	1092.7	8067	4301	3.9
80	31.5	41.74	1313.8	8444	4867	3.7
85	31.4	47.94	1503.4	8889	5257	3.5
90	31.2	54.42	1698.1	9313	5586	3.3
95	31.0	63.15	1955.7	9644	6211	3.2
100	30.7	73.91	2266.5	10048	6776	3.0

MAX: 55C

8S Test Data (MAD BSC5215 430KV, HQ1573)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	RPM	Thrust [gf]	Efficiency [gf/W]
30	32.5	3.71	120.6	3437	1129	9.4
35	32.5	5.47	177.5	4052	1516	8.5
40	32.4	7.33	237.6	4571	1847	7.8
45	32.3	9.77	315.8	5043	2309	7.3
50	32.2	12.51	403.3	5535	2702	6.7
55	32.2	16.26	523.0	6010	3290	6.3
60	32.0	20.77	665.6	6518	3866	5.8
65	31.9	26.70	851.2	7000	4414	5.2
70	31.7	32.55	1033.2	7439	5015	4.9
75	31.6	38.32	1210.6	7841	5544	4.6
80	31.4	44.58	1399.6	8226	6048	4.3
85	31.2	53.49	1669.3	8564	6700	4.0
90	31.0	61.67	1913.6	8906	7248	3.8
95	30.8	71.49	2200.4	9187	7789	3.5
100	30.5	83.18	2538.7	9575	8370	3.3

MAX: 85C

Drawing and Mount Holes

430KV

Details

MAD BSC5215 brushless motor dimensions show a 60.8mm body diameter, 62.5mm height, and M3/M4 mounting holes for fitting and installation.

MAD BSC5215 430KV motor test data lists 8S performance with charts and tables, including 336 g weight and up to 8.37 kgf available thrust.
