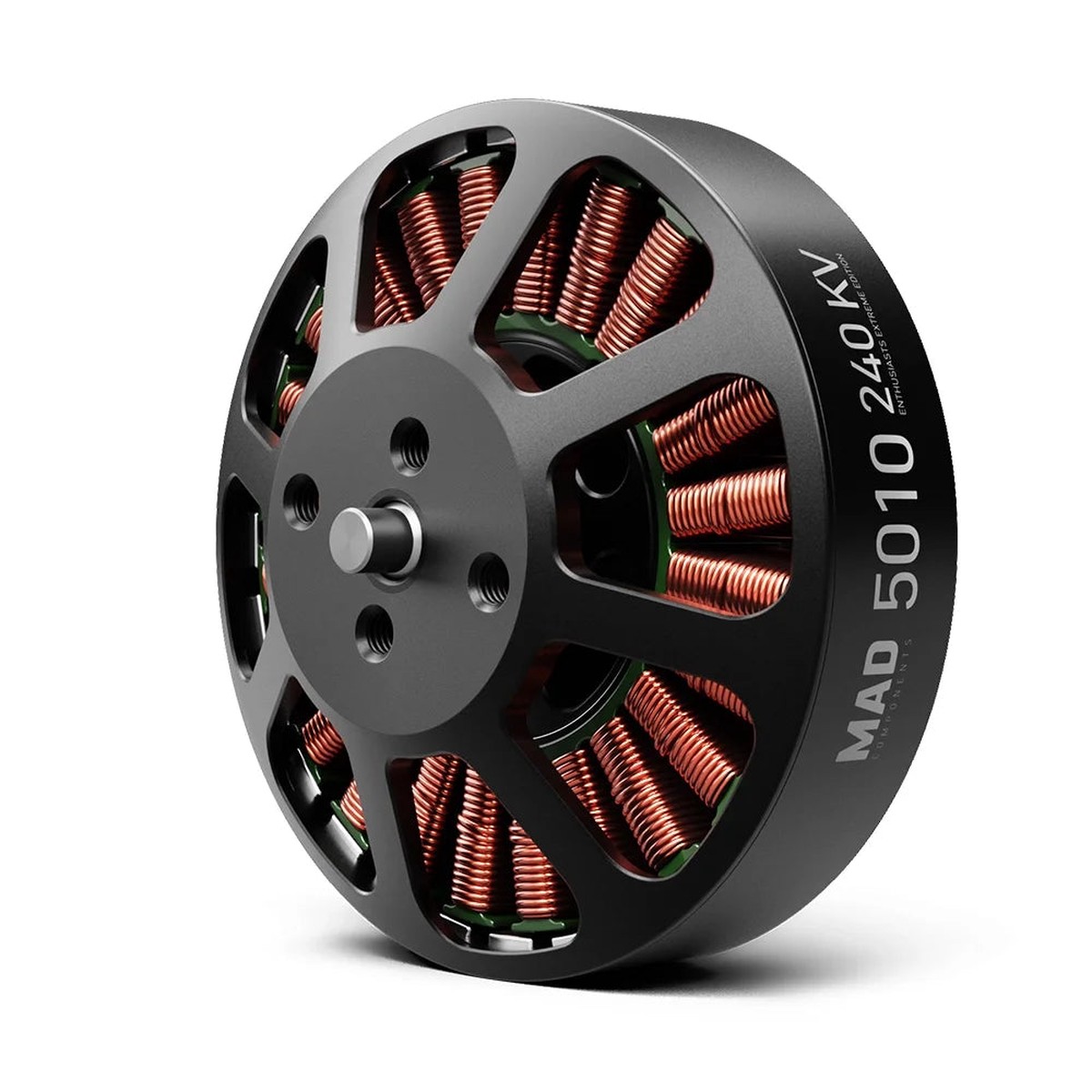

MAD 5010 EEE Drone Motor – KV200 KV240 KV310 KV370 Brushless Motor For RC Drone UAV Quadcopter Hexcopter Octcopter Outrunner motor

MAD 5010 EEE Drone Motor – KV200 KV240 KV310 KV370 Brushless Motor For RC Drone UAV Quadcopter Hexcopter Octcopter Outrunner motor

MAD 5010 EEE Drone Motor – KV200 KV240 KV310 KV370 Brushless Motor For RC Drone UAV Quadcopter Hexcopter Octcopter Outrunner motor

Original price was: $111.90.Current price is: $55.95.
  • SKU:WKA86610369377
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

MAD 5010 EEE Drone Motor Specifications

Motor Model
 MAD 5010 EEE V2.0
 Number of pole pairs
 14
Stator
 Anticorrosive
 Varnished wire Degree
 180C
Motor Size
 D:56 32.7 mm
 Magnet Degree
 150C
Degree of Protection
 Rain protection Cable Length
 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation
 Independent Rotor Balance
 5 mg
Propeller Mounting Holes
 D:12 M32, D:18 M32
 Motor Balance
 10 mg
Shaft Diameter
 IN: 5 mm
 Motor Mounting Holes
 D:25 M34, D:30 M34
Bearing EZO 685ZZ*1 / 695ZZ*1
 Disruptive test
 500 V

MAD 5010 EEE 200KV

Specifications
RPM/V 200 KV
Nominal Voltage 6-12S lipo battery
No Load Current 0.69A / 20V
Internal resistance 106m
Motor Weight 162.9 g
Product Boxed Weight 323g (110 x 110 x 50 mm)
Maximum Current 22.3 A
Maximum Power 1029 W
Maximum thrust 5.2 kg
Maximum Torque 1.09 Nm
Recommended ESC AMPX PRO 40A (2~6S)
AMPX 40A (5-14S) HV
Recommended Propellers 16×5.4, 17×5.8, 22×6.6, 22×7.0, 24×7.2
UAV take-off weight 12S-17″/7kg–Quadcopter
10.5kg–Hexacopter 14kg–Octocopter
Single rotor take-off weight 1.5kg ~ 2kg

MAD 5010 EEE 240KV

Specifications
RPM/V 240 KV
Nominal Voltage 6S lipo battery
No Load Current 0.76A / 20V
Internal resistance 94.6m
Motor Weight 161 g
Product Boxed Weight 322g (110 x 110 x 50 mm)
Maximum Current 28.9 A
Maximum Power 681W
Maximum thrust 4.1 kg
Maximum Torque 1.23 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S)
Recommended Propellers 20×6.0, 21×6.3, 22×6.6, 22×7.0
UAV take-off weight 6S-22″/5kg–Quadcopter
7.5kg–Hexacopter 10kg–Octocopter
Single rotor take-off weight 1.5kg ~ 2kg

MAD 5010 EEE 310KV

Specifications
RPM/V 310 KV
Nominal Voltage 6S lipo battery
No Load Current 1.25A / 20V
Internal resistance 51m
Motor Weight 162 g
Product Boxed Weight 324g (110 x 110 x 50 mm)
Maximum Current 46.8 A
Maximum Power 991W
Maximum thrust 5.2 kg
Maximum Torque 1.4 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S)
Recommended Propellers 20×6.0, 21×6.3, 22×6.6, 22×7.0
UAV take-off weight 6S-20″/7kg–Quadcopter
10.5kg–Hexacopter 14kg–Octocopter
Single rotor take-off weight 2kg ~ 2.5kg

MAD 5010 EEE 370KV

Specifications
RPM/V 370 KV
Nominal Voltage 6S lipo battery
No Load Current 1.56A / 20V
Internal resistance 38m
Motor Weight 162.2 g
Product Boxed Weight 324g (110 x 110 x 50 mm)
Maximum Current 44 A
Maximum Power 1019W
Maximum thrust 4.9 kg
Maximum Torque 1.12 Nm
Recommended ESC MAD AMPX PRO 40A (2~6S)
Recommended Propellers 17×5.8, 18×6.1, 18×5.7
UAV take-off weight 6S-18″/7.2kg–Quadcopter
10.8kg–Hexacopter 14.4kg–Octocopter
Single rotor take-off weight 1.7kg ~ 2.2kg

MAD 5010 EEE is designed to carry payloads of 8002900g per rotor, with 14-22″carbon propeller. Support 6S-12S. Max thrust of single rotor is up to 4400g, unit motor only weighs 158g. EEE reduction version design, minimized weight, optimized efficiency and flight time extended.

* Open body design for better passive heat dissipation.* Propeller installation compatibility.
* Reduced motor weight.
* Motor mounting holes standarization.
