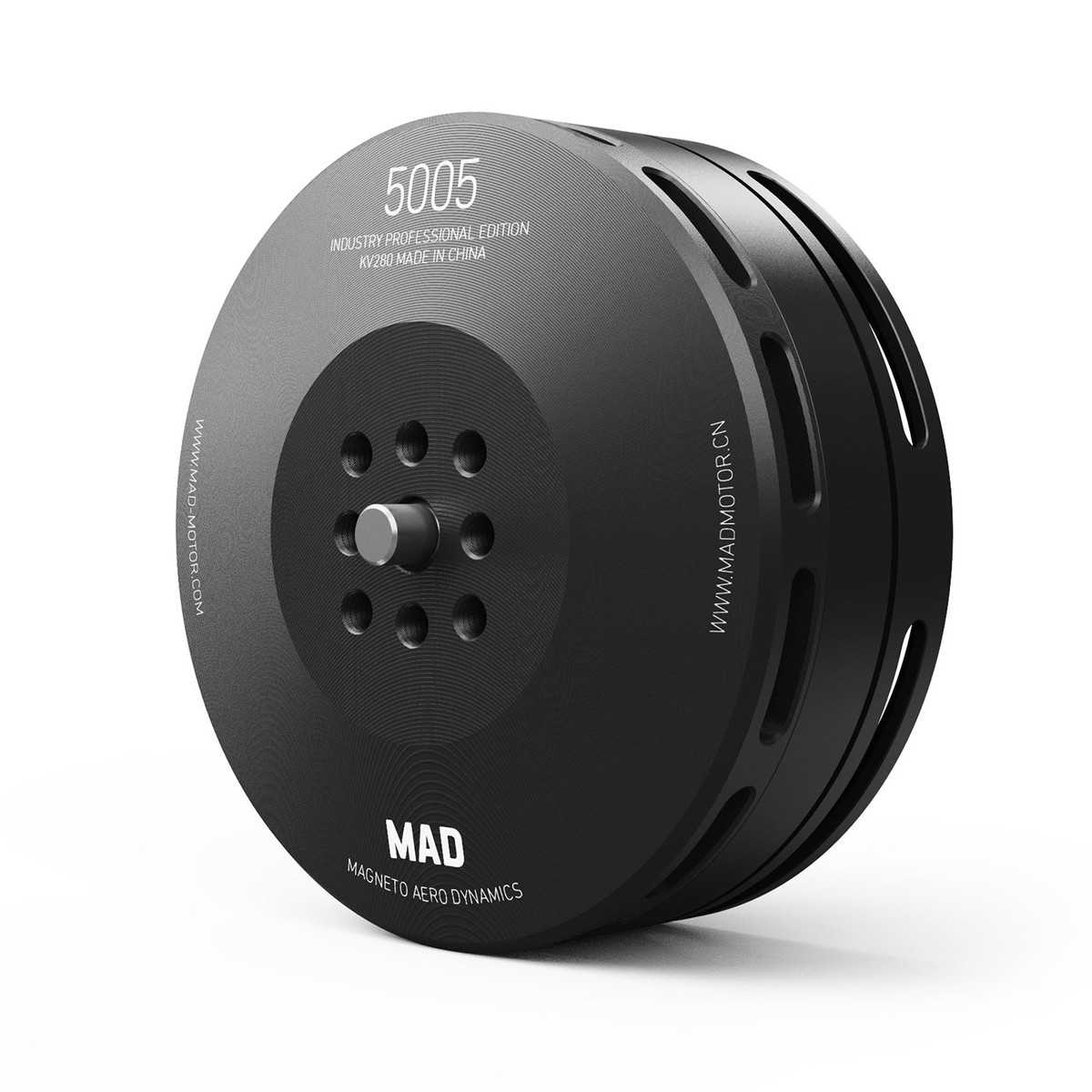

MAD 5005 IPE V2.0 Drone Motor 280KV/350KV/440KV, IP35, 4S-6S, 56 x 26.3 mm, 14 Pole Pairs

Overview

MAD 5005 IPE is a drone motor series (MAD 5005 IPE V2.0) offered in 280KV, 350KV, and 440KV options for multirotor builds. Support voltage is listed as 4S and 6S, and thrust/weight figures vary by KV and propeller setup.

Key Features

• Motor model: MAD 5005 IPE V2.0
• Degree of protection: IP35
• Anticorrosive stator
• Centrifugal heat dissipation: YES
• Cable: 150 mm 18# Awg(Black) silicone
• Propeller range: 1418″ carbon fiber or polymer
• Balance ratings: Rotor Balance 5 mg; Motor Balance 10 mg

For integration and compatibility questions (ESC, propellers, voltage), contact [email protected] or visit https://rcdrone.top/.

Specifications

KV Options (headline figures)

• 280KV: Recommended hover thrust 0.5~1.0 kgf; Maximum thrust 2.7 kgf; Optimized weight 102 g; Efficiency >76%
• 350KV: Recommended hover thrust 1.0~1.5 kgf; Maximum thrust 2.90 kgf; Optimized weight 106 g; Efficiency >78%
• 440KV: Recommended hover thrust 1.0~1.5 kgf; Maximum thrust 3.00 kgf; Optimized weight 108 g; Efficiency >81%

Whats Included

• Motor x1
• Propeller Plate x1
• 3.5mm Bullet Connector x3
• 46 Adapter Ring x1
• Heat Shrinkable Tube x3
• M3 x 8 Motor Screws x4
• M3 x 10 Propeller Screws x2
• Sticker x2

Mounting

• Motor mounting holes: D:30 M3 x 4
• Propeller mounting holes: D:12 M3 x 4; D:15 M3 x 4
• Shaft diameter: IN: 5 mm
• Drawing label: 12-2*3.2

Applications

• Heavy-payload cinematography drones
• Industrial inspection UAVs
• Agricultural spray systems
• Search-and-rescue operations

Images (reference)

MAD 5005 IPE V2.0 motor drawings provide key dimensions and mounting hole spacing for compatibility checks during installation.

MAD 5005 IPE V2.0 drone motor includes a propeller plate, 3.5mm bullet connectors, an adapter ring, screws, heat-shrink tubing, and stickers for installation.

Performance curves and detailed test tables for the MAD 5005 motor help with prop and setup selection.

The MAD 5005 IPE V2.0 motor spec sheet lists the 350KV version with performance curves and detailed thrust, current, and efficiency data.

Details

MAD 5005 IPE V2.0 motor drawings provide key dimensions and the mounting hole pattern to help with fitment and frame planning.

The MAD 5005 IPE V2.0 motor includes a propeller plate, 3.5mm bullet connectors, adapter ring, mounting screws, and heat shrink for installation.

The MAD 5005 IPE V2.0 2300KV motor includes performance curves and test tables to help match props and voltage for your build.

The MAD 5005 IPE V2.0 motor documentation lists a 350KV rating alongside dimension details and performance tables for setup planning.

MAD 5005 motor documentation includes performance curves and detailed test tables to help with prop and power setup decisions.
