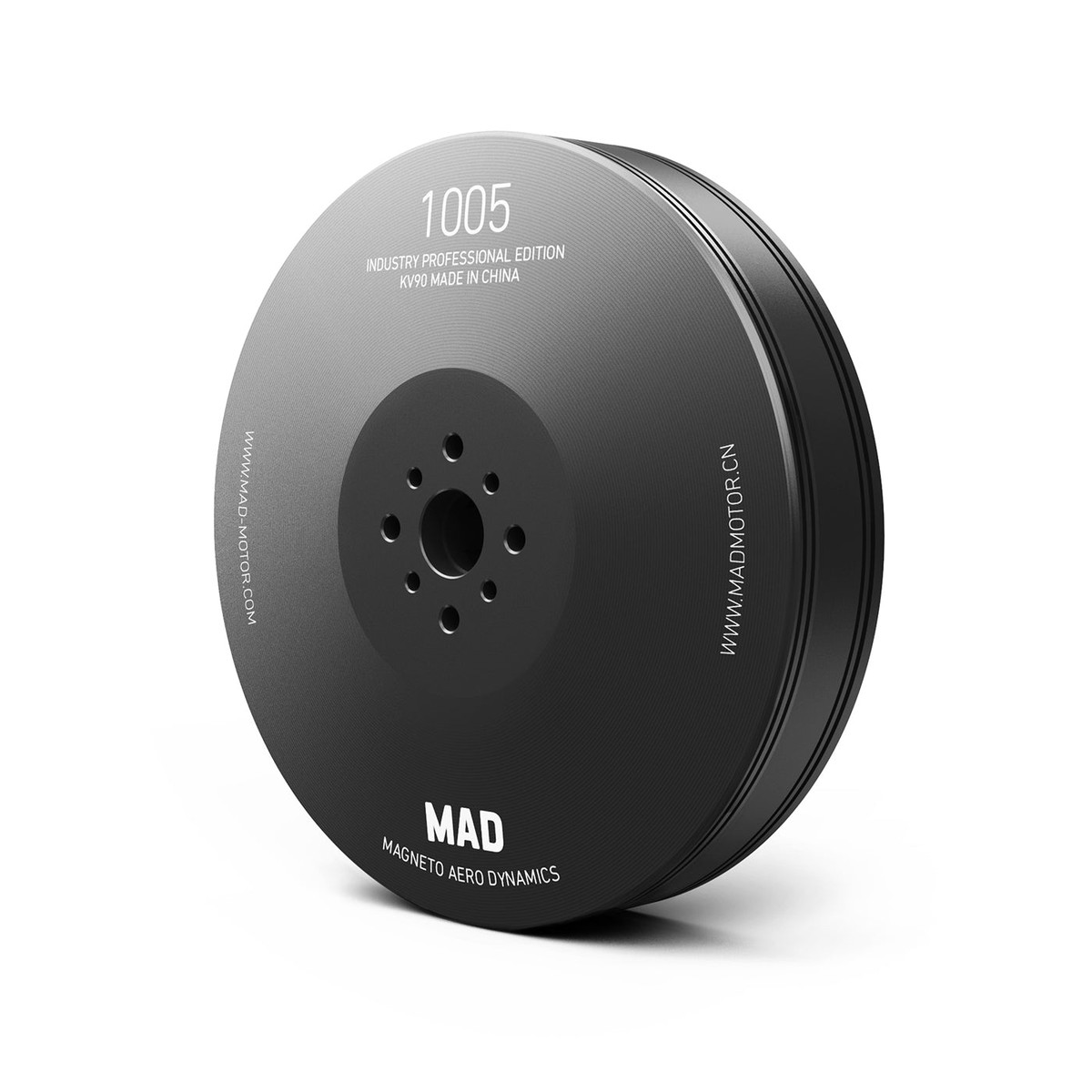

MAD 1005 IPE 90KV Drone Motor (12S) 10.1kg Max Thrust, 320g, 32in Prop Setup, 21 Pole Pairs

Overview

The MAD 1005 IPE is a 90KV drone motor designed for stable, long-endurance multi-rotor builds and medium-to-heavy single-rotor lift setups, including use with 32-inch carbon fiber propellers. It is specified for sustained thrust in the 3.5~4.5kg range (also shown as 3.5~4.5kgf recommended hover thrust on the performance sheet), with a maximum thrust rating of 10.1kg (10.1kgf on the performance sheet) on 12S.

Key Features

• Max thrust: 10.1kg (10.1kgf on the performance sheet)
• Sustained thrust: 3.5~4.5kg (3.5~4.5kgf recommended hover thrust on the performance sheet)
• Support voltage: 12S
• Motor weight: 320g
• Efficiency: 12g/W
• Electrical efficiency: >82% (performance sheet)
• Verified service life: over 1000 hours
• Recommended ESC (listed): FOC 60A 12S; MAD AMPX 40A (5-14S)

Specifications

Drawing and Mounting Hole Dimensions

Applications

• Industrial UAV builds
• Drones carrying medium-to-heavy payloads
• Long-endurance multirotor platforms requiring stable thrust and durability

For ESC/propeller matching and mounting compatibility checks, contact [email protected] or visit https://rcdrone.top/.

Details

MAD 1005 IPE 90KV motor dimensions and bolt-hole patterns are laid out for planning mounts, spacing, and shaft clearance.

MAD 1005 IPE 90KV motor specs include an efficiency curve, key performance figures, and a clearly marked 12S maximum setup.

MAD 1005 IPE 90KV motor test data lists throttle-based voltage, current draw, RPM, thrust, and efficiency for a 12S setup.

MAD 1005 IPE 90KV motor test data lists key figures such as voltage, current draw, RPM, thrust and efficiency across throttle settings.
