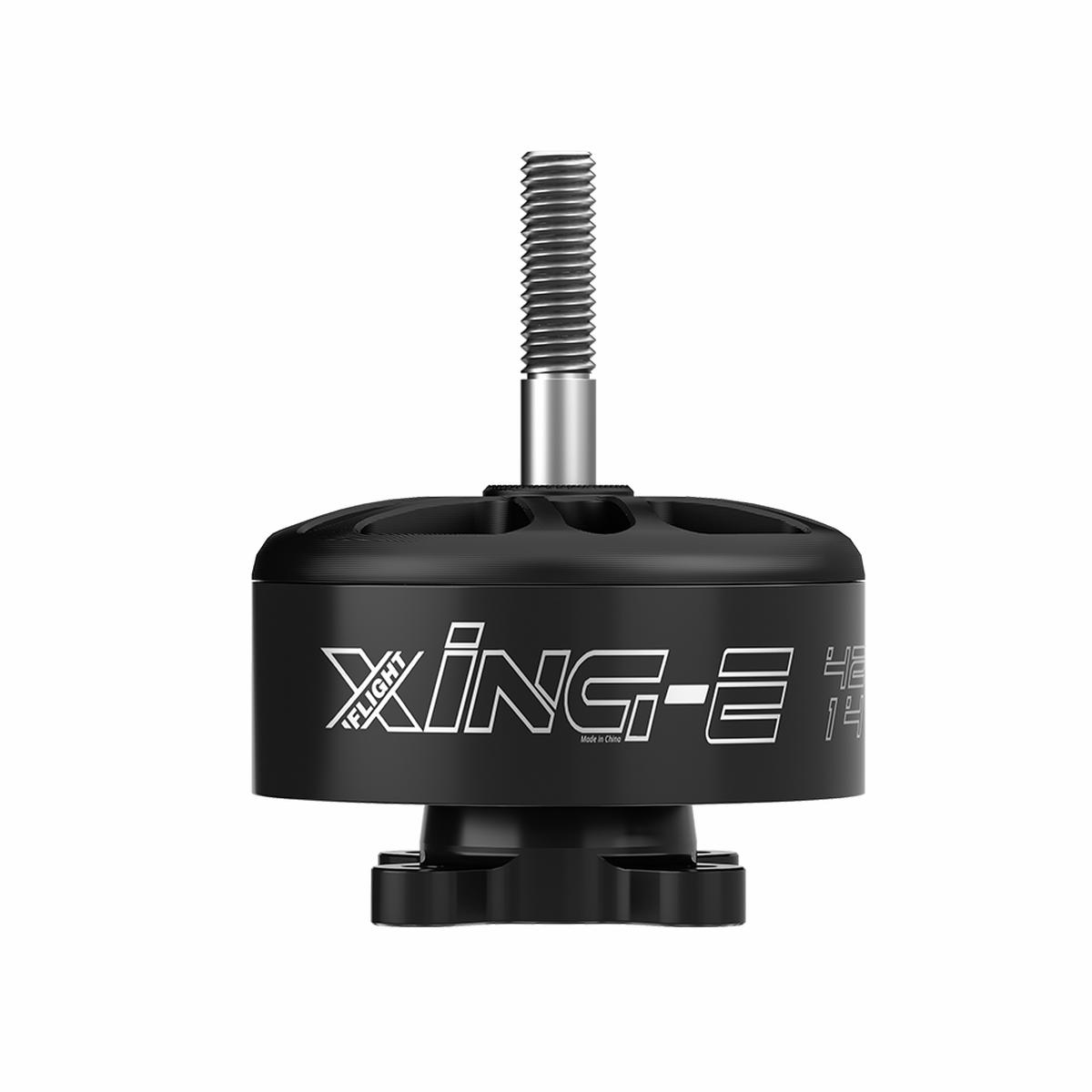

iFlight XING-E 4214 400KV 8S FPV Brushless Motor for 1318 Inch Prop X-Class Cinelifter Drones

Overview

The iFlight XING-E 4214 400KV motor is purpose-built for 8S-powered heavy-lift FPV drones, making it an ideal solution for X-Class racing, cinelifter cinematography, and agricultural or industrial UAVs. Engineered to drive 1318 inch propellers, this high-torque motor delivers up to 3229W of peak power with excellent thermal performance and structural integrity.

Designed with N48SH curved arc magnets, 12N14P configuration, and a Unibell segmented bell structure, the XING-E 4214 ensures smooth response, high efficiency, and rugged durability under extreme loads. It pairs perfectly with large frames such as the iFlight X413 and supports cinematic or payload-heavy missions with confidence.

Changelog (Oct 26, 2024): Updated screw length from M410mm to M48mm for better frame compatibility.

Key Features

• Designed for 8S LiPo power systems

• Supports 13″ to 18″ propellers for heavy-lift applications

• Ideal for X-Class racing, cinelifter drones, and agricultural UAVs

• Up to 3229W peak output @ 65.54A

• Reinforced Unibell structure for crash resilience

• Smooth performance with N48SH curved magnets

• Extra-long 800mm 14AWG leads for large-frame routing

Specifications

Application Scenarios

• X-Class FPV racing drones (with 1316 inch props)

• Cinelifters carrying cameras like RED, BMPCC (1618 inch props)

• Agricultural & mapping drones (1521 inch props, 68 rotors)

Package Includes

• 1 XING-E 4214 400KV Brushless Motor

• 4 M48mm Mounting Screws

• 1 M6 Flanged Nut
