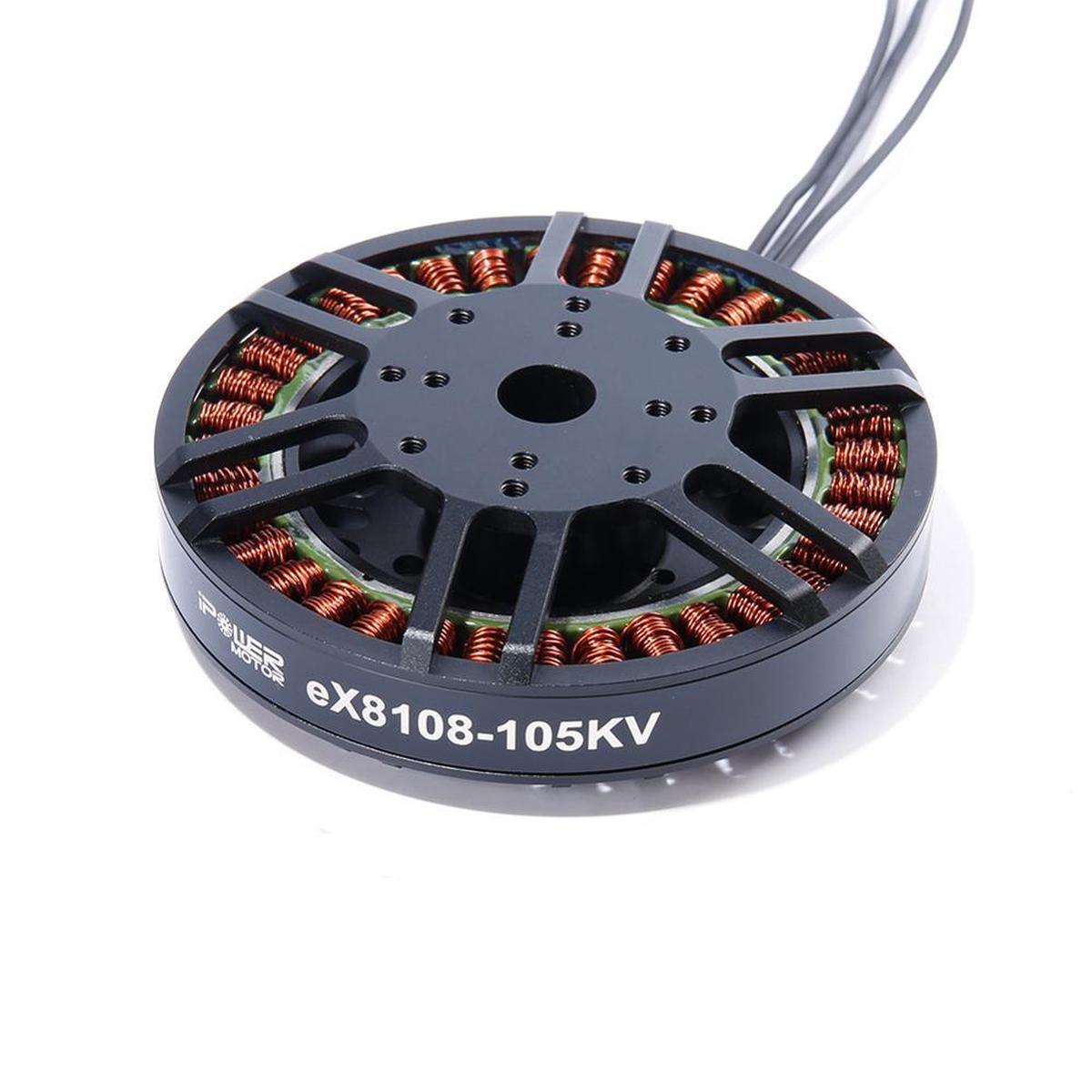

iFlight iPower ex-8 eX8108 Motor – 105KV 6-12S brushless motor multirotor motor High Efficiency for MIT mini Cheetah robot dog backflips

specification

• This is one mighty high efficiency UAV motor.
• Capable of driving a 29 inch propeller at efficiency levels of 80% at 3000 RPM on a 7S battery, this motor will be suitable for exacopters of 10 to 18 kgs!
• The benefits of this setup is: low noise levels, high pitch propeller compatible, very good cooling capability, very high efficiency.

Technical datas:

• KV: 105RPM/V
• NO Load Current : 0.6A/22.2V
• Max watts : 750W/180S
• Max Amps : 24A/180S
• Resistance :186M
• Motor dimension : 87×24.5mm
• Weight : 228.6g
• Recommended Battery configuration : 6-12S
• Recommended CF Prop : 28inch,29inch

Package included:

• 1 xeX8108105KV motor

The iFlight iPower ex-8 eX8108 motor features an output bearing, sun controller, planetary gears, needle bearings, output pins, planet carrier ring, and a back housing with a front housing. It also includes CAN-bus and V-puwer bearing components.
