Overview

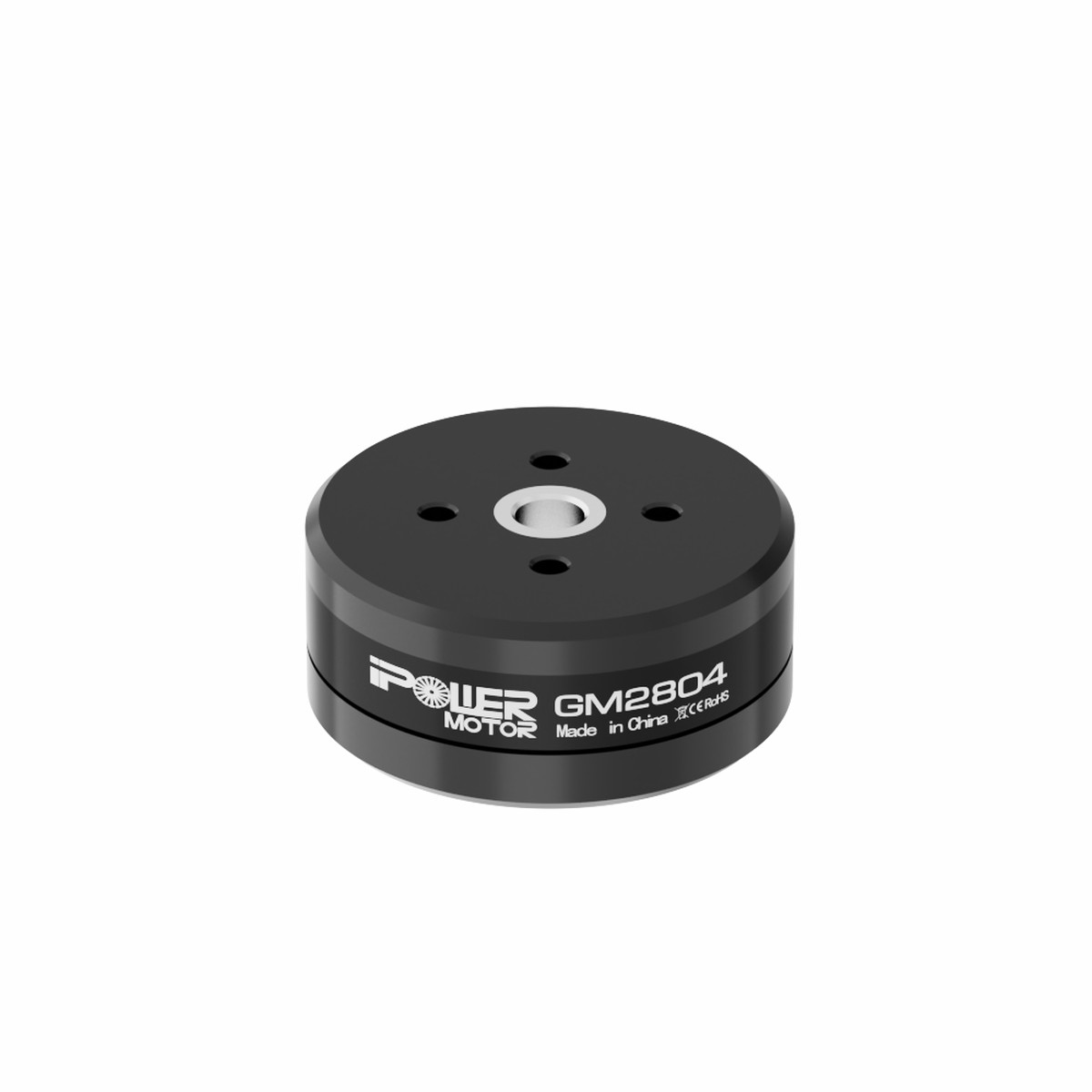

The iFlight GM2804 is a gimbal motor designed for 3-axis camera stabilizing systems, suitable for UAV-mounted gimbals and handheld camera stabilizers.

Key Features

12N/14P motor configuration
Hollow shaft design (specified OD/ID tolerances below)
PH3P connector, 603 mm lead, #24 AWG cable
Rated test points provided for no-load and load operation at 10 V

Specifications

Model	GM2804
Motor outer diameter	350.05 mm
Configuration	12N/14P
Motor height	150.2 mm
Hollow shaft (OD)	8-0.008/-0.012 mm
Hollow shaft (ID)	6.5+0.05/0 mm
Wire length	603 mm
Cable	#24 AWG
Motor weight	42.30.2 g
Wire plug	PH3P connector
No-load current	0.090.05 A
No-load voltage	10 V
No-load RPM	1602~1771 RPM
Load current	0.8 A
Load voltage	10 V
Load torque	250-350 gcm
Motor internal resistance	9 5% (resistance varies with temperature)
High voltage test	DC500V 1 mA @ 2 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60 C for 100 hours; motor works normally after 24 hours at room temperature
Low temperature test	Keep at -20 C for 100 hours; motor works normally after 24 hours at room temperature
Maximum power	25 W
Working current	2-3S
Working temperature / humidity	-20~60 C; 10~90%RH

Whats Included

1 x iPower GM2804-100T Gimbal Motor

For compatibility checks (connector, shaft size, and controller pairing) or bulk inquiries, contact [email protected] or visit https://rcdrone.top/.
