Hobbywing XRotor V6215 210KV 12S VTOL Motor, IPX5, 13.8kg Max Thrust @46V, 3733W

Overview

The Hobbywing XRotor V6215 210KV 12S VTOL motor (V Series) is designed for VTOL fixed-wing platforms, focusing on reliability and stability. It uses an optimized magnetic circuit design for strong torque burst and VTOL suitability.

Key Features

• Maximum thrust: 13.8kg @46V
• Thrust-to-weight ratio: 39:1
• Weight reduction statement: reduced by 10% compared with competing products of the same specifications
• Protection level: IPX5
• Isolation test: 500V AC high voltage resistance test
• Stator process: high standard silicon steel sheet, rust proof, 180C high temperature resistance paint-coat
• Materials and testing statements: 0.2mm silicon steel sheet and insulation coating material; special anti-rust treatment; corrosion resistance and long service life; over 1000 hours of aging test; 48h salt spray verification
• Wire statement: high quality enameled wire, temperature resistant over 200C; silicone sleeve protects the outlet wire and is softer/easier to route than traditional straight enameled wire
• Propeller control statement: an intelligent propeller control version is optional; used with Hobbywing IPC ESCs to set propeller stop position, reduce drag during cruise flight, and increase flight time
• Interface statement: standardized installation interface to fit common propellers
• Magnet temperature statements provided: 150C; also stated as NdFeB magnets temperature resistant up to 180C

For product selection and after-sales support, contact support@ or visit https:///.

Specifications

CAD dimensions (values shown)

• 39.3, 35.4, 33.9
• Dia 68.7
• Dia 6
• Dia 27
• 90
• 600
• D12, D18
• 4-M3
• 4-M4, D25
• D12 with 4- Dia 3.2
• Dia 20, Dia 4.1

Recommended combinations

Performance

V6215 210KV Load performance parameters

XRotor V6215 thrust data is provided with corresponding RPM, current draw, power, and efficiency values across the load range.

V6215 210KV Motor Propeller Pull Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

Details

The V6215 motors dimensional and mounting-hole layout (including 4-M3 and 4-M4 patterns) helps confirm fitment before installation.

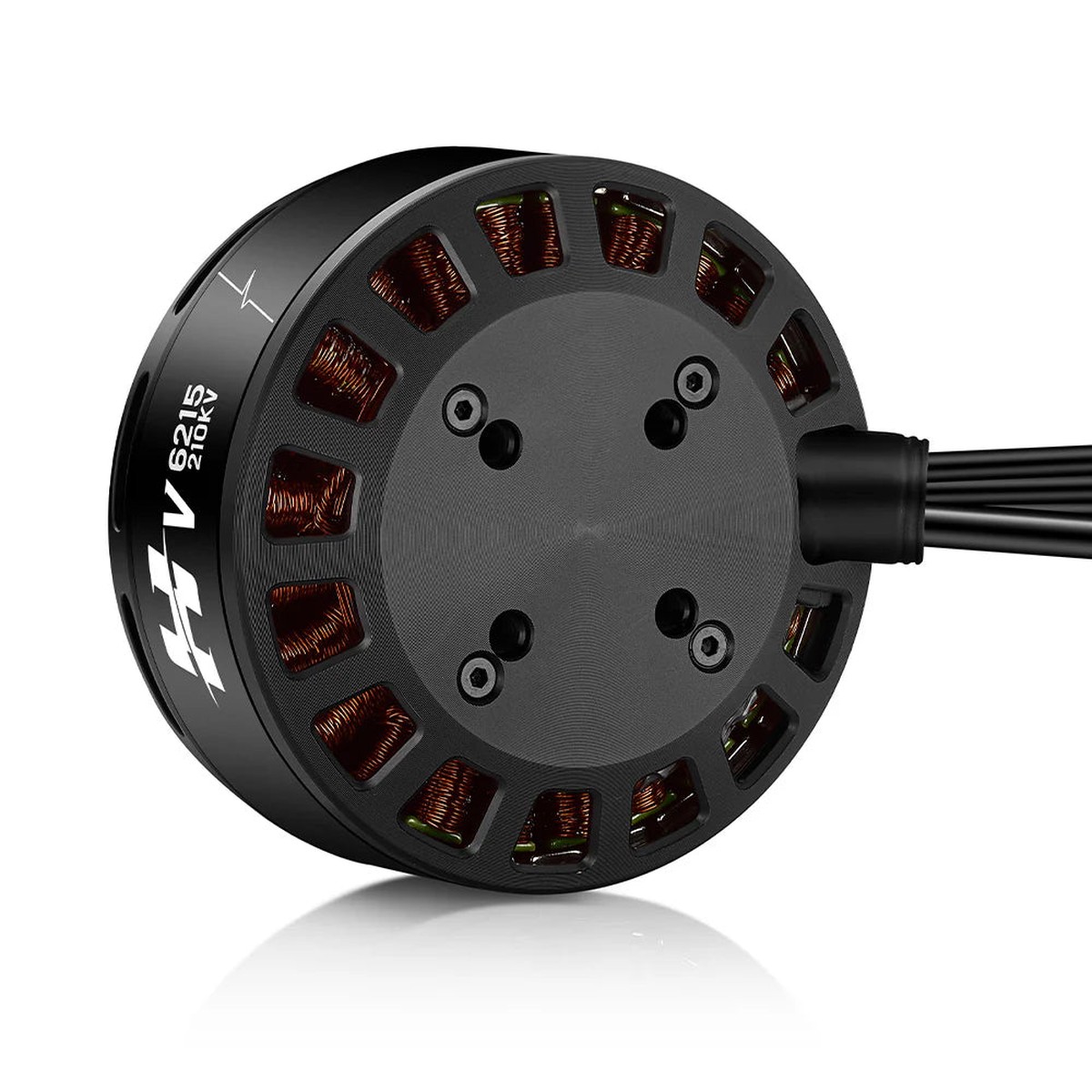

The XRotor V Series HV-6215-210KV motor features a vented can and standard front mounting face for VTOL airframe setups.

The XRotor V6215-210KV is designed for VTOL setups with a stated 39:1 thrust-to-weight ratio and up to 13.8kg maximum thrust at 46V.

Optional intelligent propeller control with compatible Hobbywing IPC ESCs can set propeller stop position, and the standardized installation interface fits common propellers.

The XRotor V6215 motor is built with selected materials and rigorous testing, including 0.2mm silicon steel sheets, salt-spray verification, and aging tests.

The XRotor V6215 210KV motor is recommended with a 12S LiPo, MV227.4 or ML227.8 propellers, and an XRotor Pro H60A-14S or H80A-14S-IPC ESC.
