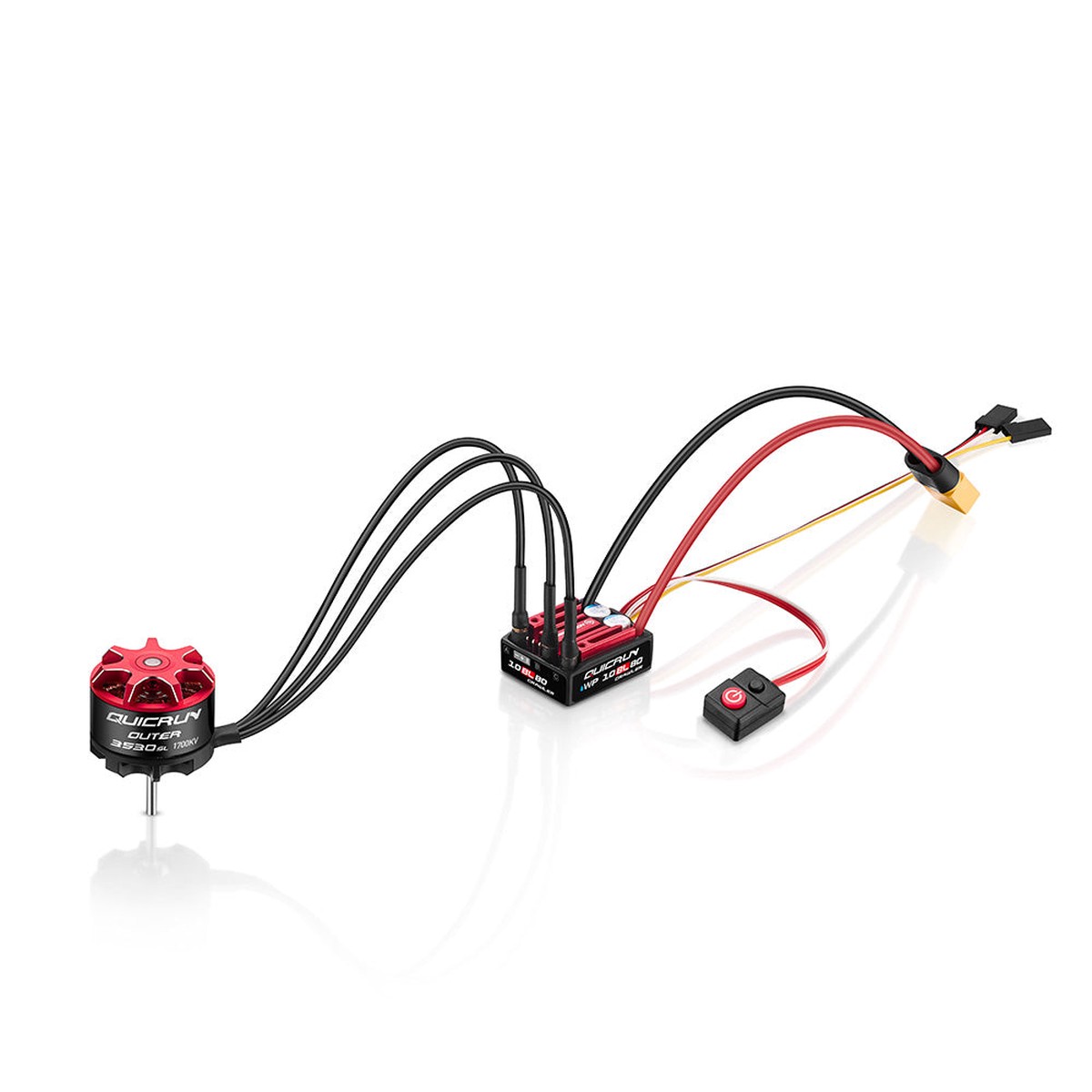

Name: Hobbywing QUICRUN WP 10BL80 Crawler ESC Combo 80A/240A, 2-4S LiPo, QR3530SL 1700KV/2200KV
SKU: A2380050254
Availability: InStock

Description
Reviews (0)

Overview

The Hobbywing QUICRUN WP 10BL80 Crawler ESC combo is a waterproof ESC system designed for 1/10 crawlers, supporting both sensorless brushless motors and brushed motors. It delivers 4S/80A performance in a 36 x 30 x 15.5 mm package, with strong low-speed control for crawling.

COMBO
Compact, Powerful, and Capable: 4S/80A performance in a 363015.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.

Key Features

Supports brushed and brushless modes (compatible with both brushless and brushed motors).
Compatible with most brushed or brushless motors on the market.
Waterproof design for all conditions.
Internal switch-mode BEC with switchable voltage: 6.0V / 7.4V / 8.4V.
Independent programming port for LED program box or LCD program box pro connection.
Protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
Supports using transmitter (AUX channel) to adjust drag brake force in real time.

Specifications

Model	QUICRUN WP 10BL80 Crawler
Continuous / peak current	80A / 240A
Motor type	Sensorless brushless motor, and brushed motor
Applications	1/10 Crawlers
Applicable motors	Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors.
LiPo cells	2-4S LiPo
BEC output	6.0V / 7.4V / 8.4V, 5A
Size	36(L) x 30(W) x 15.5(H) mm
Weight	47.8 g (Included wires & connectors)
Programming port	Independent programming port

Programming Parameters

The highlighted options are the default settings of the system.

1. Running Mode	Forward with Brake; Forward/Reverse with Brake; Forward and Reverse	Default: Forward and Reverse
2. Motor Type	Brushed; Brushless	Default: Brushless
3. Cutoff Voltage	Disabled; Low; Medium; High	Default: Medium
4. Motor Rotation	CCW; CW	Default: CCW
5. BEC Voltage	6.0V; 7.4V; 8.4V	Default: 6.0V
6. Drag Brake Force	Disabled; 20%; 40%; 60%; 80%; 90%; 100%; 110%; 120%	Default: 100%
7. Drag Brake Rate	Level 1; Level 2; Level 3; Level 4; Level 5; Level 6; Level 7; Level 8; Level 9	Default: Level 5
8. Max. Reverse Force	25%; 50%; 75%; 100%	Default: 50%
9. Max. Brake Force	10%; 20%; 30%; 40%; 50%; 60%; 70%; 85%; 100%	Default: 60%
10. Punch	Level 1; Level 2; Level 3; Level 4; Level 5; Level 6; Level 7; Level 8; Level 9	Default: Level 6
11. Neutral Range	4%; 6%; 8%; 10%; 12%	Default: 8%
12. FOC Power	Disabled; 9%; 12%; 15%; 18%; 21%; 24%; 27%; 30%	Default: 21%
13. Low Speed Throttle	10%; 15%; 20%; 25%; 30%; 40%; 60%; 80%; 100%	Default: 20%

Note: 1% step adjustment is allowed when using LCD for items 6, 9, 12, 13. After reconnecting the LED, the corresponding items will be displayed in a rounding manner.

Setup Notes

Motor connection (brushless motor): #A/#B/#C of the ESC can be connected to the three motor wires randomly. If rotation is reversed, exchange two motor wires or adjust the parameter item Motor Rotation using a program box.
Motor connection (brushed motor): Connect the two brushed motor wires to #A/#C of the ESC. If rotation is reversed, exchange the two motor wires, or change Motor Rotation. Do not connect the brushed motor wires to the #B wire of the ESC.
Motor Type setting: Set the correct Motor Type (item 2 in the parameter table) according to the motor used.
Receiver connection: Connect the ESC throttle cable to the receiver throttle channel. Do not supply additional power to the receiver (BEC voltage is provided to receiver and servo). If additional power is required, disconnect the red wire on the throttle plug from the ESC.
Yellow signal cable: Auxiliary (AUX) cable for the idle/AUX channel; use the transmitter channel switch/knob to adjust drag brake force in real time.
Battery connection: Ensure (+) connects to (+) and (-) to (-). Reversed connection can damage the ESC.

Whats Included

1x WP 10BL80 Crawler ESC
1x QR3530 SL Outer Motor (KV choice: 1700KV or 2200KV)
Factory-installed XT60 plug
1x Decal and manual
1x Heatshrink kit, double-sided tape, and zip ties

Customer service: [email protected] or https://rcdrone.top/

Applications

1/10 crawlers

Manuals

User’s Manual: QuicRun WP 10BL80_manual.pdf
Product brochure: QuicRun WP 10BL80_leaf-en.pdf

Details

The QUICRUN WP 10BL80 crawler ESC supports both brushed and brushless motors for flexible setup options.

The QUICRUN WP 10BL80 Crawler ESC lists 80A/240A current, 24S LiPo support, and a 6.0/7.4/8.4V 5A BEC output.

The QUICRUN WP 10BL80 ESC wiring layout shows connections for brushless or brushed motors, receiver lead, on/off switch, and battery leads.

Default programming options for the QUICRUN WP 10BL80 include brushless mode, 6.0V BEC, and adjustable drag brake, punch, and cutoff voltage.
