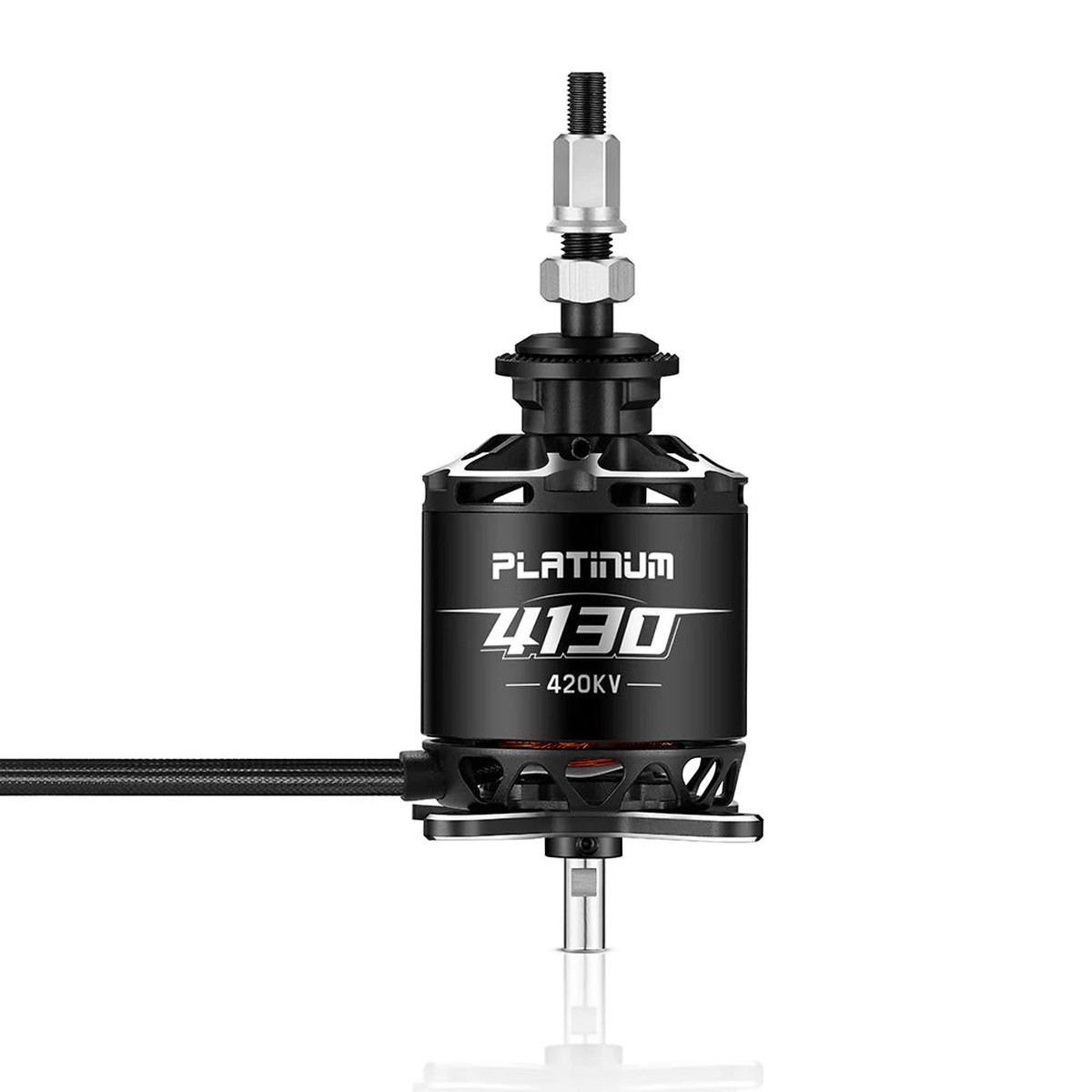

Name: Hobbywing Platinum FW 4130 230KV 420KV 490KV Fixed Wing Brushless Motors
SKU: WKA86610369886
Availability: InStock

Description
Reviews (0)

Platinum 4130 Specifications

Item	Platinum 4130SL 230KV	Platinum 4130SL 420KV	Platinum 4130SL 490KV
Product Number	30416100	30416101	30416102
Motor Size	49.5 * 82.3mm	49.5 * 82.3mm	49.5 * 82.3mm
Stator Size	40.6 * 30mm	40.6 * 30mm	40.6 * 30mm
Stator process	High standard silicon steel sheet, 180C high temperature resistance paint-coat	High standard silicon steel sheet, 180C high temperature resistance paint-coat	High standard silicon steel sheet, 180C high temperature resistance paint-coat
Enamelled wire	200C	200C	200C
Props mounting dimensions	15mm-3*M3	15mm-3*M3	15mm-3*M3
Motor mounting dimensions	30mm-4*M4	30mm-4*M4	30mm-4*M4
Slot & Pole	12N14P	12N14P	12N14P
Dynamic balance	10mg	10mg	10mg
Bearing	696ZZ	696ZZ	696ZZ
Motor axle diameter	6mm	6mm	6mm
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test
KV	230	420	490
Battery (LiPo)	LiPo-12S	LiPo-6S	LiPo-6S
No-load current	1.4A / 44.4V	2.4A / 22.2V	2.4A / 22.2V
Maximum current (Non-hermetic Ambient Temperature 25C)	60.4A / 1min2s	107.6A / 1min4s	129.3A / 55s
Max power	2678W / 1min2s	2384W / 1min4s	2867W / 55s
Max thrust	9.06kg	8.73kg	9.12kg
Resistance	43m	14m	10.6m
Wire Size	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output
Wire length	90mm	90mm	90mm
Weight (With wire)	412g	420g	418g
Recommended ESC	PLATINUM 130A V4; PLATINUM 180A V5	PLATINUM 120A V4; PLATINUM 150A V5	PLATINUM 120A V4; PLATINUM 150A V5
Recommended Propeller	12S: 16X6E, 16X8E, 17X6E, 17X8E	6S: 16X8E, 16X10E, 17X8E, 18X8E	6S: 15X8E, 16X6E, 16X8E, 17X8E

Features

Dual Dynamic Balance Technologyto control motor vibration: The rotor and the complete machine undergo dynamic balancing. The rotor dynamic balancing
is completed first, then the operating conditions are simulated. A secondary
dynamic balance test is performed on the motor to ensure smooth
operation and eliminate any imbalance in the assembly.
Unmatched efficiency and powerful performance:Efficiency is boosted by over 2.5% compared to competing motors with the same specifications.
Superior heat dissipation ensures the motor stays cooler:The motor’s continuous running time is extended by over 30% compared to competing motors with the same specifications, offering longer performance even under heavy load.
Patented Propeller Locking Systemfor Enhanced Flight Safety: The patented locking design of the propeller mount features an innovative system that effectively prevents the propeller from detaching due to a loose mounting nut, ensuring a safer flight.
Diamond-Shaped Anti-Slip Propeller Mountfor Enhanced Safety and Reliability:Diamond-Shaped Anti-Slip Design of the Propeller Mounting Seat The propeller mount seat features a diamond-shaped anti-slip design that effectively prevents the propeller from slipping or free spinning, ensuring greater safety and reliability.

Load Performance Parameters

Platinum FW4130 Motors>

Details

The Hobbywing Platinum FW4130 fixed-wing brushless motor uses double dynamic balancing and a patented locking, non-slip propeller mount design for a more secure setup.
