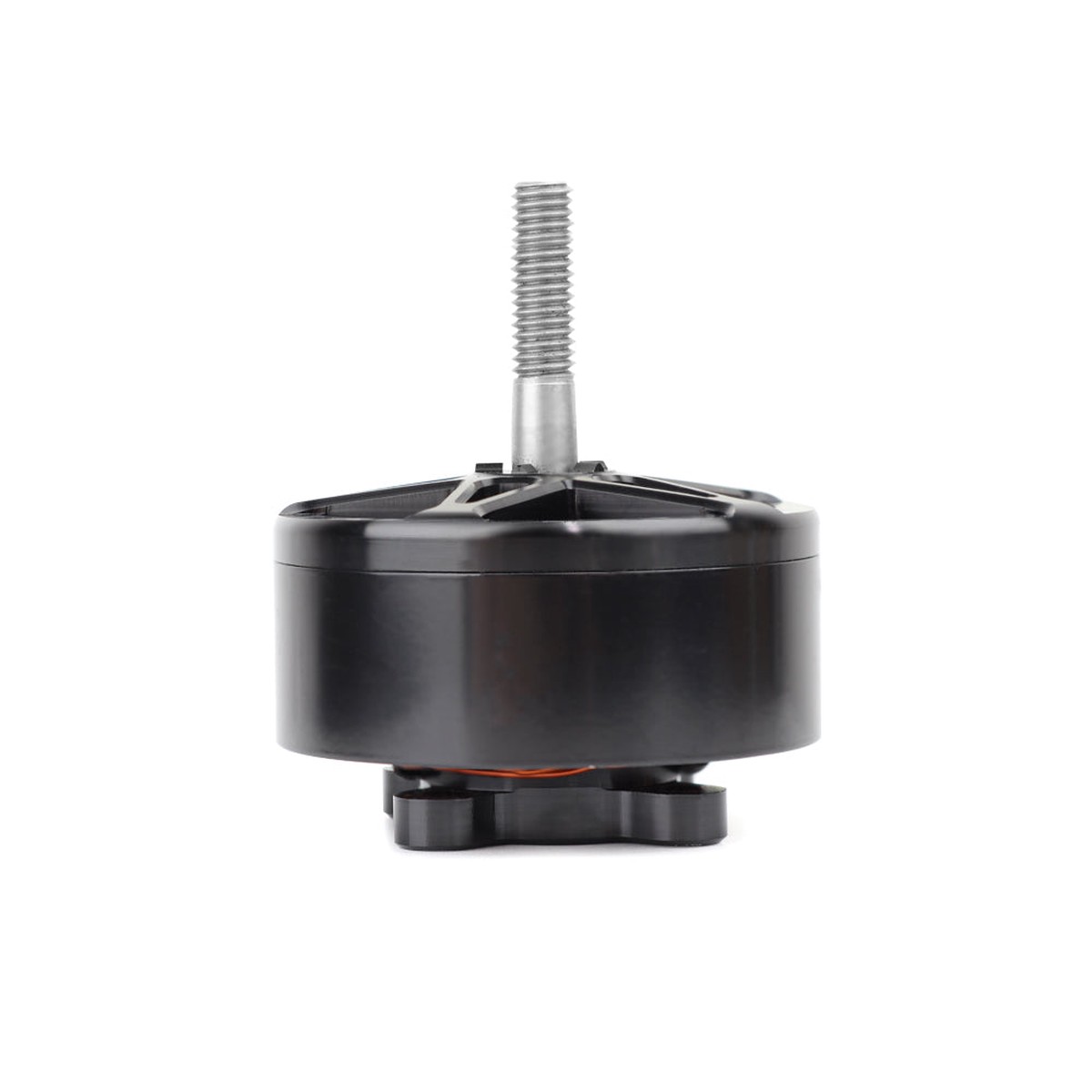

HGLRC MY 4215 400KV Brushless Motor 6-8S (25.2V-33.6V), M6 Shaft, 736W, 16-inch

Overview

The HGLRC MY 4215 400KV brushless motor is a high-load motor designed for 68S power systems and 16-inch class propeller setups. It features an M6 output shaft and 14AWG leads for higher-current builds.

For compatibility questions (ESC, propellers, mounting) or documentation requests, contact support at https://rcdrone.top/ or [email protected].

Key Features

• Model: HGLRC MY 4215
• 400KV rating for 68S systems (25.2V33.6V)
• M6 output shaft
• Mounting pattern: 30-4*M4
• 14AWG wire, 300mm lead length

Specifications

Drawing Dimensions (from provided drawing)

Efficacy Table (Propeller: GF16*6, Voltage: 24V)

Note: Some Tension values in the 40% and 90% rows are not fully legible in the provided source image.

Whats Included

• 1 MY 4215 400KV Motor
• 1 M6 Nut
• 1 5.5mm Gasket
• 4 M4 14mm Screws

Applications

• High-load multirotor builds using 68S batteries
• 16-inch class propeller setups

Details

Built for high-load multirotor builds, the MY 4215 400KV motor supports 68S power systems and 16-inch class propellers.

Dimension drawings and the 24V (GF 166) efficacy table help match the motor with the right prop, ESC, and frame mounting.

An open top design provides airflow around the windings, with an M6 threaded shaft for secure prop mounting.

Everything needed for installation comes in the box: the motor, M4 mounting screws, an M6 nut, and a 5.5mm gasket.
