Overview

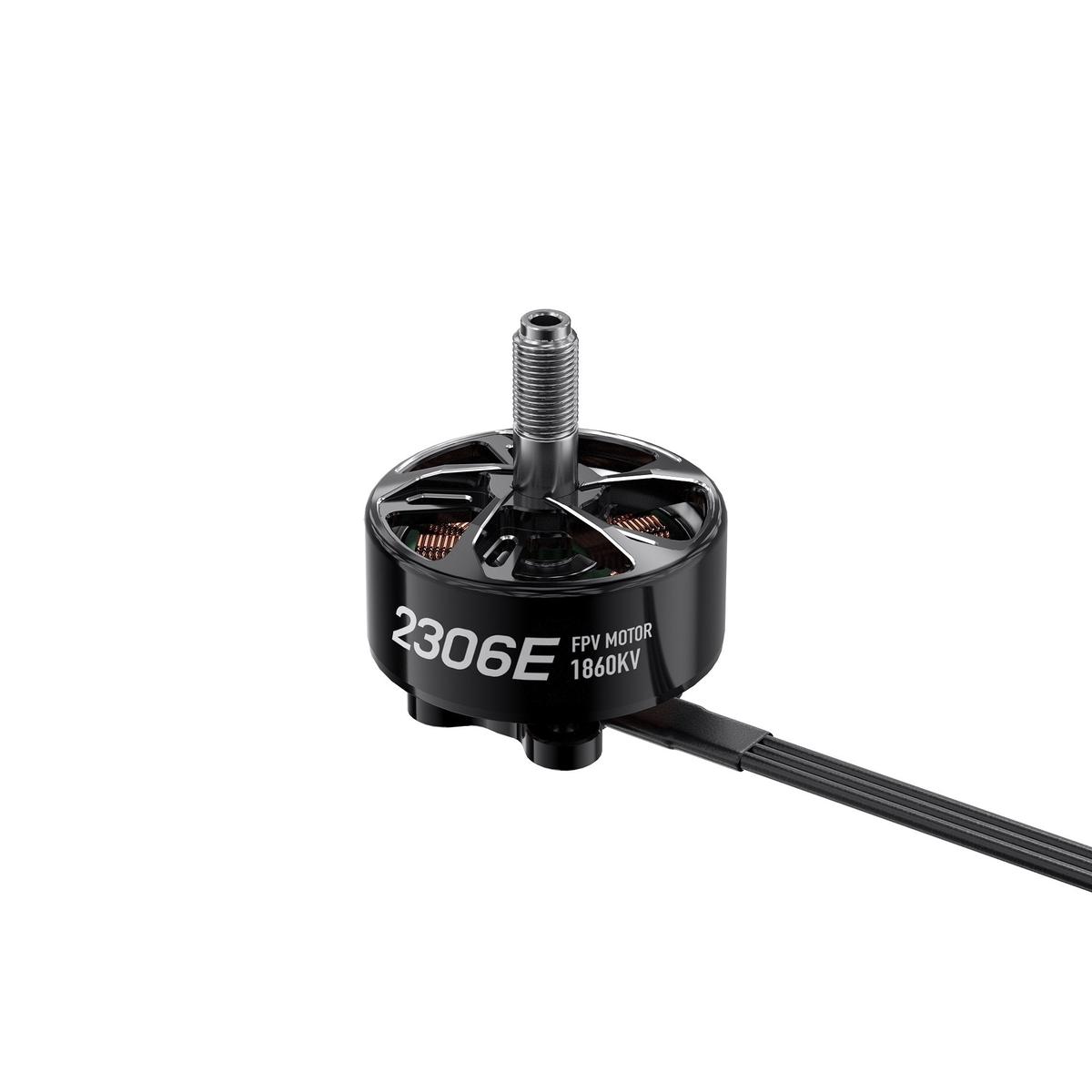

The GEPRC SPEEDX2 2306E Motor is a high-performance 1860KV brushless motor engineered for 45 inch FPV racing and freestyle drones. Featuring a sleek black finish and precision-cut structural vents, the motor combines aerodynamic design, efficient cooling, and responsive power delivery to meet the demands of modern high-speed flight.

Built from 7075 aerospace-grade aluminum using CNC machining, the SPEEDX2 2306E achieves a strong yet lightweight frame. Its reduced rotor-stator air gap enables fast throttle response, while blade-style propeller locking protrusions ensure a secure grip during aggressive maneuvers. Compatible with 6S input and 40A ESCs, this motor delivers up to 972.7W of power and peak currents up to 39.18A, giving pilots the confidence to push limits.

Key Features

Optimized for 4-inch to 5-inch FPV drones, ideal for racing and freestyle
1860KV rating with up to 972.7W power output
CNC-machined 7075 aluminum housing for strength and weight savings
Single-strand copper winding for consistent performance under load
Advanced heat dissipation via extensive structural cutouts
NMB/NSK bearings ensure smooth and stable operation
N52H magnets and 12N14P stator for high torque and fast response
20AWG silicone wire (150mm) pre-soldered for easy installation
Compatible with 6S LiPo setups and 40A ESCs

Specifications

Parameter	Value
Model	GEPRC SPEEDX2 2306E
KV Rating	1860KV
Input Voltage	6S (LiPo)
Max Power	972.7W
Peak Current	39.18A
Internal Resistance	83.17 m
Stator Configuration	12N14P
Bearing Type	NMB/NSK
Magnet Grade	N52H
Shaft Diameter	5 mm
Shaft Length	13.5 mm
Mounting Pattern	1616 mm
Motor Dimensions	29 18.6 mm
Wire Spec	20AWG, 150 mm
Compatible ESC	40A
Propeller Size	45 inch
Weight (incl. wires)	33.3g
Color	Glossy Black

Applications

Ideal for freestyle builds, racing drones, and high-speed flight on 45 frames that require fast throttle response, efficiency, and thermal reliability under heavy loads.

Details

SPEEDX2 2306E Motor: Efficiency meets affordability, 1860KV.

The SPEEDXZ-2306E motor features a KV rating of 1860KV, max wattage of 972.7W, and peak current of 39.18A. It has an interphase resistance and a propeller with a 4-Sinch magnet. The bearing is NSZH type from NMB/NSK. Dimensions include a shaft diameter of 5mm, length of 13.5mm, and mounting hole size of 16x16mm.

Product drawing measures 32.1mm + 0.3mm long, 2.5mm wide, and 13.5mm + 0.2mm tall.

Datasheet for GEPRC SPEEDX2 2306E-1860KV motor. Includes performance metrics like voltage, throttle, current, thrust, power, efficiency, and temperature for props 5131 and 5136 at various settings.

2306E SMM 13 SMM FPV Motor with 18.6mm diameter, 2306E 1860KV rating, and dimensions of 150mm length, 29mm width.
