Name: Flashhobby H600 550KV Helicopter Motor 12N/10P, 44.6x59.5mm, 6mm Shaft, 3-12S, 3000W
SKU: ELAC22173210301
Availability: InStock

Description
Reviews (0)

Overview

The Flashhobby H600 550KV Helicopter Motor is a brushless motor designed for helicopter power systems, supporting 3-12S LiPo and specified for up to 3000W continuous output.

Key Features

550KV (550 RPM/V)
12N/10P configuration
6mm shaft diameter
Motor timing: 5 deg; drive frequency: 8KHz
Suggested ESC: 120A
5mm male connector

Specifications

Model	H600
Motor KV	550KV (550 RPM/V)
LiPo cell	3-12S
Max continuous current	60A
Max continuous power	3000W
Max peak current	80A (2 seconds)
Max peak power	4000W (2 seconds)
Idle current (Io/10V)	2.05A
Motor resistance (RM)	0.0241 ohm
Stator diameter	35mm
Stator height	38mm
Motor diameter	44.6mm
Motor length	59.5mm
Overall shaft length	95mm
Shaft diameter	6mm
Bolt holes spacing	30/25mm
Motor mount	30 x 25mm (M3 x 4)
Bolt thread	M3
Motor timing	5 deg
Drive frequency	8KHz
Connector	5mm (male connector)
Weight	378g (including the cables); 347g (also listed)

Applications

Helicopter brushless power systems (3-12S LiPo setups)
Motor/ESC/receiver installations using a brushless ESC (A/B/C motor phases) and PWM input signal cable

For compatibility questions (ESC selection, connector matching, mounting), contact support@ or visit https:///.

Details

The H600 motors 44.6mm can size, 59.5mm overall length, and 6mm shaft dimensions help confirm mounting and frame clearance before installation.

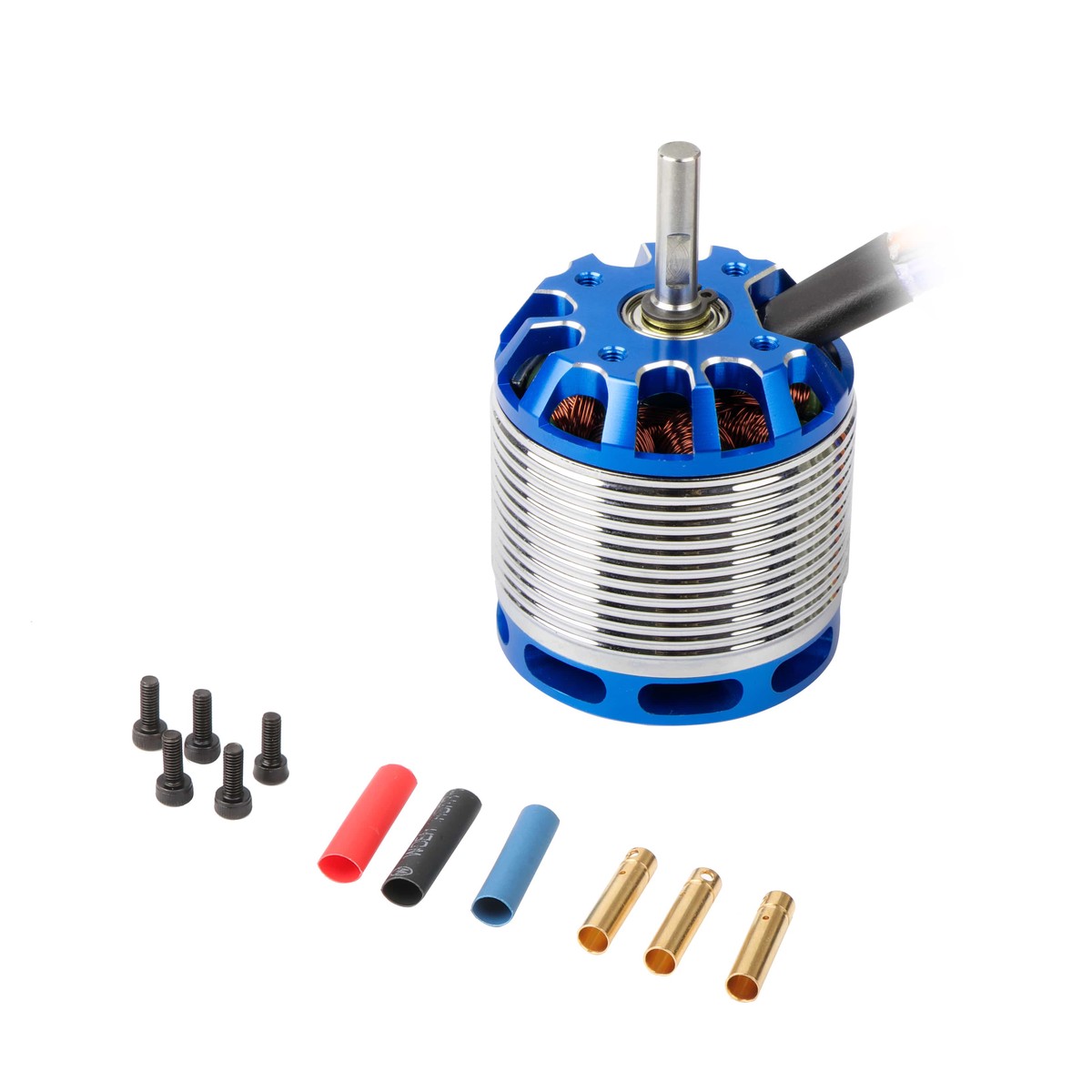

The Flashhobby H600 550KV motor features a blue end cap and ribbed aluminum can with a steel output shaft.

The Flashhobby H600 550KV helicopter motor connects to a brushless ESC with three phase wires, with the ESC wired to the battery and receiver via a PWM signal lead.
