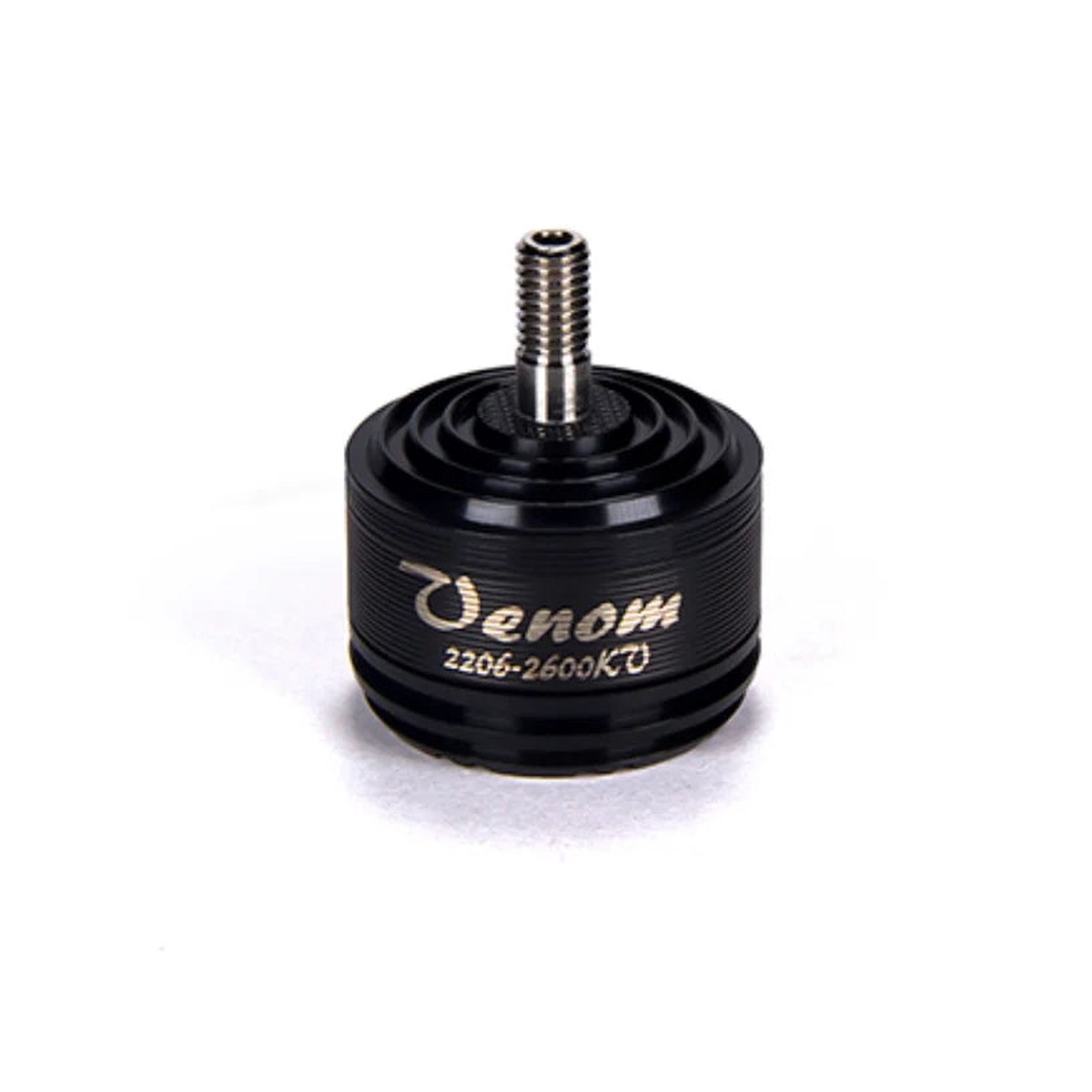

BrotherHobby Venom 2206 1900KV / 2400KV / 2600KV Fully Enclosed Brushless Motor for 45S FPV Drones

The BrotherHobby Venom 2206 fully enclosed motor is built for FPV pilots who demand top-tier power, reliability, and heat resistance in aggressive 4S5S racing or freestyle setups. With KV options of 1900KV, 2400KV, and 2600KV, this motor is engineered to fit a variety of FPV drone styles from cinematic cruising to high-speed racing.

Featuring a CNC-machined aluminum 7075 bell cap and base, titanium alloy shaft, and N52H arc magnets, this motor ensures outstanding structural integrity and magnetic performance. The 0.15mm Nippon Steel silicon stator paired with Japanese NSK 834mm bearings guarantees smooth operation and excellent durability.

Key Specifications

• KV Options: 1900KV / 2400KV / 2600KV

• Configuration: 12N14P

• Input Voltage: 4S5S LiPo

• Rotor: N52H arc magnets

• Stator: 0.15mm Nippon Steel silicon steel

• Shaft: Titanium alloy shaft

• Bearings: Japanese NSK 834mm

• Wire: 20AWG silicone wires, 16cm length

• Bell Cap: CNC Aluminum 7075

• Base Casing: CNC Aluminum 7075

• Prop Adapter Shaft Thread: M5

• Bolt Pattern: M3 (16x19mm)

• Weight: 35.7g (with 16cm silicone wires)

Application

• Optimized for 5-inch FPV drones

• Suitable for freestyle, racing, and cinematic quad builds

• Compatible with 4S and 5S high-performance LiPo setups

Venom 2206 Motor: Ultralight, durable, high-speed, smooth. Specs: 1900-2600KV, 12N14P, N52H magnets, 0.15mm stator, titanium shaft, Japanese bearings. Weight: 35.7g with wires.
