Name: BrotherHobby SE 2816 810KV CW Brushless Motor 6S 12N14P, M5 Thread, 98.5g, HQ 10x5x3 Test
SKU: WKA86610369637
Availability: InStock

Description
Reviews (0)

Overview

BrotherHobby SE 2816 810KV Motor (CW) is a brushless motor designed for 6S LiPo setups. It features a 12N14P configuration, Al 7075 housing components, and an M5 prop adapter shaft thread.

Key Features

SUS420 heat-treated steel shaft
Al 7075 base casing and bell cap
N52H arc magnets (rotor)
Japanese NMB bearings (12 x 6 x 4)
0.2mm Kawasaki silicon steel stator material
18# wire, 25cm length

Specifications

Model	SE 2816
KV	810KV
Rotation	CW
No. of Cells (LiPo)	6S
Configuration	12N14P
Base casing	Al 7075
Bell cap	Al 7075
Stator	0.2mm Kawasaki silicon steel
Stator dimension	28.00 mm
Stator height	12 mm
Motor dimension	phi34 x 46.2 mm
Prop adapter shaft thread	M5
Shaft material	SUS420
Bolt pattern	M3 (19 x 19mm)
Bearings	Japanese NMB 12 x 6 x 4
Rotor / Magnet	N52H arc magnets
Wire	18# (25cm length)
Weight	98.5g
Weight including cable	98.45g
Internal resistance	74.60 mOhm
Idle current @ 10V	1.36A/10V
Insulation resistance	>= 0.5MOhm
Dynamic balance requirement standard	<= 3mg
Coil test	PASS

6S Prop Test Report (HQ 10x5x3)

Throttle	100%
ESC	6S 55A
Propeller	HQ 10x5x3
Max thrust	3538 gf
Max power	1302.72 W
Max current	55.20 A
Voltage (at 100%)	23.6 V
Thrust efficiency (at 100%)	2.72 g/W
Copper wire temperature	109C (ambient 30C)

Load Test Data (HQ 10x5x3)

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (g/W)
30	24.00	3.40	5123	482.00	81.60	5.91
40	24.00	6.20	6288	870.00	148.80	5.85
50	24.00	13.10	8159	1471.00	314.40	4.68
60	24.00	17.30	8792	1793.00	415.20	4.32
70	23.90	26.50	10163	2286.00	633.35	3.61
80	23.80	37.60	10935	2885.00	894.88	3.22
90	23.80	42.10	11613	3082.00	1001.98	3.08
100	23.60	55.20	12368	3538.00	1302.72	2.72

Temperature value is the inside copper wire temperature after running 2 minutes at 100% throttle. Test data is for reference only.

What’s Included

2816 motor x1
M3 x 8 screw x4
M5 flange nut x1

For installation questions or compatibility checks, contact support at https://rcdrone.top/ or [email protected].

Details

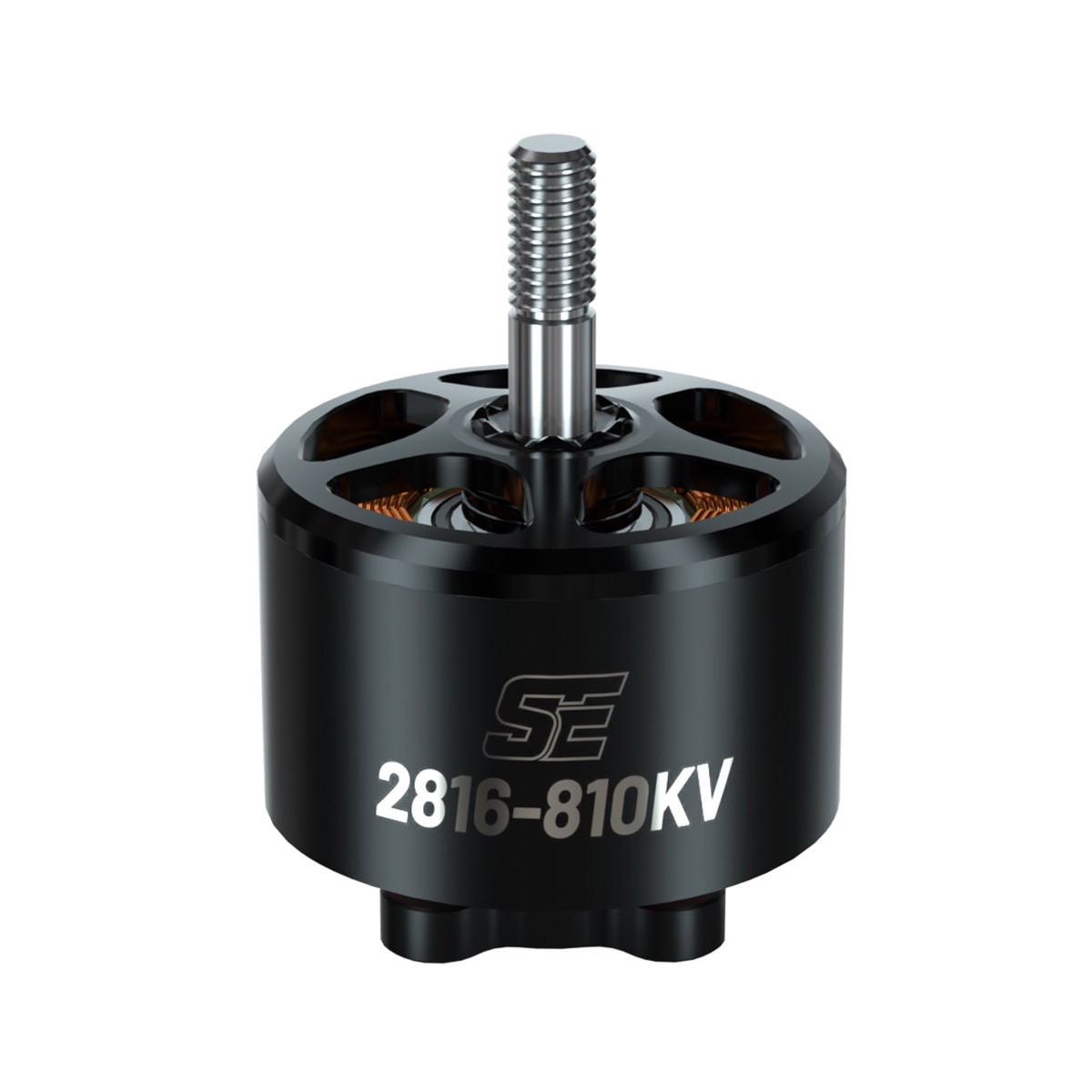

The BrotherHobby SE 2816 810KV CW brushless motor features a black can body with a silver shaft for straightforward installation.

BrotherHobby SE 2816 810KV motor specs list up to 3538g thrust at 100% throttle with an HQ 10x5x3 prop on 6S 23.6V (55A ESC), and a 98.5g motor weight.

The BrotherHobby SE 2816 810KV brushless motor is designed to pair with a 10-inch prop for high-speed flight.

The SE 2816 810KV motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H magnets, and 4M3 mounting for reliable builds.

BrotherHobby SE 2816-810KV brushless motor comes with four M38 screws and an M5 flange nut for mounting.

BrotherHobby SE 2816 810KV motor documentation includes a dimension drawing plus 6S test data with an HQ 10x5x3 prop.
