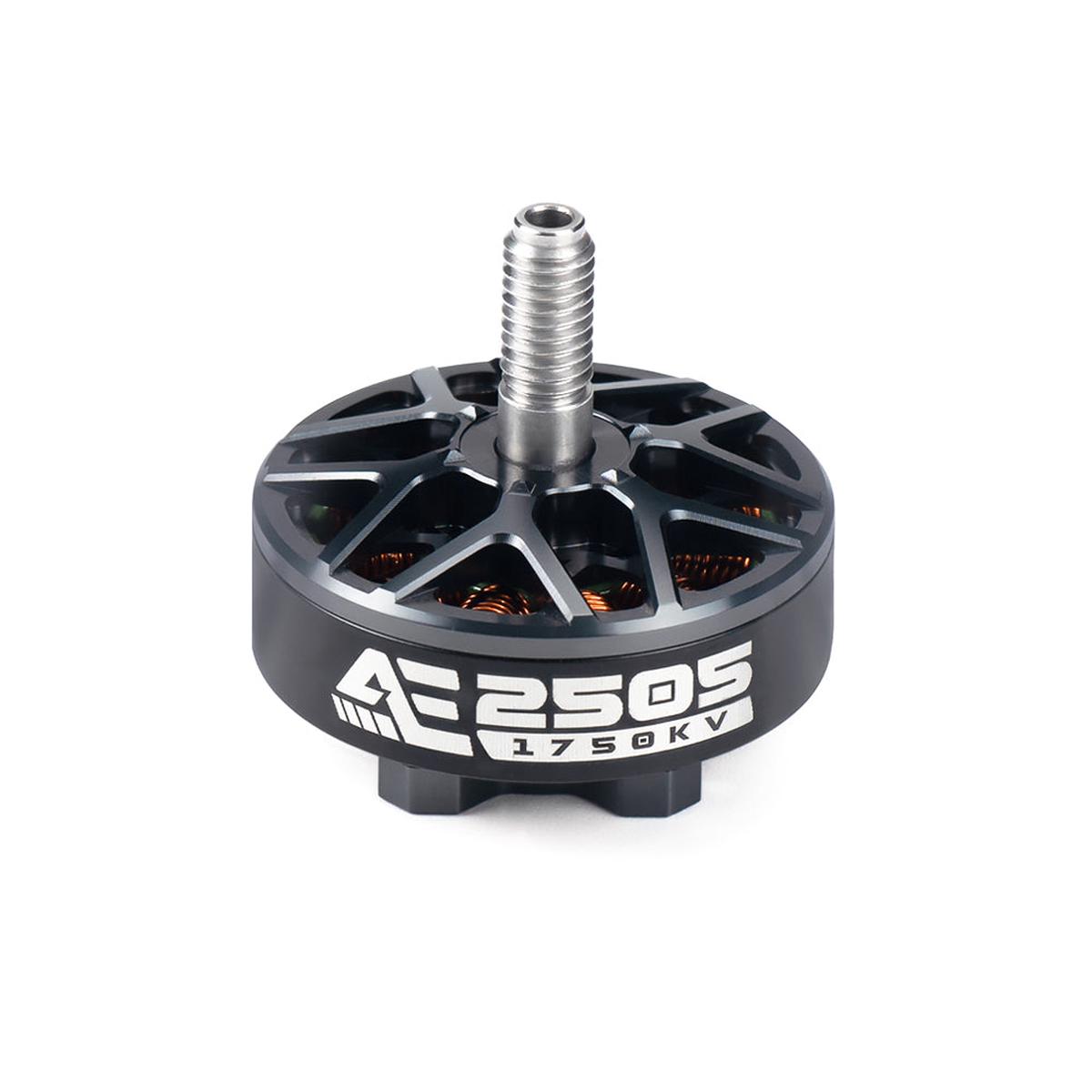

Name: Axisflying AE2505 AE Series FPV Motor 1750KV/2050KV, 12N14P, 6S, 30.531mm, 5mm Shaft, 37.2g/37.5g
SKU: HDPQ2178422
Availability: InStock

Description
Reviews (0)

Overview

Axisflying AE2505 from the AE series is a high-performance FPV motor designed for freestyle builds. Available in 1750KV and 2050KV options, the motor uses a 12N14P stator/rotor configuration and is rated for 6S operation. Testing data and specifications below are extracted from the product images to support component selection and performance planning.

Key Features

FPV motor for freestyle with two KV options: 1750KV and 2050KV
12N14P design, 5mm shaft, and 30.531mm size
20# 155mm silicone lead wires
Detailed thrust, current, power, efficiency, and temperature data across multiple props

Specifications

Common parameters

Size	30.531mm
Shaft Diameter	5mm
Slot poles	12N14P
Rated Voltage	6S
Silicone line	20# 155mm

Variant: 1750KV

Internal resistance	72.87m
Weight (wire included)	37.20g
Test propellers	51466 V2 / HQ 633 / HQ MCK
Max Power (per test prop)	829.11W / 920.96W / 767.66W
Max current (per test prop)	32.68A / 39.82A / 32.30A
Current without payload (10V)	1.27A
Max force (per test prop)	1232.07g / 1241.87g / 1111g

Variant: 2050KV

Internal resistance	54.47m
Weight (wire included)	37.50g
Test propellers	51466 V2 / 51366 / HQ MCK
Max Power (per test prop)	1093.8W / 963.34W / 981.25W
Max current (per test prop)	47.66A / 41.73A / 41.33A
Current without payload (10V)	1.36A
Max force (per test prop)	1421.71g / 1265g / 1301.5g

Testing Data (100% throttle)

AE2505 1750KV

Prop	Voltage (V)	Current (A)	Thrust (g)	RPM	Power (W)	Efficiency (g/W)	Ambient (C)	Motor Internal (C)
51466 V2	23.23	35.68	1232.07	29968	829.11	1.49	35.5	64.8
HQ 633	23.13	39.82	1241.87	27670	920.96	1.55	35.5	76.0
HQ MCK	23.76	32.30	1111.00	32293	767.66	1.48	36.0	62.6

AE2505 2050KV

Prop	Voltage (V)	Current (A)	Thrust (g)	RPM	Power (W)	Efficiency (g/W)	Ambient (C)	Motor Internal (C)
51466 V2	23.09	47.66	1421.71	32188	1093.8	1.32	35.5	79.7
51366	23.09	41.73	1265.00	33681	963.34	1.32	35.5	67.3
HQ MCK	23.74	41.33	1301.50	35008	981.25	1.33	36.0	60.0

Applications

Freestyle FPV builds using the tested propellers (51466 V2, HQ 6*3*3, 51366, HQ MCK) on 6S power systems.

Whats Included

AE2505 AE series motor (KV as ordered)
Accessory set as pictured: mounting screws, prop nut, spacer and washer

Details

Axisflying AE2505 motor offers dual flight modes for smooth or powerful performance.

AE2505 FPV motors in 1750kv and 2050kv variants offer precision response and high torque. Features include laser-linear throttle, low-RPM stability, power efficiency, anti-desync design, cinema-smooth mode, aggressive tuning, snappy response, oversized stator, and zero desync guarantee.

Axisflying AE2505 FPV motor specifications: two KV versions (1750, 2050), 12N14P slots, 30.531mm size, 5mm shaft, 6S rated voltage, silicone wire 20# 155mm, weight 37.237.5g, max power up to 1093.8W, max force up to 1421.71g.

Testing data for 2505 1750KV motor with various props: 51466 V2, HQ 6*3*3, HQ MCK. Includes throttle, voltage, current, thrust, RPM, power, efficiency, and operating temperatures at different load levels.

Performance data for Axisflying AE2505 motor with various propellers at different throttle settings, including voltage, current, thrust, RPM, power, efficiency, and operating temperatures.

Axisflying AE2505 1750KV motor with screws, nut, washer, sticker, packaging. Includes product list and safety information.
