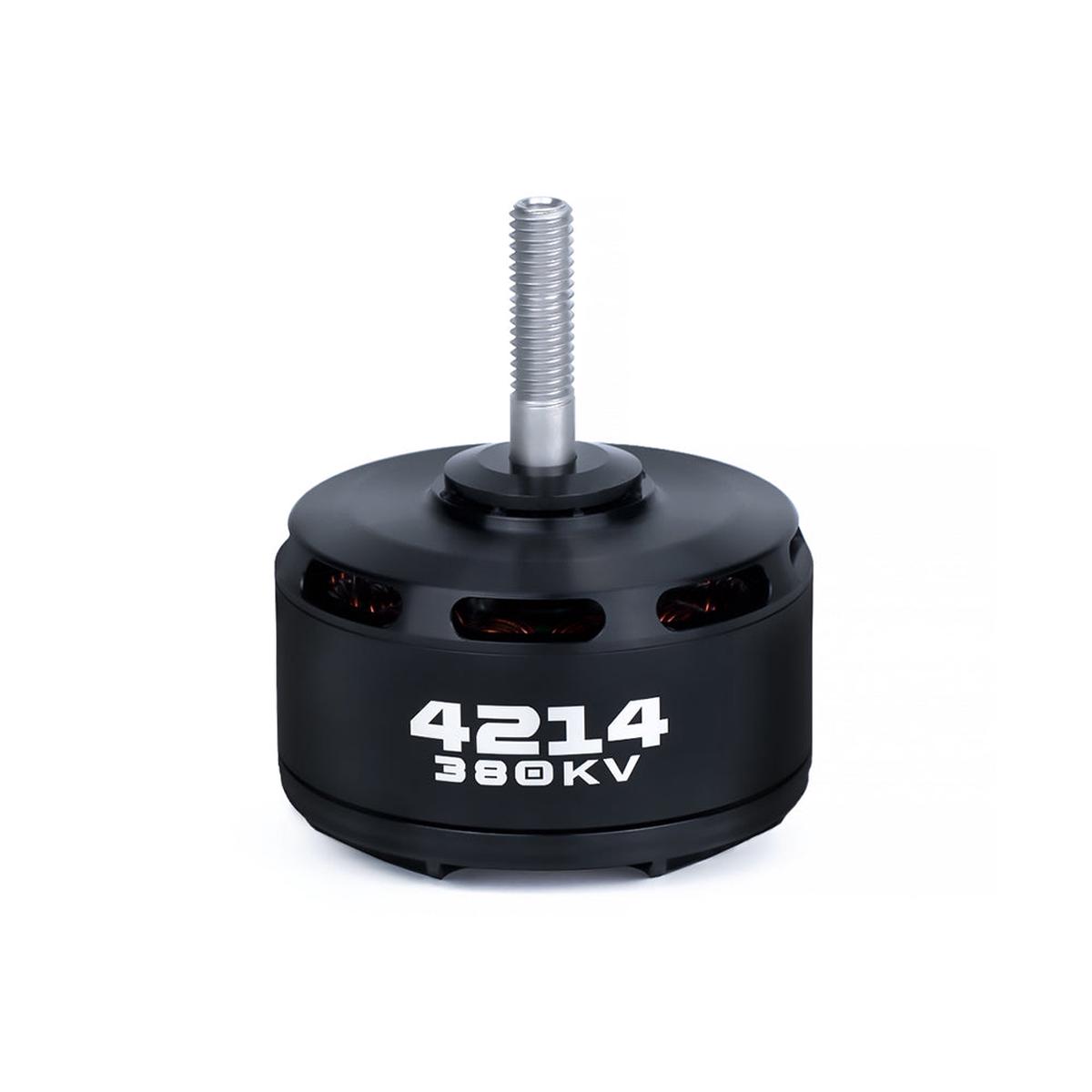

Axisflying 4214 380KV FPV Motor for 13-inch Props | 49×32.5mm, 6mm Shaft, 6~12S, 65A Peak, 4.58kg Thrust

Overview

The Axisflying 4214 380KV brushless fpv motor is built for 13-inch propeller drones used in cinematic, long-range, and loading applications. It features a 12N14P configuration, wide 6~12S operating range, and high thrust and power output suited to heavy-lift FPV builds.

Key Features

• 4214 stator class, 380KV
• Configuration: 12N14P
• Size: 49×32.5mm compact motor body
• 6mm shaft diameter with M6 prop shaft thread
• Silicone wire: 14# 800mm
• Rated for 6~12S
• Peak current: 65A; Max power: 1616.9W
• Max thrust: 4582.4g (per test data)
• Idle current: 1.0A/10V
• Mounting pattern from drawing: 30, 4M4 countersunk 4.5

Specifications

Mechanical Drawing Highlights

• Body diameter: 49
• Motor height: 32.5mm
• Prop shaft thread: M6
• Shaft diameter: 6; exposed shaft length: 18mm
• Mounting: 30 circle, 4M4 countersunk 4.5

Performance Test Data

Measured at approximately 32V input.

• GEMFAN 1308: 100% throttle Thrust 4470.5g, Current 39.940A, RPM 10132, Power 1268.4W, Efficiency 3.525 g/W.
• GEMFAN 1310: 100% throttle Thrust 4535.8g, Current 47.54A, RPM 9582, Power 1507.5W, Efficiency 3.009 g/W.
• HQProp 13x9x3V2: 100% throttle Thrust 4582.4g, Current 51.056A, RPM 9299, Power 1616.9W, Efficiency 2.834 g/W.

Applications

• 13-inch FPV drone builds
• Cinematic platforms
• Long-range cruisers
• Payload and loading-focused setups

Details

Axisflying 4214 380KV FPV motor specs: 12N14P configuration, 6mm shaft, 54m resistance, 6-12S voltage, 1616.9W max power, 4582.4g thrust, 65A peak current, 1.0A idle at 10V.

Test data for Axisflying 4214 380KV FPV motor with three propellers: GEMFAN 1308, GEMFAN 1310, and HQProp 13x9x3V2. Includes throttle, voltage, current, thrust, RPM, power, and efficiency across various load conditions.
