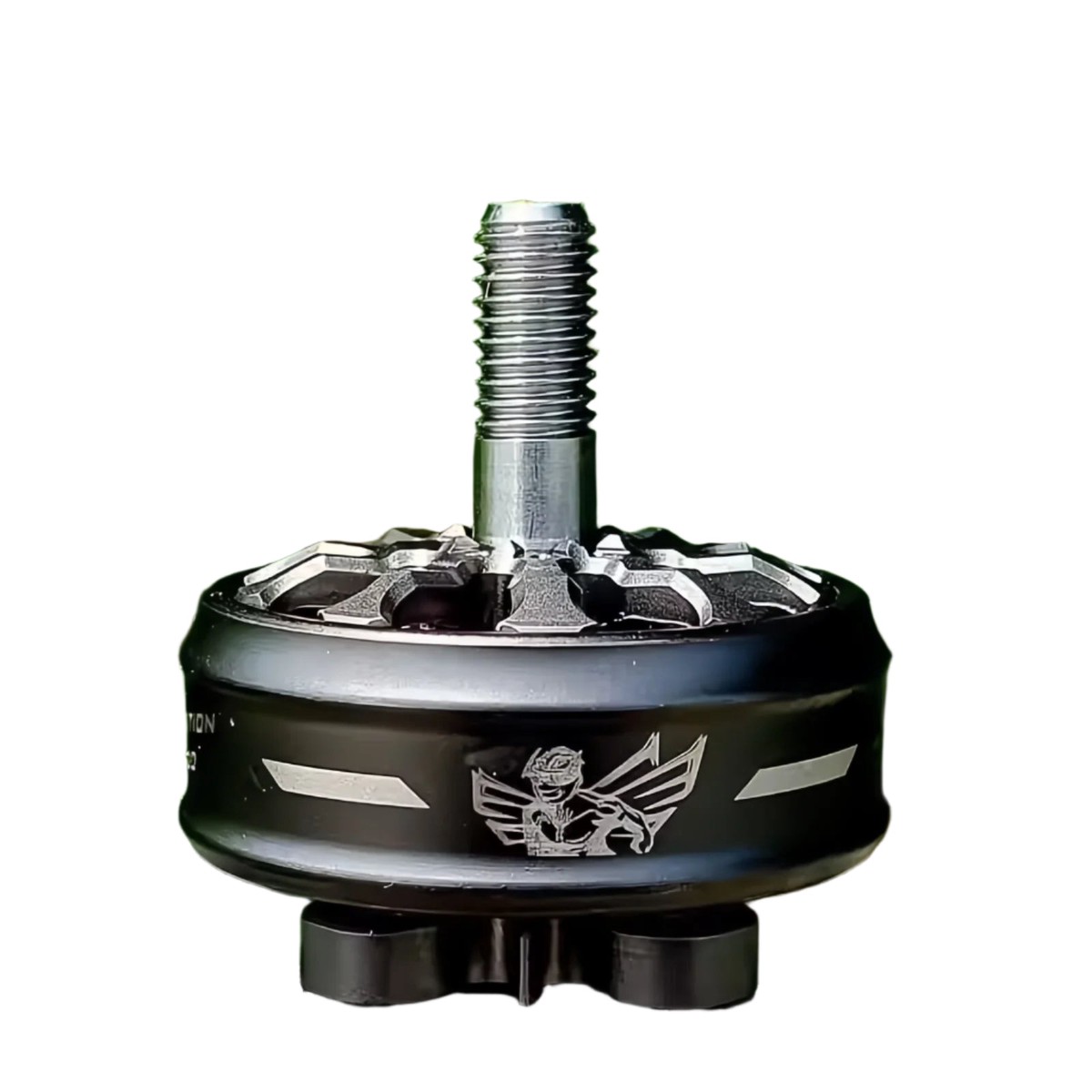

AMAX 2005 Competition Brushless Motor 1350KV2800KV 3-6S for FPV Racing Cinewhoop Freestyle RC Drone Plane

Overview

The AMAX 2005 Competition Brushless Motor series is engineered for top-tier FPV performance, offering unmatched durability, torque, and flight control. With a wide KV range from 1350KV to 2800KV, these motors support 3-6S LiPo setups and are perfect for freestyle, racing drones, cinewhoops, and fixed-wing aircraft. Built with AMAX-Lock-Bell technology, military-grade windings, and Japanese bearings, this motor is designed for pilots who demand reliability and peak performance.

Key Features

• Wide KV Selection (1350 / 1550 / 1700 / 1950 / 2250 / 2500 / 2800):

  • 1350KV1550KV: Ideal for smooth cruising and 6S long-range flights

  • 1700KV1950KV: Balanced power for freestyle & cinewhoop use

  • 2250KV2800KV: High-speed setups for 3S4S agile racers or planes

• AMAX-Lock-Bell Design

  • Compact, no-parting bell for shock resistance

  • CNC-machined 7075 aluminum

  • Enhanced crash and cooling zones

  • Anti-drop protection and dynamic balancing

• Premium Internal Components

  • Japanese Kawasaki laminations

  • 260C high-temp copper windings

  • IP54 waterproof & dustproof Japanese bearings

  • Heat-resistant curved magnets with tight air gaps

• Base & Structural Enhancements

  • Thicker base with long thread holes

  • AMAX cooling fins & silicone cables

  • Vibration-resistant structure with optimized airflow

Technical Specifications

Applications

• 35 FPV Racing Quads

• Cinewhoops

• Long-range Cruisers

• Fixed-wing RC Planes

Why Choose AMAX 2005 Competition Motors?

• Best-in-class durability and cooling

• Ideal for pilots pushing limits in freestyle, racing, or cinematic flying

• Extended lifespan thanks to waterproof and dustproof design

• Seamless performance under high current load

AMAX 2005 motor: shock-resistant, no parting bell, low-profile design, 7075 aluminum, dynamic balance, rainproof, integrated bearing protection, reliable rubber ring/washer for safety.

AMAX 2005 motor has enhanced crash area, more cooling, and scratch-resistant surface.

AMAX 2005 motor includes extra-thick base, longer thread holes, cooling fins, 7075 aluminum, heat-resistant silicon cables. Curved magnets with anti-slip ring ensure a super tight air gap for efficiency.

AMAX 2005 motor includes Kawasaki stator, sealed windings, 260C heat resistance, thick copper wires, and enhanced cooling for efficiency.

AMAX 2005 motor with hidden bearing, IP54 protection, Japanese bearings for longevity.

AMAX 2005 motor includes titanium shaft, half hollow design, screw fixation for easy maintenance, and anti-slip spikes to lock the propeller securely.

AMAX 2005 motor specs: 12N14P, 570W peak power, 450W continuous, 150mm cable, 24g with cables, 22g without.

AMAX 2005 motor data: 12V, 3S LiPo. Propeller options with kv ratings. Throttle range from 30% to 100%. Includes current, thrust, power, efficiency, and temperature details. Ideal for performance analysis.

AMAX 2005 motor data: 12V (7×4 prop) and 16V (3.5×2 prop), varying throttle. Includes current, thrust, power, efficiency, temperature at different RPMs.

AMAX 2005 motor data: 16V, 4S LiPo. Two propellers (4×2.5 and 5×3) demonstrate current, thrust, power, efficiency, and temperature at different throttles. Efficiency drops with higher throttle settings.

AMAX 2005 motor data: 16V, 4S LiPo. Two propellers (6×3, 7×4) with varying RPM/volt, throttle settings, current, thrust, power, efficiency, and temperature at 10 seconds. Detailed performance metrics provided.

AMAX 2005 motor data: 24V, 3×2 prop, 3150 kV. Throttle from 30% to 100%, current 4-18A, thrust 406-1079g, power 115-414W, efficiency 3.53-2.61 g/W. Temperature reaches 62C at 100%.

AMAX 2005 motor data: 24V, 6S LiPo, 3.5×2 prop, 2800 kV. Throttle from 30% to 100%, current 7-27A, thrust 481-1267g, power 161-621W, efficiency 2.99-2.04 g/W. Temperature reaches 68C at 100% throttle.

AMAX 2005 motor data: 24V, 6S LiPo, 4×2.5 prop, 2500 kv. Throttle from 30% to 100%, current 3.5-16A, thrust 365-1152g, power 81-368W, efficiency 4.53-3.13 g/W, temp 68C at 100%.

AMAX 2005 motor data: 24V, 6S LiPo, 5×3 prop, 1950 kV. Throttle from 30% to 100%, current 4-18A, thrust 458-1308g, power 92-414W, efficiency 4.98-3.16 g/W, temp 66C at 100%.
