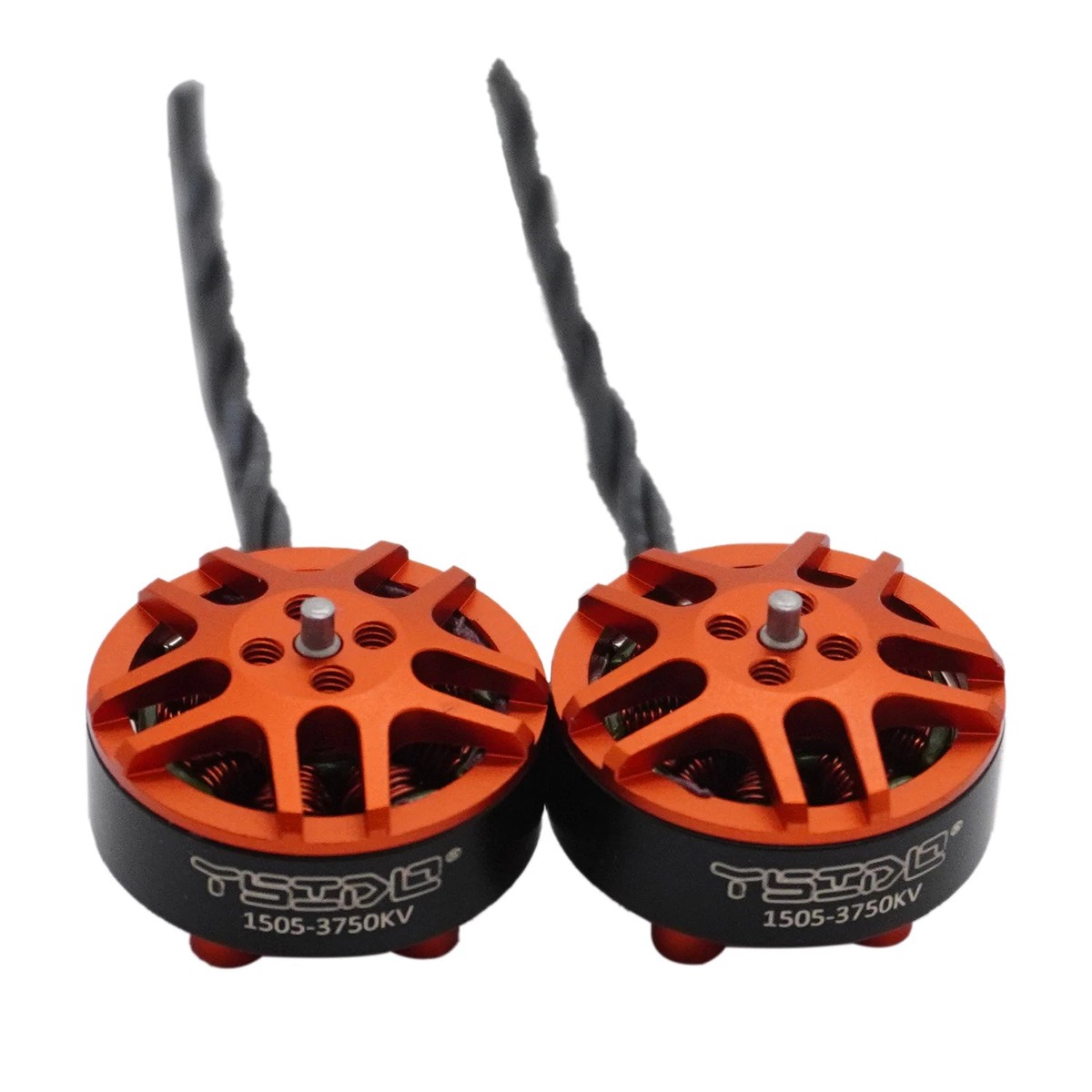

YSIDO 1505 2650KV 3750KV 3-6S Brushless Motor Set for 2.53.5Inch Cinewhoop FPV Racing Drones (4PCS)

The YSIDO 1505 Brushless Motors are high-performance, lightweight power solutions for FPV racing and cinematic drones. Available in 2650KV (4-6S) and 3750KV (3-4S) variants, these motors are optimized for 2.5″3.5″ cinewhoop builds, delivering efficient thrust, excellent thermal control, and reliable performance even at high throttle.

Key Features:

• KV Options: 2650KV (46S) / 3750KV (34S)

• Stator Size: 21.3mm diameter 9.5mm length

• Shaft Diameter: 1.5mm

• Motor Dimensions: 21.3 16.5mm

• Weight: 11g

• Mounting Pattern: 12mm (4 M2)

• High Efficiency: Up to 3.39 g/W

• Prop Compatibility: GF3520, GF4024

• Advanced Cooling: Supports long throttle durations with controlled temperatures (max ~70C)

• Durability: Engineered with 9N12P configuration and low internal resistance for smooth, long-lasting operation

Performance Overview:

Thrust Test Highlights:

1505 2650KV (24V)

• Max Thrust: 631g @ 11.7A

• Max Power: 280.8W

• Prop: GF4024

1505 3750KV (16V)

• Max Thrust: 631g @ 18.5A

• Max Power: 288.4W

• Prop: GF4024

Package Includes:

• 4 YSIDO 1505 Brushless Motors (KV as selected)

YSIDO 1505 KV2650 brushless motor, 9N12P configuration, 21.3mm diameter, 9.5mm length, 11g weight. Max power 336W, max current 14A, efficiency up to 3.13 g/W. Detailed specs and performance data included.

YSIDO 1505 3750KV motor specs: KV 3750, 9N12P config, 21.3mm diameter, 16.5mm length, 11g weight, 3-4S Lipo, 200W max power, 96m resistance, 18A max current. Performance data for various voltages and throttles included.

YSIDO 1505 brushless motor, 2650KV/3750KV, 3-6S. Orange and black design, detailed dimensions provided. Ideal for high-performance applications.
