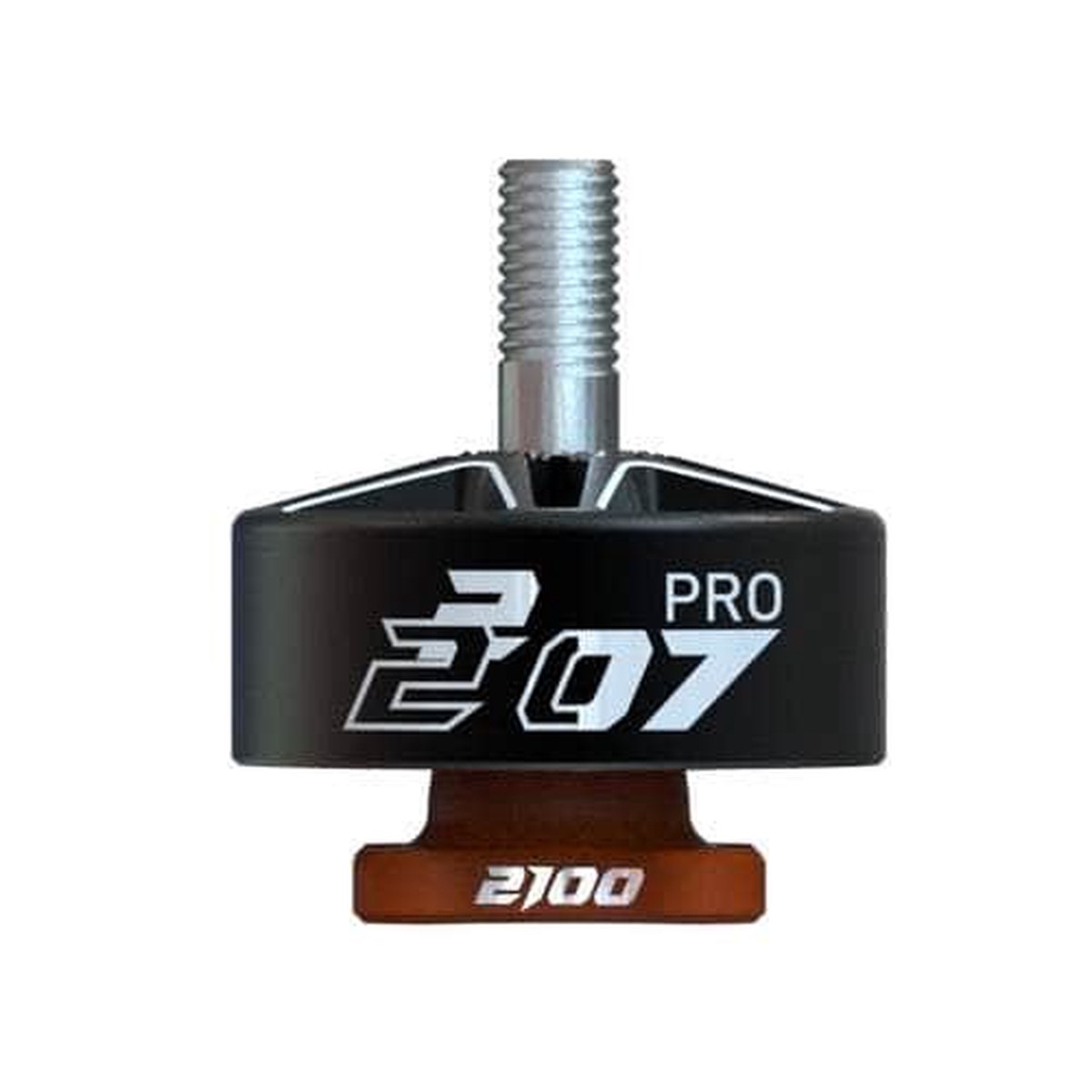

VCI Spark 2207 Pro 1950Kv Motor

The Spark 2207 High Performance Racing Motor is designed with the world’s fastest pilots in mind, this motor redefines speed, reliability, and precision for pilots of all levels.

Experience the future of motor technology with Vulcan Innovation. Elevate your FPV experience and be part of the elite. Welcome to a new era of speed and precision.

Vulcan Innovation stands as a beacon of excellence in motor manufacturing, boasting a team of engineers whose expertise rivals the most seasoned professionals in the industry. While they may be a new brand, they are far from new to the realms of design, engineering, and manufacturing.

Check out ourvast brushless motors selection, as well as other VCI Hobby Products!

Features

• New and upgraded for version with greater power!
• One of a kind stator with 0.1mm Japanese silicon steel sheet, that can lower the operating temperature to optimize the performance.
• Top-notch 240 enameled wire with that lowers internal resistance can improves the overcurrent capacity.
• 7075 Aviation Aluminum, TC4 Titanium Alloy Shaft, TC4 Titanium Alloy Lock Shaft Screw.
• Damping rubber ring that reduces vibrations, and prolongs the motor’s life.

Specifications

• Configuration: 12S14P
• Internal Resistance: 60mO
• Shaft Length: 13.1mm
• Rated Voltage: 6S (24V)
• Peak Current: 44.15A
• Idle Current(10V): 1.0A
• Magnets: N52SH arc
• Stator Size: 22xL7mm
• Dimensions: 27xL33.2mm
• Shaft Diameter: M5
• Silicone Wire: 20AWG 150mm
• Max Instantaneous Power: 1059.6W
• Weight(Incl. Cable): 33.7g

Includes

• 1xVCI Spark 2207 Pro 1950Kv Motor
• 5x Mount Screws (Gold Color)
• 2x M5 Nylock Prop Nut
• 2x Spare Washers
• 1x Spare O-Ring
• 1x Spare Bell Screw
