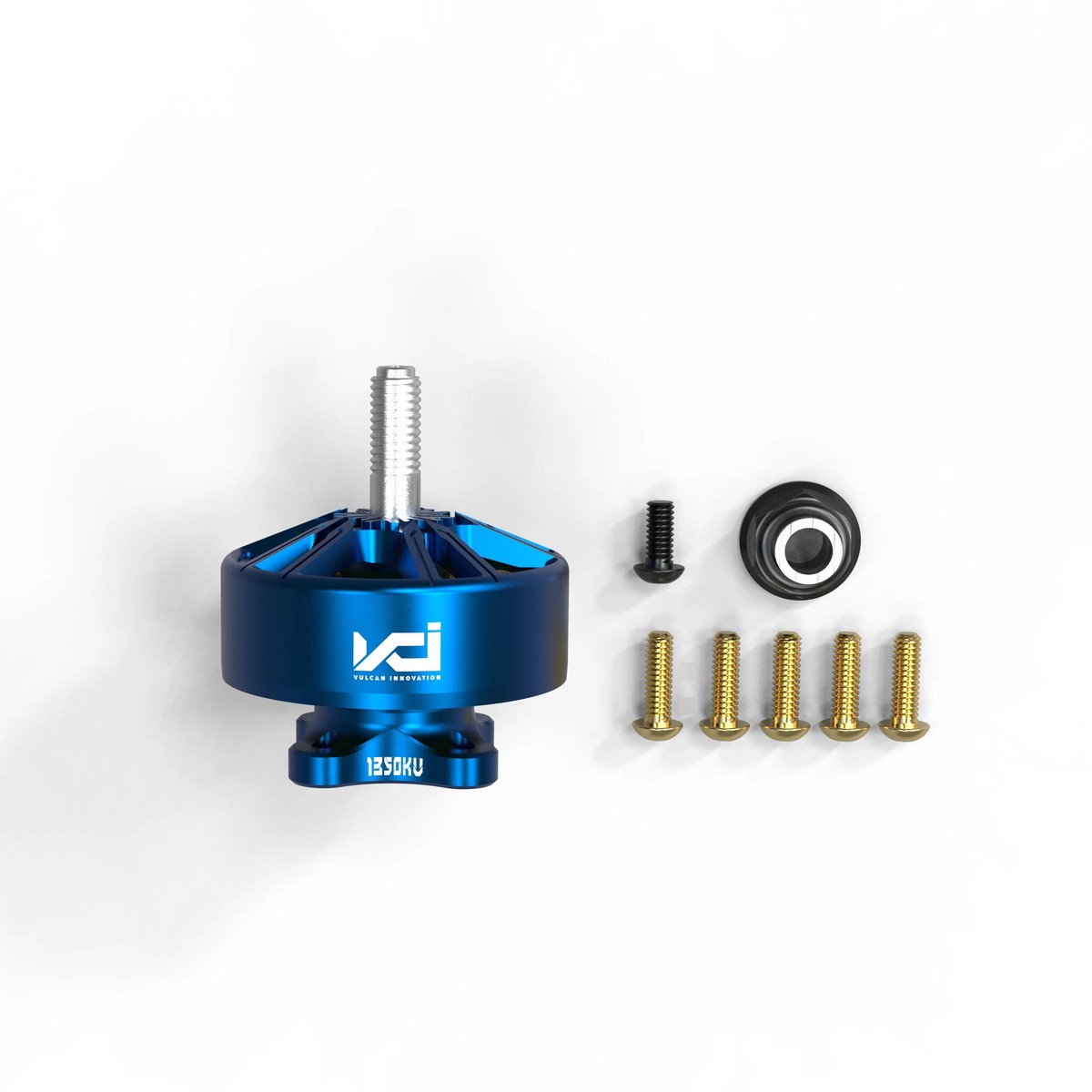

Name: VCI Hobby Ares 2808 1350KV FPV Racing Brushless Motor 1PC or 4PCS Set with Gemfan 7037 Props for 7-Inch RC Drones
SKU: WKA86610369200
Availability: InStock

Description
Reviews (0)

Overview

The VCI Hobby Ares 2808 1350KV Brushless Motor is purpose-built for 7-inch FPV racing drones, delivering lightweight design, robust construction, and high-efficiency power output. With premium materials like 7075 aviation-grade aluminum, TC4 titanium shaft, and NSK INMB bearings, the Ares 2808 is engineered for superior performance and durability in competitive racing.

Available as a single motor or a full set of four motors with matching Gemfan 7037-3 props, it offers flexibility for both DIY builds and complete upgrades.

Key Features

2808 stator size, optimized for 7-inch racing drones.
1350KV rating, best for 6S (24V) power systems.
Integrated high-strength rotor structure with surface PVD treatment.
High-temperature magnets for sustained performance under full throttle.
Japanese NSK INMB bearings for smoother operation and longer lifespan.
7075 aluminum motor housing and TC4 titanium shaft for durability.
Extremely lightweight: only 66g including wires.
Option to purchase 1PC motor or 4PCS set with Gemfan 7037 props included.

Specifications

Item	Specification
Model	Ares 2808-1350KV
KV Rating	1350KV
Configuration	12S14P
Internal Resistance	60m
Shaft Length	14.6mm
Shaft Diameter	M5
Rated Voltage	6S (24V)
Peak Current	44.04A
Idle Current (10V)	1.0A
Max Instantaneous Power	1056.96W
Weight (Incl. Cable)	66g
Stator Size	28L8mm
Dimensions	34.5L40mm
Wire Type	18AWG 300mm Silicone Wire

Performance Testing (With GF 7037-3 Propeller)

Throttle (%)	Current (A)	Thrust (g)	Efficiency (g/W)	Power (W)	RPM	Temperature (C)
30%	1.47	168g	4.76	35.28W	8663
40%	3.53	369g	4.36	84.72W	11186
50%	6.63	669g	4.20	159.12W	13133
60%	10.71	891g	3.47	257.04W	15143
70%	16.56	1221g	3.07	397.44W	17352
80%	24.24	1682g	2.89	581.76W	19391
90%	34.45	2061g	2.49	826.80W	21147
100%	44.04	2502g	2.37	1056.96W	22860	92C

Note: Testing data is for reference using GF 7037-3 propellers.

Racing Achievements

MultiGP Official 7-Inch Racing Certification Top 4 finisher with Ares motors.
Street League (SL) Championships 2nd place using VCI Ares motors, showcasing consistent RPM performance.

Purchase Options

Option 1:
- 1 Ares 2808-1350KV Brushless Motor (No Propeller Included)
Option 2:
- 4 Ares 2808-1350KV Brushless Motors
- 4 Gemfan 7037-3 Propellers (Included)

Application

7-inch FPV Racing Drones
Long-Range Freestyle Builds
Performance Upgrades for competitive racing drones

Ares 2808-1350KV motor specs: 1350KV, 60m resistance, 6S voltage, 44.04A peak current. Testing data includes thrust, efficiency, power, RPM at various throttle percentages with GF 7037-3 propeller.
