Overview

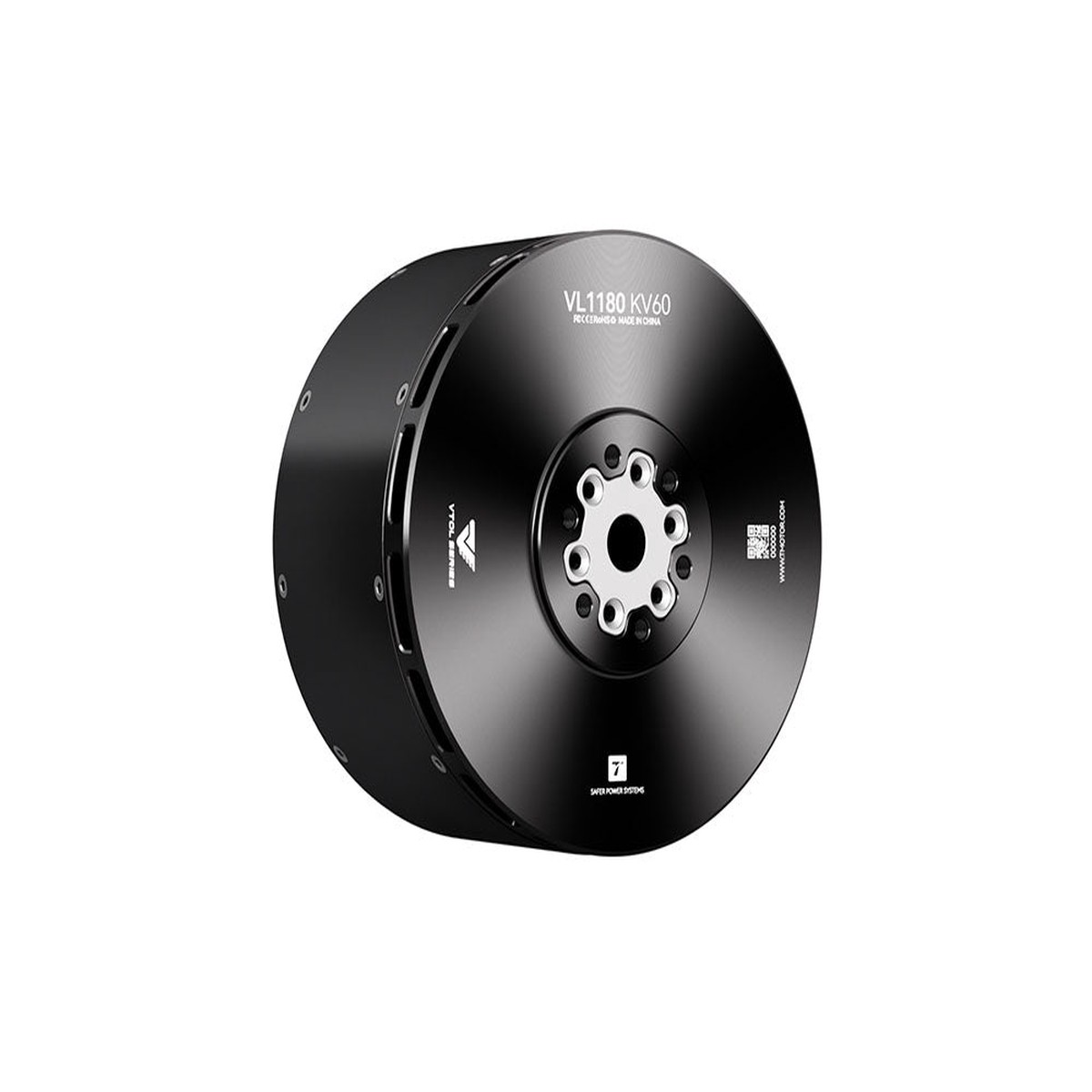

The T-Motor VL1180 KV60 is a VTOL UAV motor designed for high-thrust propulsion on 24S LiPo platforms, rated up to 88 kg max thrust per arm. It is part of the VL series propulsion system and is matched with the VL300A ESC and VZ45 propeller specifications provided below.

Key Features

Fast and economical propeller locking

360 custom angle propeller-locking helps avoid turbulence from rotor rotation and supports stable aerodynamic layout for fixed-wing aircraft.
Adaptive propeller locking: ESC adjusts current to control torque based on external force changes, reducing power consumption and heat.
Propeller-locking power consumption is approximately 10 W.

Protection and monitoring

Dust-proof mesh and optimized motor structure are stated to elevate protection to IP45 in the VL series feature description.
Motor specification lists IP rating as IPX5.
Temperature feedback & real-time monitoring (stable and controllable operation under high load).
Centrifugal cooling design: YES.

Specifications

Motor: VL1180 KV60

Model No.	VL1180 KV60	KV (RPM/V)	60
Motor Size	Dia. 120.5*96 mm	Configuration	36N40P
Rated Voltage (LiPo)	24S	Max Thrust	88 kg
Continuous Power (180 s)	4500 W	Peak Current	254 A
Idle Current (15 V)	4.2 A	Internal Resistance (25C)	14 m
Ambient Temperature	-30~55C	Motor Weight (Incl. Cable)	2680 g
Magnet Level	180C	Copper Wire	200C
Stator	150C high temperature-resisting coatings	Coil Insulation Test	1000 V/5 s
Shaft Diameter	IN: 17	Rotor Dynamic Balance Standard	20 mg
Bearing	Imported 6903	IP	IPX5
Lead Cable	Enameled wire 150 mm	Package Size	242152132 mm
Centrifugal Cooling Design	YES

ESC Specs: VL300A 24S

Model No.	VL300A 24S	Control	PWM/CAN
Max Voltage	108 V	Protocol	CAN
Peak Current (10 s)	300 A (open environment and temperature 60C)	Continuous Current	150 A (under certain heat dissipation conditions)
Propeller-Locking	Electronic propeller-locking	Standby Consumption	15 mA
Throttle Pos. Range	1100~1940 us (fixed)	Throttle Refresh Frequency	50~500 Hz
Throttle Response Speed	300 ms	Weight (Excl. Cable)	825 g
Encoder Cables	M6-4 aviation connector – 46510 mm	Output Cable	Silicone wire – black – 7AWG – 29010 mm
Input Cable	Silicone wire – red/black – 7AWG – 195015 mm	Signal Cable	Shielded cables – black – OD4.2 – 5C – 203015 mm – JP-3P*2

Prop Specs: VZ45

Model No.

VZ45*18 Inch (1143*457.2 mm)

Weight (Single Blade)

320 g

Recommendation

Voltage	24S	Max Thrust/Arm	88 kg
Recommended MTOW (Quad)	140~150 kg compound-wing

Technical Drawing Callouts (mm)

Motor	Dia. 120.5; length 96; 83.9; 3; Dia. 70; Dia. 50; Dia. 11; 16; 20; 6Dia. 10 deep 0.5; 6Dia. 5.1 through holes; 5M5; Dia. 34; 4M6
ESC	66; 148; 47; 164.5; 21; 157; 31.5; Dia. 3.2; terminals labeled GND/VCC; phase leads A/B/C
Propeller	1148.9; 94.1; 41.8; hub holes Dia. 34 / Dia. 11 / Dia. 5

For integration support (ESC setup, CAN/PWM wiring, or parts verification), contact support@ or visit https:///.

Whats Included

Packaging Box *1
VL1180 *1
Parts Bag *1

Downloads

VL1180 KV60 Specifications.pdf
VL1180-STEP.zip
TM-Link_V2.0 Upper Computer
TM_UAVCAN_V2.3 CAN Communication
User Manual
