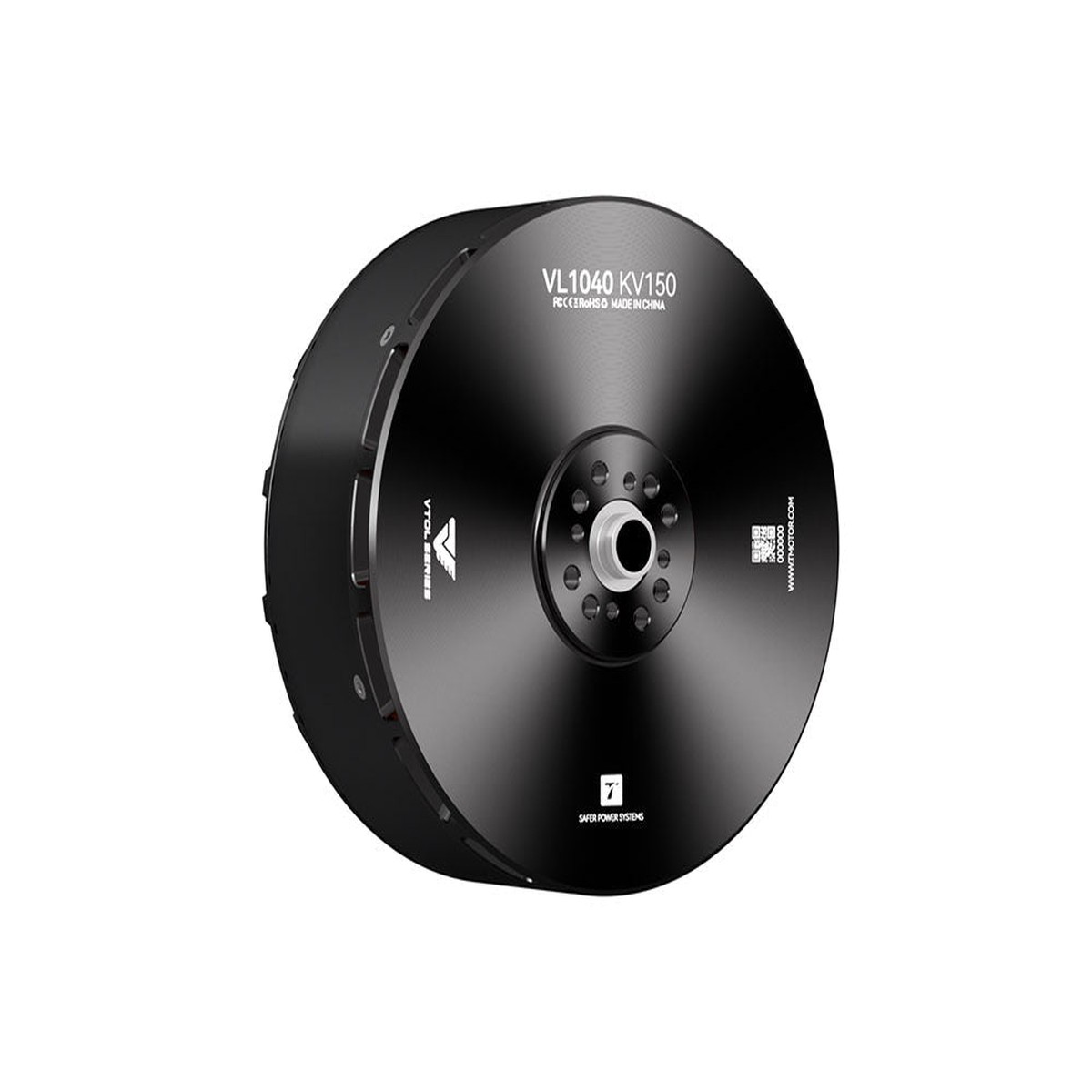

T-Motor VL1040 KV150 UAV Motor for VTOL Drone, 14S, 45kg Max Thrust, IPX5, 6570kg MTOW

Overview

The T-Motor VL1040 KV150 is a UAV motor for VTOL compound-wing (quad) platforms, designed for a recommended 65~70 kg MTOW setup. It is part of the VL Series propulsion system and is commonly paired with the VL248A 14S ESC and VZ32 propeller.

Key Features

• Fast propeller locking: 360 custom-angle propeller locking helps reduce turbulence and maintain fixed-wing aerodynamic layout; propeller can be locked in seconds.
• Economical (adaptive) propeller locking: ESC adjusts current to control torque based on external force changes, helping reduce power consumption and heat.
• Propeller-locking power consumption: approximately 10 W.
• Dust-proof mesh + optimized motor structure: designed to reduce dust ingress and support winding insulation performance and service life. (Promotional material references IP45; specification table lists IPX5.)
• Temperature feedback & real-time monitoring: designed to keep operation stable and controllable under high load.

Specifications

Motor (VL1040 KV150)

Motor Electrical / Performance

ESC Specs (VL248A 14S)

Prop Specs

System Recommendations

• Voltage: 14S
• Max thrust/arm: 45.7 kg
• Recommended MTOW (Quad): 65~70 kg (Compound-Wing)

Whats Included

• Packaging Box x1
• VL1040 x1
• Parts Bag x1

For product selection and integration support, contact [email protected] or visit https://rcdrone.top/.

Applications

• VTOL compound-wing UAV platforms (quad lift configuration)
• Multi-rotor propulsion setups requiring 14S-rated components

Manuals

• VL1040 KV150 Specifications (PDF)
• VL1040 STEP File (ZIP)
• TM-Link_V2.0 Upper Computer (EXE)
• TM_UAVCAN_V2.3 CAN Communication Protocol (PDF)
• User Manual (PDF)

Details

The T-Motor setup pairs a carbon-fiber propeller and motor with a finned V12 48A 14S ESC rated up to 1800W for clean, compact power delivery.

The T-Motor carbon fiber propellers lightweight weave finish helps keep your drone build clean and efficient.

The vented housing with protective mesh helps keep internal windings shielded while allowing airflow around the motor.

Detailed dimension and mounting-hole measurements help plan motor, ESC placement, and propeller fitment during installation.

The T-Motor VL1040 KV150 comes with a packaging box and a small parts bag including a mounting plate and screws for installation.
