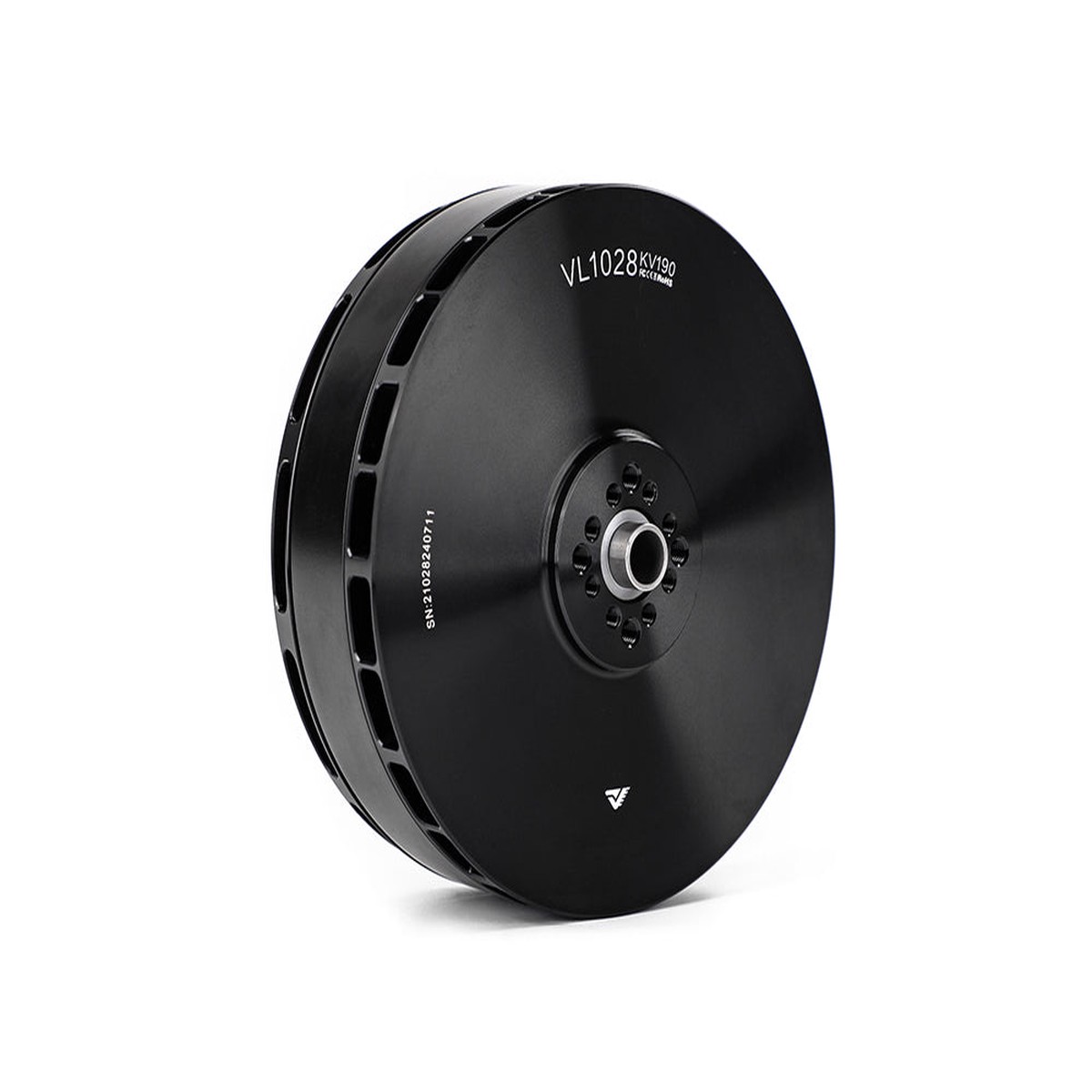

Name: T-Motor VL1028 KV190 Motor (12S) for VTOL UAV Propulsion System, V200A ESC, G29*9.5 Prop
SKU: WKA86610369774
Availability: InStock

Description
Reviews (0)

Overview

T-Motor VL1028 KV190 is a Motor designed for the VL Series Propulsion System used on VTOL UAV platforms. The system pairing shown includes the V200A ESC and G29 propeller, and supports fast and economical electronic propeller locking for efficient transitions and reduced power consumption.

For product selection, integration support, or bulk purchasing, contact [email protected] or visit https://rcdrone.top/.

Key Features

Fast propeller locking: 360 custom angle propeller-locking helps avoid turbulence caused by rotor rotation and helps keep fixed-wing aerodynamic layout unaffected.
Economical adaptive locking: ESC automatically adjusts current to control locking torque as external force changes, helping reduce power consumption and heat for energy saving.
Recommendation (system-level): 12S voltage, 28kg max thrust/arm, 45~50kg recommended MTOW (Quad).

Specifications

Motor (VL1028)

Model No.	VL1028	Magnet Level	180C
Motor Size	109.6*52.5mm	Lead Cable	Enameled wire 150mm
Stator	150C high temperature-resisting coatings	Copper Wire	220C
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic Balance Standard	<=15mg
Bearing	Imported 6901	IP	IPX5
Centrifugal Cooling Design	YES	Package Size	19014080mm

Motor Electrical (VL1028)

Model No.	VL1028	KV (RPM/V)	190
Rated Voltage (LiPo)	12S	Idle Current (15V)	3.8A
Internal Resistance (25C)	8m	Peak Current	180A
Continuous Power (180s)	3200W	Ambient Temperature	-30C~55C
Max. Thrust	25.6kg	Motor Weight (incl. cable)	940g

ESC (V200A) Specs

Model No.	V200A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	220A (Under certain heat dissipation conditions)	Propeller-locking	Electronic propeller-locking
Continuous Current	120A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black-24AWG-5C-42010mm-M6 aviation connector
Standby Consumption	<=50mA	Output Cable	Silicone wire-orange-14AWG-21010mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black-12AWG-114010mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded cables-Black-OD4.2-5C-77010mm-JP-3P*2-Black blank white-green yellow gray
Throttle Response Speed	300ms	Weight (incl. cables)	49510g

Propeller (G29) Specs

Model No.

G29*9.5 inch (736.6*241.3mm)

Weight (Single Blade)

955g

Whats Included

VL1028 1
Parts Bag 1

Applications

VTOL UAV propulsion builds using the VL Series Propulsion System (VL1028 motor + V200A ESC + G29 propeller)
Fixed-wing VTOL platforms requiring electronic propeller locking
Quad platforms (recommendation: 45~50kg MTOW)
