T-motor U8II-X ArmsetSPECIFICATIONS

Brand Name: T-MOTOR

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: ESC

Technical parameters: Value 2

Model Number: U8II-X

Package Includes:

U8IIX KV150 Alpha60A includes: U8II-X KV150+ Alpha60A 6S/LV

U8IIX KV150 w MF2815 includes U8II-X KV150+ Alpha60A 6S/LV+MF2815

U8IIX KV190 Alpha60A includes: U8II-X KV190+ Alpha60A 6S/LV

U8IIX KV190 w MF2815 includes U8II-X KV190+ Alpha60A 6S/LV+MF2815

U8IIX KV85 Alpha60A includes: U8II-X KV85+ Alpha60A 12S/HV

U8IIX KV85 w MF2815 includes U8II-X KV85+ Alpha60A 12S/HV+MF2815

U8IIX KV100 Alpha60A includes: U8II-X KV100+ Alpha60A 12S/HV

U8IIX KV100 w MF2815 includes U8II-X KV100+ Alpha60A 12S/HV+MF2815

Some arm sets are not in stock, there leadtime will be about 7-20 days.
Please contact us before you you make purchase of our ARMSET.

AND inform us the color and rotation you need.

CW rotation, red LED:

CCW rotation, red LED:

CW rotation, green LED:

CCW rotation, green LED:

Tube size: 25mm or 30mm.

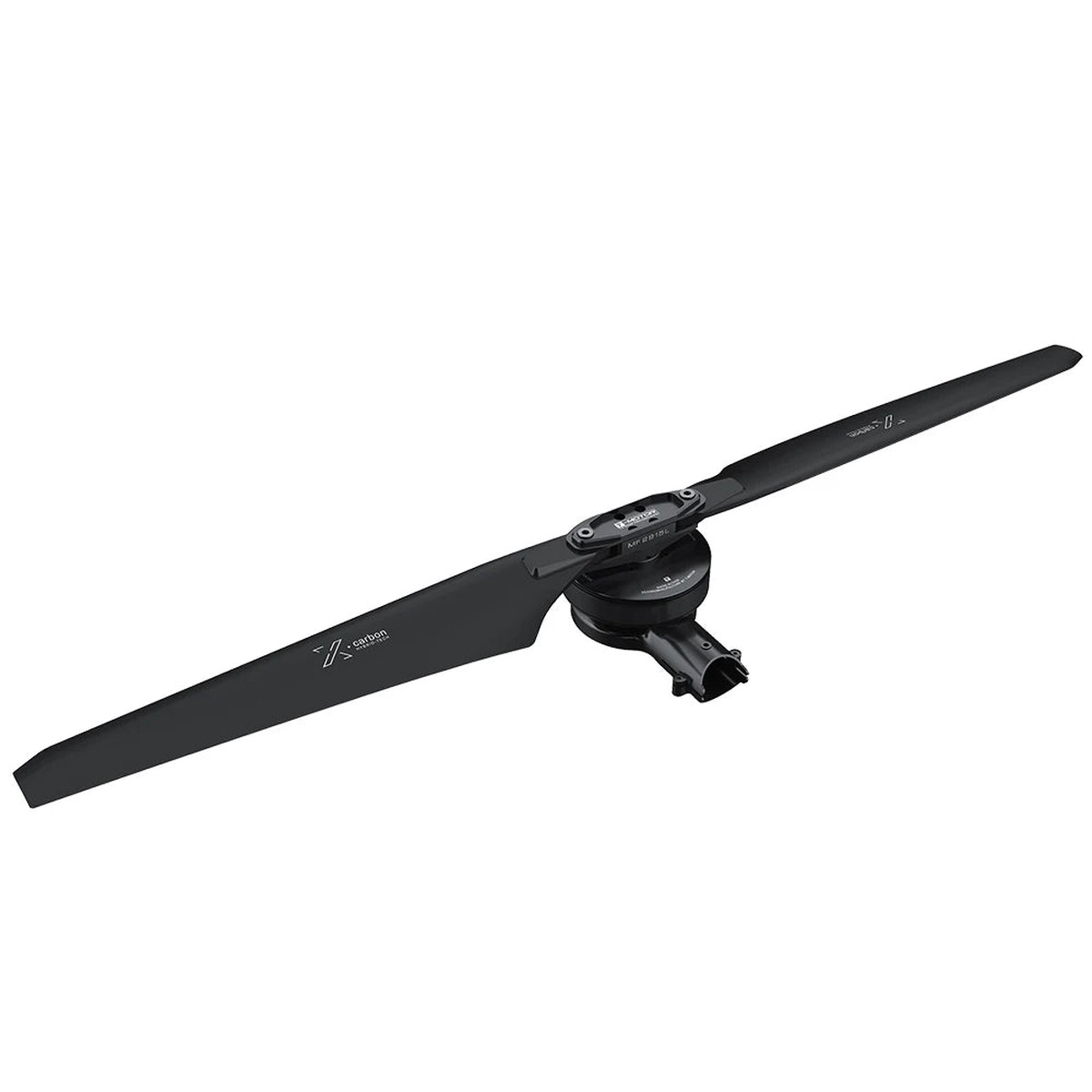

The U8II-X arm set series features an integrated propulsion system, including motors, FOC ESCs, and X:carbon props, designed for industrial drones. The available tube sizes are 30mm and 25mm, with an adapter ring allowing for easy switching between them.

T-Motor U8II-X Arm Set includes an Integrated Propulsion System with a brushless motor, MNZ01-S U8II ESC (Electronic Speed Controller), Alpha 60A FOC ESC for efficient power management, and round polymer folding propellers in 12S configuration, with a total diameter of 26 inches.

The X-Carbon propeller series features a patented polymer design with high RPM capabilities, efficient performance, and robust power output. Carbon props come as standard, but other prop options from T-MOTOR are also available for customization.

The T-motor U8II-X Arm Set features smart and efficient FOC (sine wave) Electronic Speed Controllers (ESCs) that come pre-set to match eight 42-amp motors by default. The intelligent algorithm within these ESCs meets the demands of various applications.
