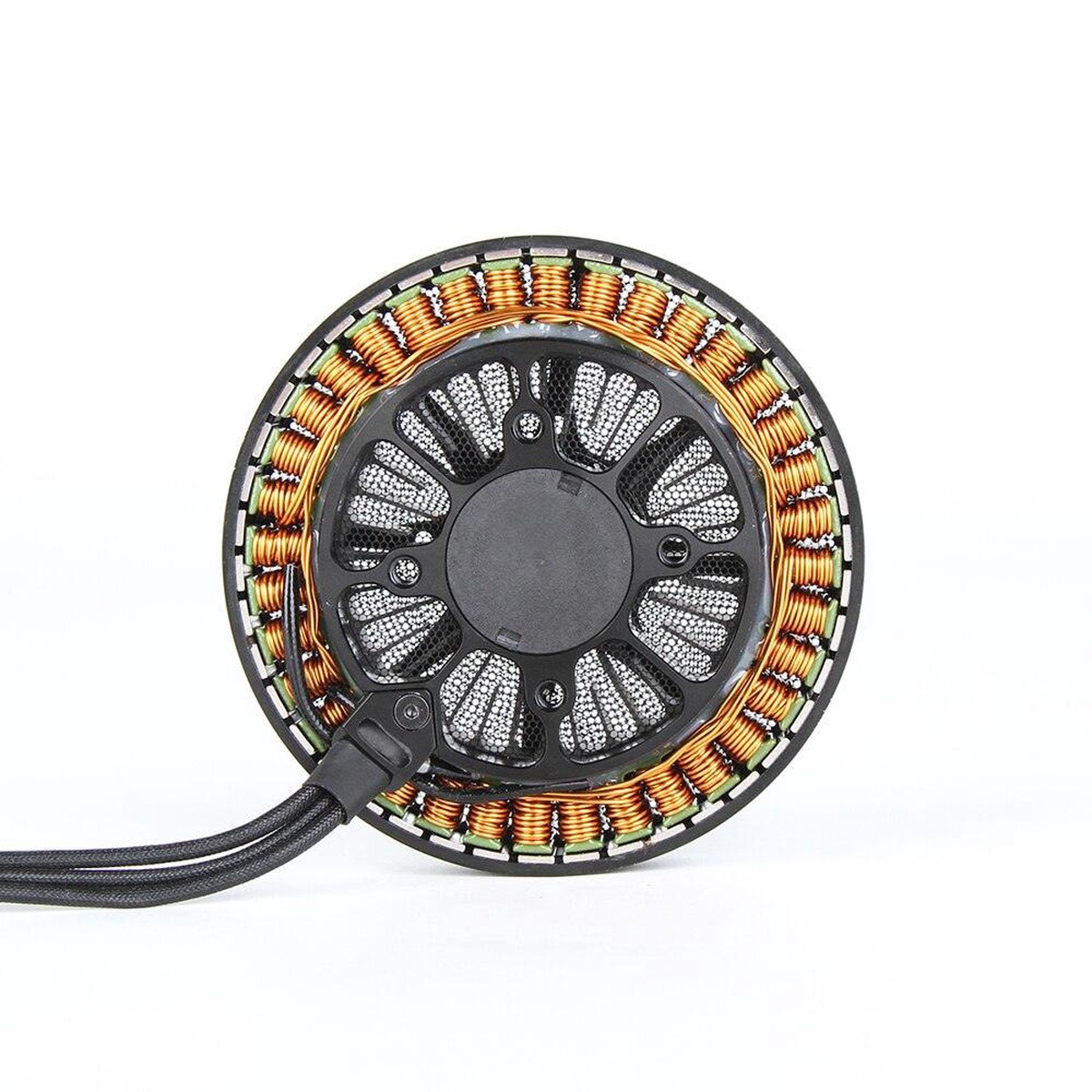

T-motor U8 Lite KV100 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: U8 Lite KV100

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

NEW ARRIVAL Efficiency increase 15%+ *14 Patents *Match with ultra-light props #Sine wave features #FOC ESC #Silver winding

The use of silver winding significantly minimizes copper loss, resulting in a 30% reduction in motor consumption. Additionally, the silver-coated wire surface enhances motor responsiveness, allowing for smoother and more precise control.

The maximum thrust of the new U8 motor has reached 7.3 kg, effectively doubling the aircraft’s payload capacity.

Obtained at a voltage of 32V, with a slow speed of 0.5W, this motor operates safely for 10 minutes thanks to our patented Motor Protection Technology, which shields it from damage caused by sand, dust, foreign matter, and magnetic particles during safe flight.

Featuring a special anti-rust treatment on its silicon steel sheet, this motor has demonstrated exceptional corrosion resistance, having successfully passed a rigorous 48-hour salt spray test.

The service life of this motor has been proven to exceed 1,500 flights, with each flight lasting approximately 40 minutes. Additionally, the redesign of our custom bearings ensures an extended lifespan of over 100 hours of normal operation.

Magnetic properties: Grade N42 SH, Grade N45 UH; Remanence (Br): 1.29-1.35 Tesla; Coercive force (Hc): 12.9-13.5 kGauss; Maximum Energy Product (BHmax): 13.2-13.8 kGauss. Operating temperature range: up to 150C or 180C.

The new ultra-light 28

No prop adapter is needed, and the weight has been reduced by 20g. For easy installation, be sure to secure the 2g location pin during setup. The carbon fiber propeller (11*14.5mm) features folding design and a 27-30

Specifications Diameter 87.1mm Height 27.05mm Shaft Diameter 1Smm Configuration 36N42P Lead Spec 9Omm Ingress Protection Level IP35 Packing Size 130*111*50.6mm 85 Rated Voltage (Lipo) 125 Motor Weight (Incl. Cable) 243g Propeller Recommendation 28-29″
