T-Motor U10II KV100 Multirotor UAV Motor – 10.6kg Max Thrust, IP45, 48V, 1500 Flights

Overview

T-Motor U10II KV100 is an efficiency-focused Multirotor UAV Motor for long-endurance multirotor platforms. The manufacturer states max thrust 10.6 kg (10600 g), 5% longer flight time, and a service life of 1500 flights (40 mins/flight), with additional design highlights including a redesigned iron core, sine wave features, and silver winding.

For compatibility questions or integration support, contact https://rcdrone.top/ or email [email protected].

Key Features

• Efficiency increase by 20%+
• 5% longer flight time
• Max thrust: 10.6 kg (10600 g)
• New iron core design
• Imported custom silver wires (manufacturer states reduced copper loss and helps lower motor heat by 30%)
• Motors work at ease in high temperature: centrifugal air-cooling system; operation stated for 50C environment
• Motor protection for safe flight; IP45; dust resistant & water proof
• New dust prevention network; dust prevention network diameter < 1 mm
• MTBF: about 1000 hours
• Industrial grade features stated: waterproof, dustproof, low noise, large bearings
• Imported custom bearings; dual bearing protection
• Iron core special anti-rust treatment; capability stated for passing 48h salt spray test
• Dual bearing caps stated for anti-rust and anti-corrosion; stated to pass through a 6h salt spray test
• No prop adapter required with 35 g weight reduction; easy installation (tip: do not forget the 2 g location pin during installation)

Specifications

Model / Core Specs

Flight Time / Power Ratio Comparison (48V, Propeller 30×10.5)

PS: Power ratio = ratio of max. thrust and motor weight.

Power / Thrust Chart Values

Magnet Grade Data

N45 UH Magnet Grade: high grade magnets ensures high efficiency in high temperature.

Installation / Hardware Text

Whats Included

• 1x T-Motor U10II Motor KV100
• 1x Hardware pack

Applications

• Long-endurance multirotor UAV platforms
• Surveying and mapping
• Aerial observation and inspection workflows

Matching Guide

• Propeller: T-Motor G30*10.5 (also referenced as G30*10.5″ CF prop)
• ESC: ALPHA 60A 12S ESC

Details

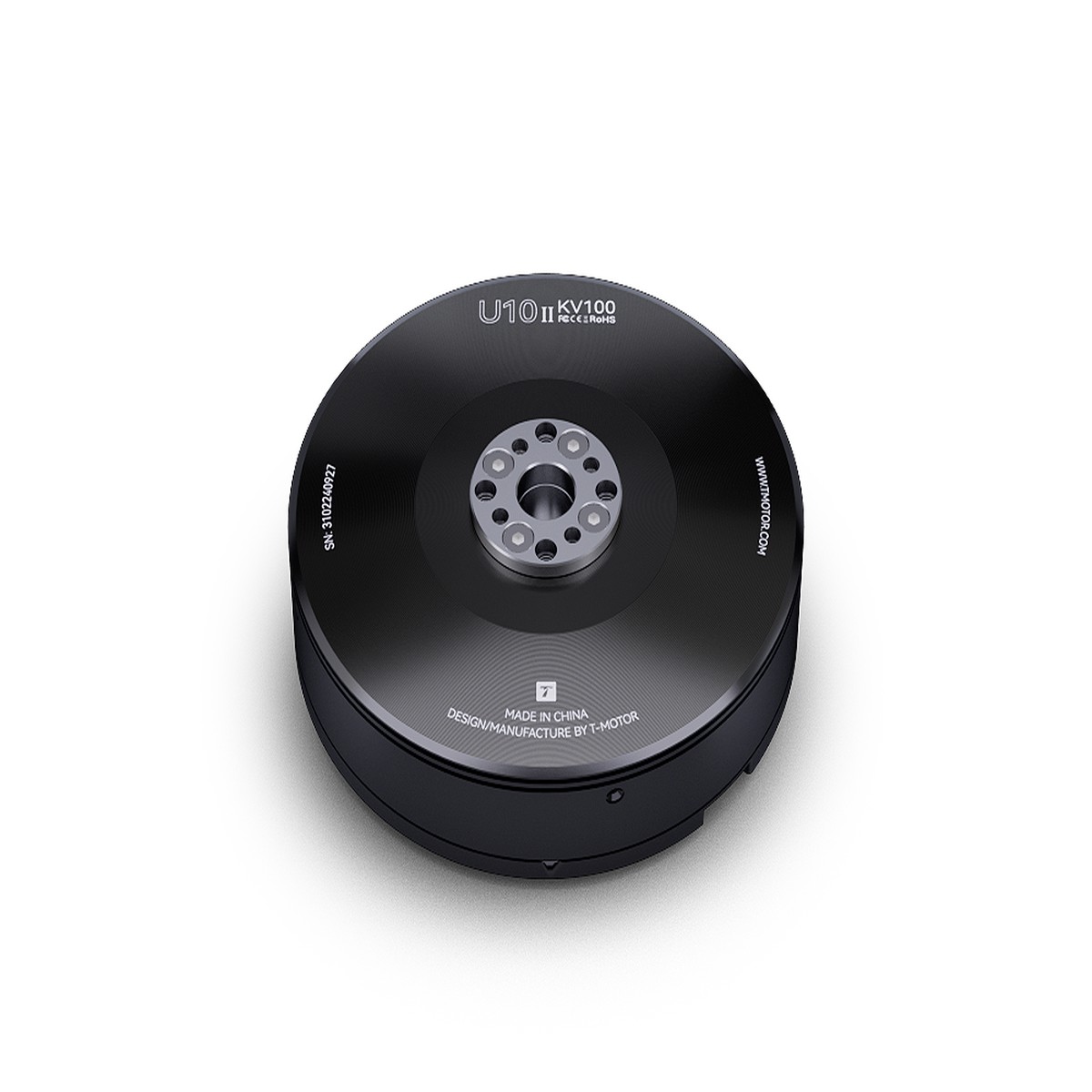

The T-Motor U10 II KV100 motor features a compact mounting hub and a single cable lead for clean installation.

Power ratio and key specs compare U10PLUS KV80, U10 KV80, and U10II KV100 at 48V with 30×10.5 propellers.

U10 series thrust and power figures list up to 10.6 kg (10,600 g) max thrust, with power values shown for U10, U10PLUS, and U10II.

T-Motors centrifugal air-cooling design promotes efficient heat dissipation for more reliable operation in hot conditions.

T-Motors IP45-rated motor protection is designed to resist dust and water for more reliable flights in wet or dusty conditions.

The T-Motor design uses a fine dust-prevention mesh (under 1 mm) to help keep sand and debris out of the motor.

The T-Motor iron core features a special anti-rust treatment rated for a 48-hour salt spray test.

Imported custom bearings and dual bearing protection are designed to improve service life and corrosion resistance, including a 6-hour salt spray test rating.

N45 UH magnet grade is rated for up to 180C max working temperature with listed remanence, coercive force, and energy product specs.

T-Motor pairs a 30-inch carbon fiber CF Prop with FOC ESC control for smoother, lower-noise operation.

T-Motors direct prop mounting design eliminates the need for a prop adapter and includes a 2g location pin for alignment during installation.
