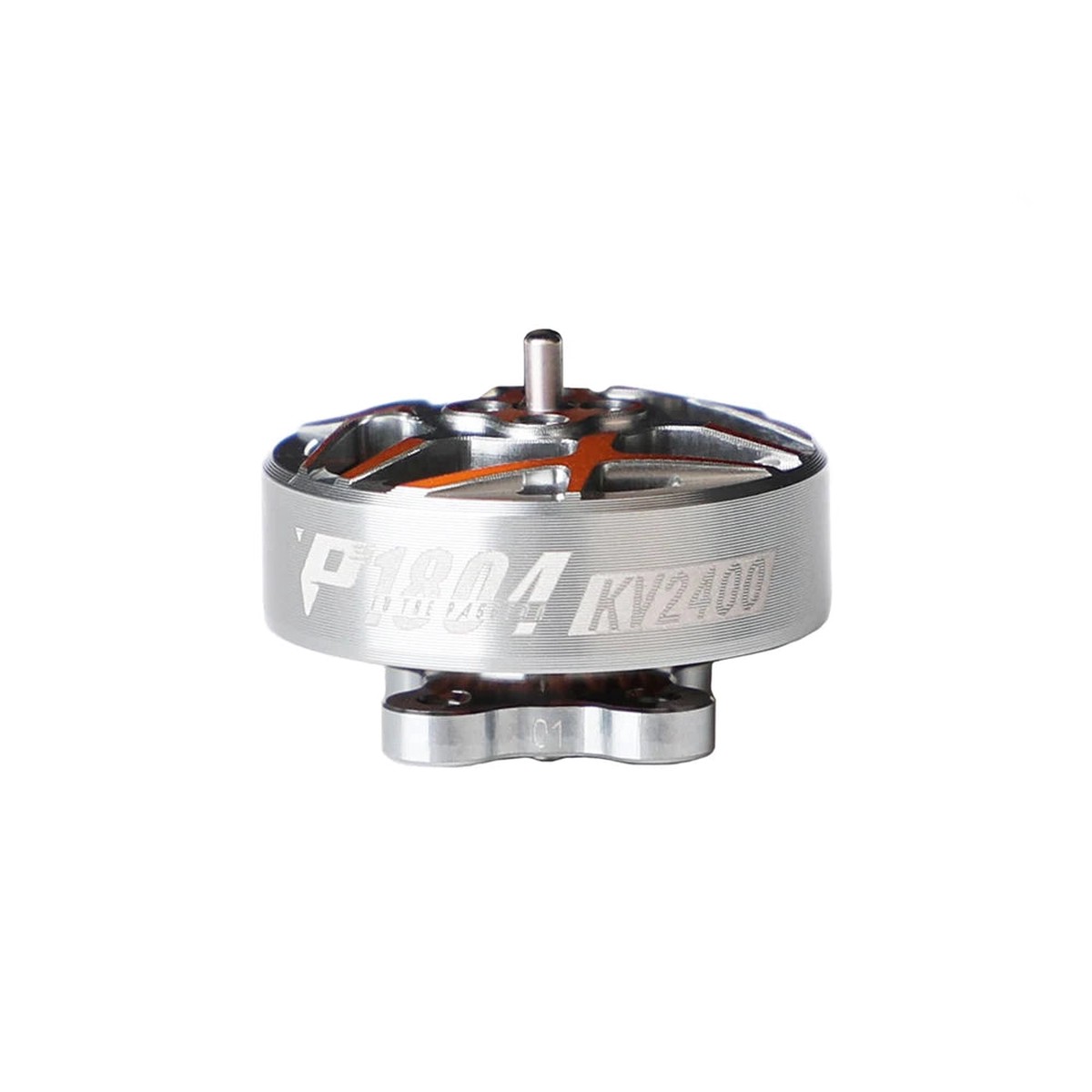

T-Motor P1804 2400KV 3400KV 3S 4S Brushless Motor 1.5mm/5mm Shaft for 34 Inch Toothpick Freestyle FPV Drones

Overview

The T-Motor P1804 Brushless Motor is a lightweight and powerful option for 3″ to 4″ FPV toothpick and freestyle drones. Available in 2400KV (for 6S) and 3400KV (for 4S) versions, and in both 1.5mm and 5mm shaft options, the P1804 delivers smooth response, excellent durability, and top-tier performance.

With a refined Unibell design, precision-balanced internals, and strong thrust outputup to 609g at full throttlethe P1804 is perfect for agile flight in demanding indoor and outdoor conditions.

Key Features

• Optimized for 3″, 3.5″, and 4″ FPV drones

• Available in 2400KV (6S) and 3400KV (4S)

• 1.5mm / 5mm shaft options for prop compatibility

• Precision-balanced for smooth throttle response

• Unibell structure for enhanced crash resistance

• Lightweight: as low as 13.2g (excl. cable)

• Suitable for cinewhoop, toothpick, and freestyle flying

Specifications

Performance Summary (with GF D90-3 Prop, 3400KV, 4S)

More prop and KV configurations available in full datasheet.

Package Includes

• 1 T-Motor P1804 Brushless Motor (choose KV & shaft size)

• 1 Parts bag (mounting screws, lock nut, washers)

T-Motor KV2400/KV3400 for 3-4S whoops, smooth freestyle flight.

T-Motor Unibell Design: Classic Pacer series with one-piece bell design, offering enhanced durability for reliable performance.

T-Motor offers two shaft sizes, 1.5mm and 5mm, for varied pilot needs.

P1804 motor specifications include 2400KV and 3400KV options, with shaft diameters of 1.5mm and 5mm. Weights range from 13.78g to 14.9g, max power up to 379.8W, and peak current at 20.2A.

T-Motor propellers’ performance metrics, including voltage, current, RPM, thrust, power, and efficiency at various throttle settings for 2400KV and 3400KV types, are detailed in the P1804 Test Report.

GF4023-3 motor data at 2400KV and 3400KV, including thrust in grams at various throttle percentages. P1804 testing graph compares T76S, GF4023-3, and GF76-5 motors at 24V.

T-Motor P1804 product details cover thrust performance at 16V for T76S-3, GF76-5, and GF 4023-3 types. Thrust rises with throttle percentage. The package includes one 1.5mm/5mm motor and a parts bag. Verify all items are included before use; if not, contact [email protected]. Specifications: 3400KV. The graph displays thrust in grams versus throttle percentage, emphasizing motor efficiency and power output characteristics. This data helps evaluate the motor’s performance effectively.
