T-Motor MN701-S KV135 UAV Motor Set (2PCS) IP45 Brushless Motor for Multirotor/VTOL/Fixed Wing

Overview

The T-Motor Navigator MN701-S KV135 is a brushless UAV motor designed for multirotor, VTOL, and fixed-wing platforms. It features IP45 protection (dust-resistant, waterproof, anti-corrosion) and a cooling structure using a centrifugal fan, grid-shaped inlet holes, and a finned motor base for improved heat dissipation.

Key Features

• Max thrust: 9.7 kg (9.7+ thrust stated)
• Cooling design: heat dissipation performs 15% better than ordinary motors
• Manual winding with special varnished wires of high temperature resistance
• High-temperature resistant magnets for heat and overload resistance
• IP45 protection grade: Waterproof, dust-resistant, anti-corrosion
• Locking method: T-shape shaft secured with a circlip and a screw to help prevent rotor looseness under high RPM
• 8 mm steel shaft and big bearings for impact resistance, stability, and lifetime
• Curved magnet design: helps improve motor performance by 5%+
• MTBF: about 1000 hours

Specifications

Applications

• Multirotors, VTOL, fixed-wing UAVs
• Aerial photography (general use)
• Cargo drones, tethered platforms, mapping, and inspection

Whats Included

• 2x T-Motor MN701-S KV135 brushless motor (2PCS/SET)
• 1x Hardware pack

Matching Guide

• T-MOTOR G26*8.5 Prop

For pre-sales compatibility checks and bulk orders, contact [email protected] or visit https://rcdrone.top/.

Details

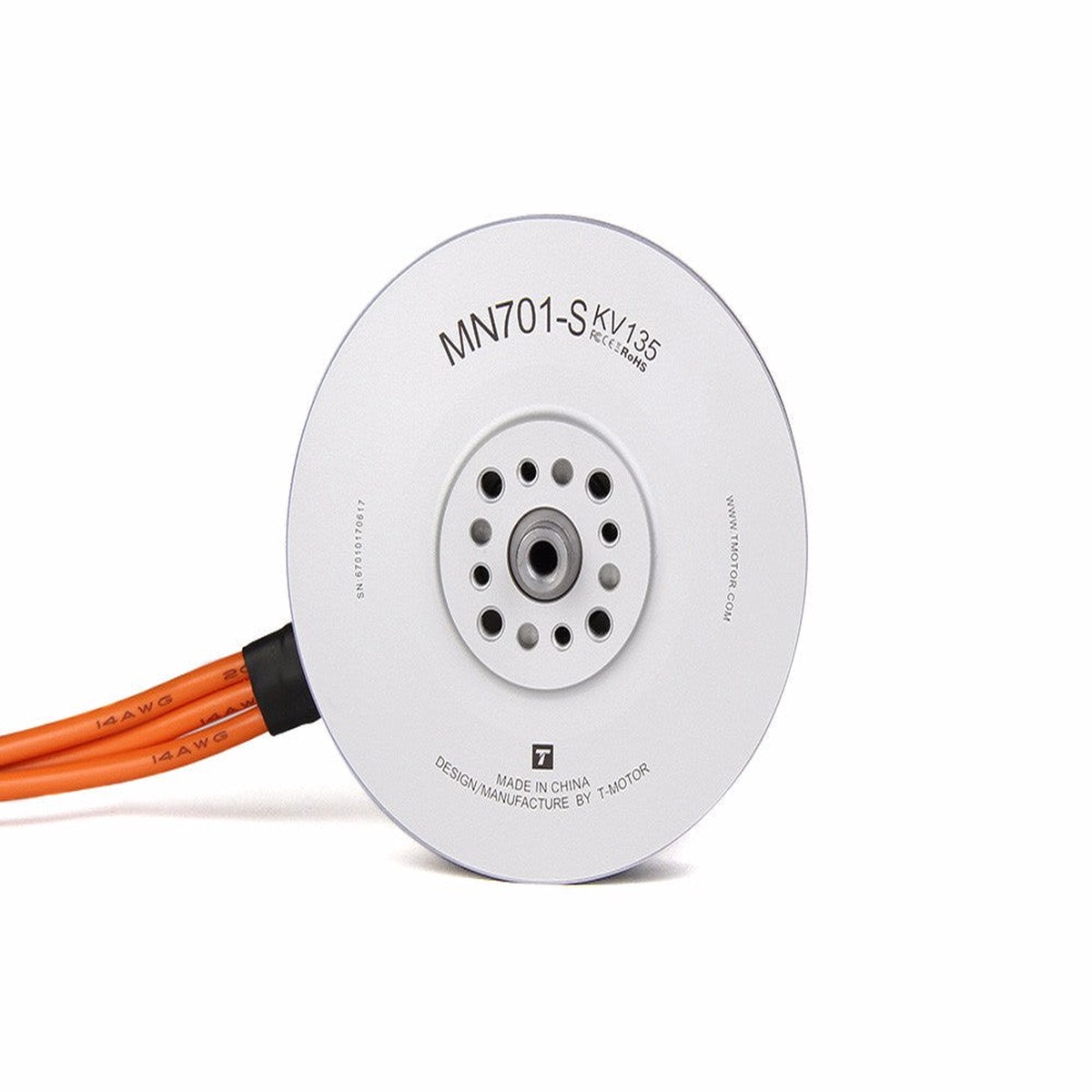

The T-Motor MN701-S KV135 motor has a clean, simple mounting face and an IP45 rating for added protection in outdoor setups.

The T-Motor features a cooling-focused construction with a centrifugal fan bell cap, grid-style inlet holes, and finned motor base to help dissipate heat.

A motor airflow simulation map visualizes heat distribution and air path patterns using a Kelvin temperature scale.

T-Motor MN701S motor protection is listed as IP45 with waterproof, dust-resistant, and anti-corrosion design features.

The MN701S uses a Tshape shaft locking method with a circlip, washer, and screw to help keep the rotor securely fastened.

The MN701S uses an 8mm steel shaft and large bearings to support stable operation and extended service life.

T-Motor uses curved magnets with precise tolerance control to optimize the magnetic circuit for a claimed 5%+ performance improvement.

Integrated prop mounting uses a prop adapter with M3 screws and different cover sizes depending on prop diameter (below 22″ or above 24″).

Foldable prop installation uses different mounting screws depending on prop size, with an optional prop adapter and M3 hardware for 22-inch and smaller props and M4 screws for 26-inch and larger props.

T-Motor MN701-S KV135 motors pair with the ALPHA 80A HV FOC ESC for a clean, straightforward power setup.
