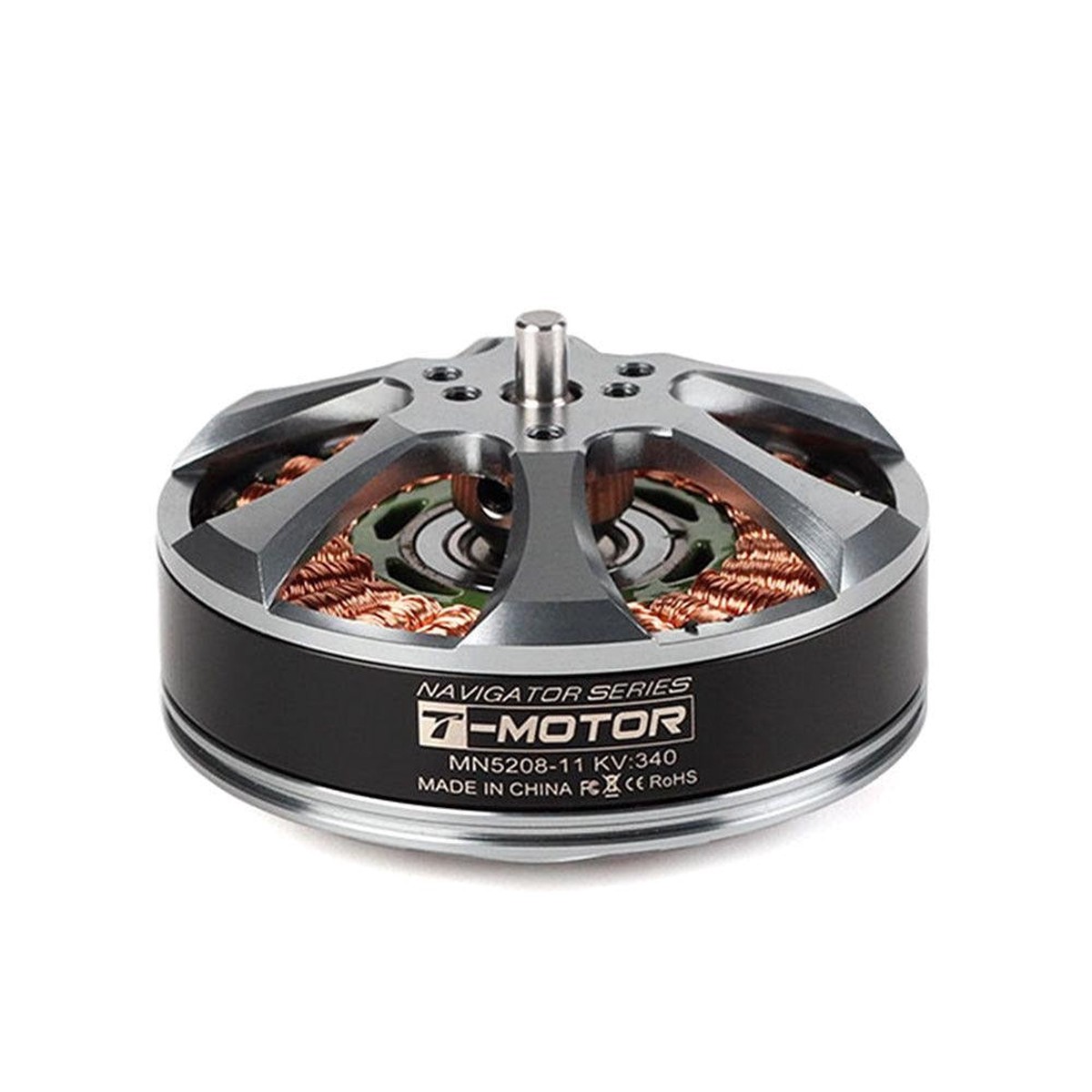

T-Motor MN5208 KV340 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN5208 KV340

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

MN5208 It is not only a motor,but also a work of art with precisely processing and nicer dynamic balanced

T-Motor’s MN5208 motor features an exterior design consistent with the MN series, and employs a unique air-extracting cooling system that ensures stable airflow around the rotor.

Compared to loose-wound motors, this brushless motor features a lower instant current (15% reduction) and load current (5-10% reduction), resulting in higher efficiency and more torque. The standard and delicate winding process, combined with a fixed connection to the ESC, provides customers with increased convenience and a superior user experience.

The bearings utilized in the T-MOTOR MN5208 KV340 brushless motor, as well as other models in the MN5208 series, are significantly larger than those found in comparable motors from other manufacturers.

The MN5208 KV340 brushless motor comes with eight M3*12 screws intended for installing the propeller, propeller adapter, and carbon fiber propeller in conjunction with the cover plate. Note that these screws do not include those used to secure the bracket and motor.

Test Report: MN5208 KV340 (Report Number: MN.00029). Specifications: Internal Resistance: 0.093 milliohms; Configuration: 24NZZP; Shaft Diameter: 4mm; Motor Dimensions: 59mm x 29.5mm; Stator Diameter: 52mm; Stator Height: 8mm; AWG Cable Length: 600mm; Weight (including cables): 196 grams; Weight (excluding cables): 150 grams; Number of Cells (Lipo): 4-6S; Idle Current @ 10V: [insert value].
