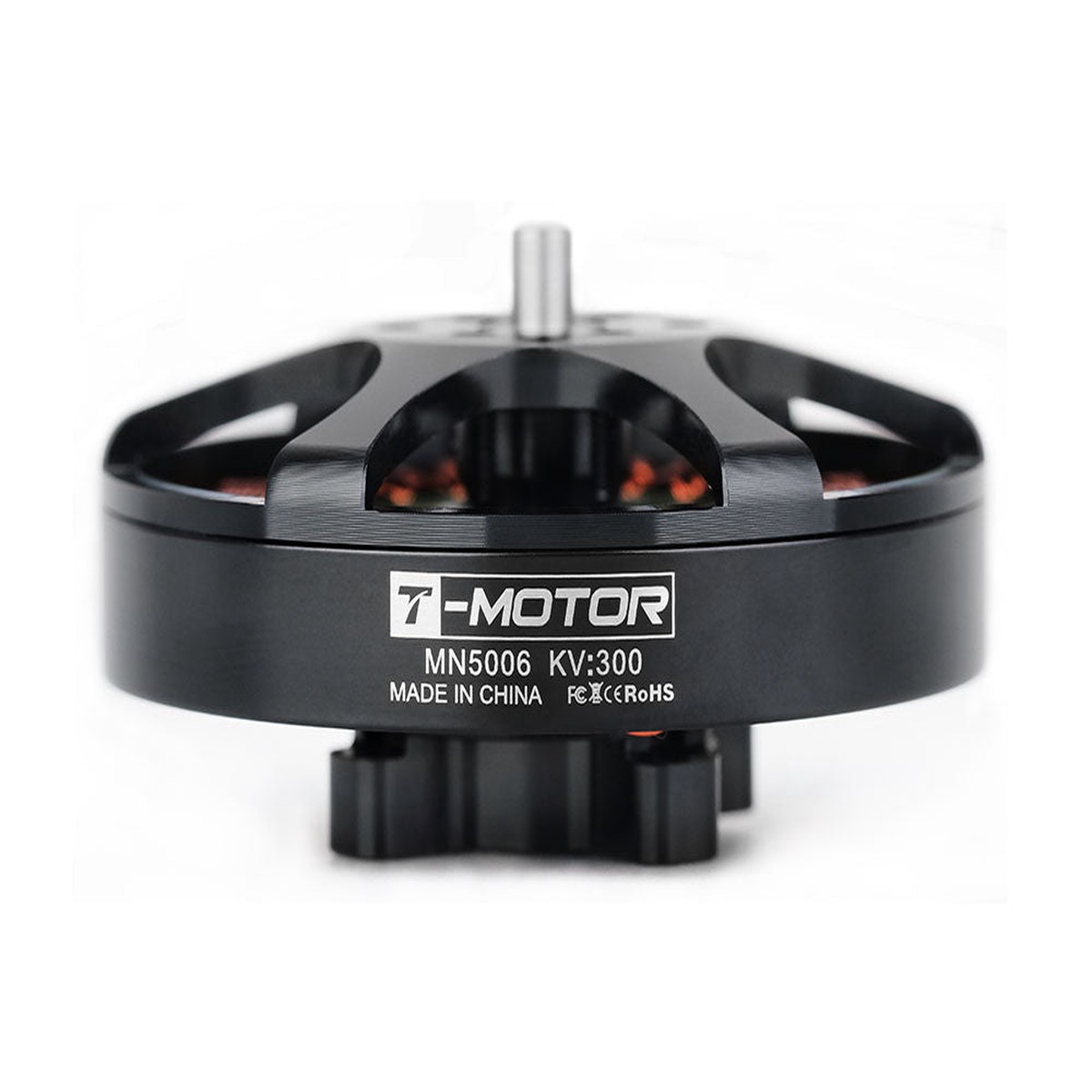

T-Motor MN5006 KV300 Antigravity UAV Motor 4-6S, 108g Ultra-Light Brushless Multirotor Motor

Overview

T-Motor MN5006 KV300 Antigravity is an ultra-light, high-efficiency brushless UAV Motor designed for multirotor/VTOL platforms on 46S power systems. The MN5006 series focuses on long flight endurance and smooth operation with low cogging torque for stable flight performance.

Key Features

• Ultra light, high efficiency; designed for long flight
• Recommended thrust per motor: 0.81 kg
• Thrust at full throttle: 3.2 kg
• Motor weight: 108 g
• Run smoothly with low cogging torque
• High-temp resistant wire
• High quality bearing
• Silicone steel sheet: 0.2 mm thickness (imported silicone steel sheets of high magneto-conductivity; upgraded laminated technology)
• Arc magnet: optimized arc magnets design contributes to the fusion of efficiency and thrust
• Thermal statement: motor temperature after working with 601 W load for 10 mins is 82C
• Flight time statement: flight time up to 60 mins (test note: MTOW 4 kg, NS18*6 prop, 22 Ah battery, hover under windless condition)

Specifications

For product selection or setup questions, contact customer service at https:/// or email support@.

Whats Included

• 1 T-Motor MN5006 KV300 motor
• 1 Hardware pack

Applications

• Aerial photography
• Surveying and mapping
• Environmental monitoring
• Traffic flow analysis

Matching Guide

• Propeller: T-MOTOR P17*5.8
• ESC: Air 40A 12S ESC

Prop Installation (hardware text)

• M3*10mm Screw*2
• 40 Cover*1
• 6*4*2mm Cooper adapter*1
• Prop options shown: 1418inch Integrated Prop; 18inch Foldable Prop

Details

The T-Motor MN5006 Ultra Light KV300 motor is labeled at 108g and lists 0.81kg recommended thrust per motor with up to 3.2kg thrust at full throttle.

Flight time is listed as up to 60 minutes for surveying tasks such as crowds, traffic flow, and forest work (MTOW 4 kg, NS186 prop, 22Ah battery, windless hover).

T-Motors open stator design with visible copper windings supports reliable power delivery for aerial photography builds.

T-Motor Antigravity Edition motors feature a lightweight open-frame design with visible copper windings and a top-mounted shaft for prop installation.

T-Motors internal construction features high-temp resistant winding wire, arc magnets, silicone steel sheets, and a quality bearing.

T-Motor prop installation uses two M310mm screws, a 40 cover, and a small adapter for 1418 inch integrated props or 18 inch foldable props.
