T-motor MN4014 KV330 2.6KG Thrust Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Propellers

Origin: Mainland China

Model Number: MN4014 KV330

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

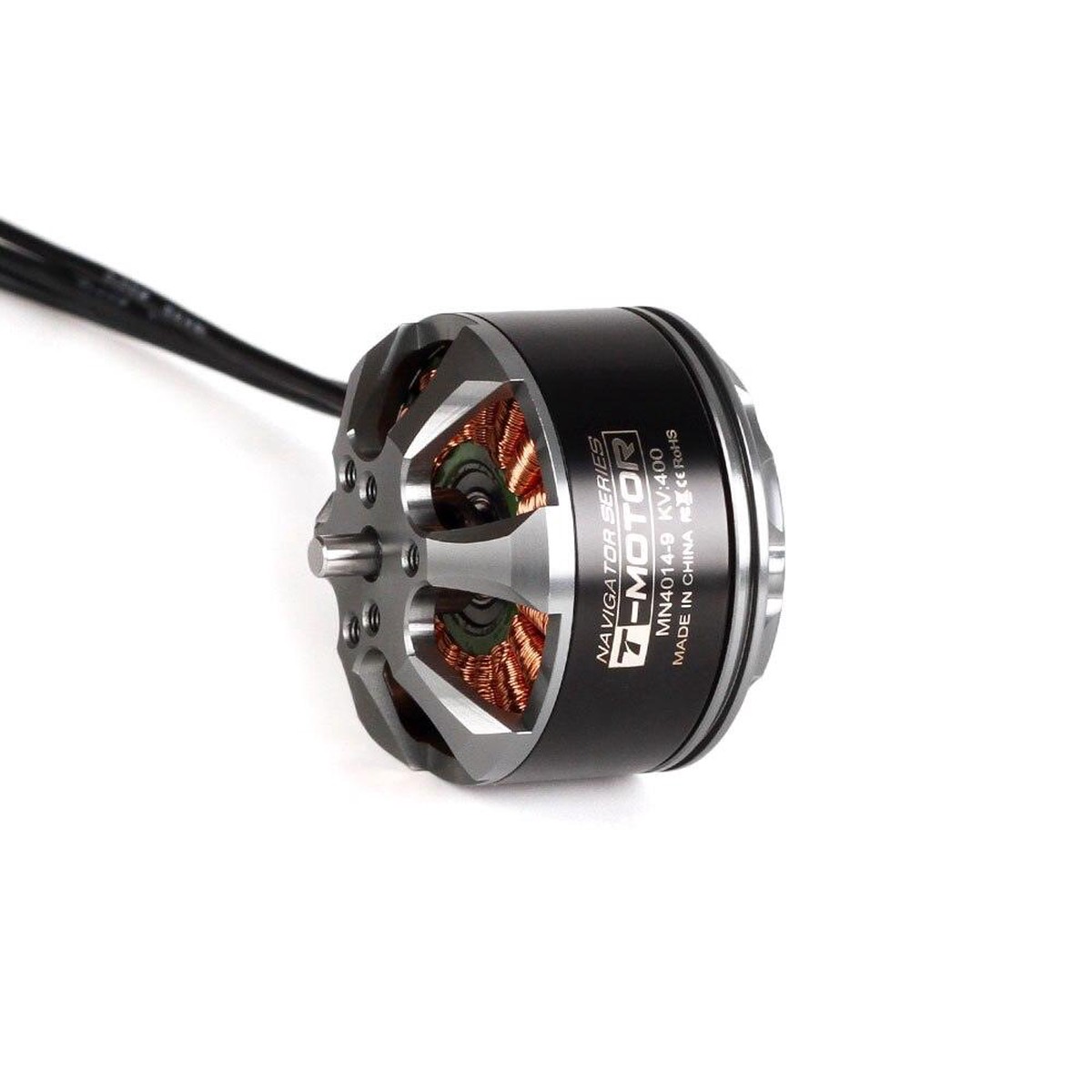

a high quality, smooth running, durable brushless motor built for multirotor UAV application . the custom assembly methods and components unique to Navigator series to provide the reliability required for & dependable aerial platform.

This motor features a robust propulsion system, ensuring reliable performance for dependable aerial applications.

The T-motor MN4014 comes equipped with bearings that are twice as large as those found in similar motors of the same size. These high-quality ball bearings are specifically designed for low-speed, smooth operation and are used in the Cn40140 LM2TQR application, ensuring precise performance.

The MN4014 motor features a flexible mount design with multiple holes to accommodate various frame types. This allows for easy installation of main props in standard 25x25mm mounting holes, making it compatible with many existing frames, including DJI S800.

The package includes two sets of propeller adapters (M6 and M8) and eight M3x12 screws, designed for installing T-motor’s carbon fiber propellers onto the plate cover.

Installation instructions for a 15cm x 6cm motor, including a flat cover for a carbon fiber (CF) prop adapter.

Test Report Test Item MN4014 KV330 Report NO. MN.00026 Specifications Internal Resistance 85m0 Configuration 18N24P Shat Diameter 4mm Motor Dimensions 044.7*34.5mm . Stator Diameter 40mm Stator Height 14mm AWG 18# Cable Length 60Omm Weight Including Cables 171g Weight Excluding Cables 150g Noof Cells(Lipo) -85 Idle Current@1Ov 1.1A

Test Report Test Item MN4014 KV4OO Report NO. MN.00025 Specifications Internal Resistance 67mn Configuration 18N24P Shaf Diameter 4mm Motor Dimensions 044.7*34.5mm Stator Diameter 40mm stator height 14mm AWG 18# Cable Length 60Omm Weight Including Cables 171g Weight Excluding Cables 150g Noof Cells(Lipo) -85 Idle Current@1Ov
