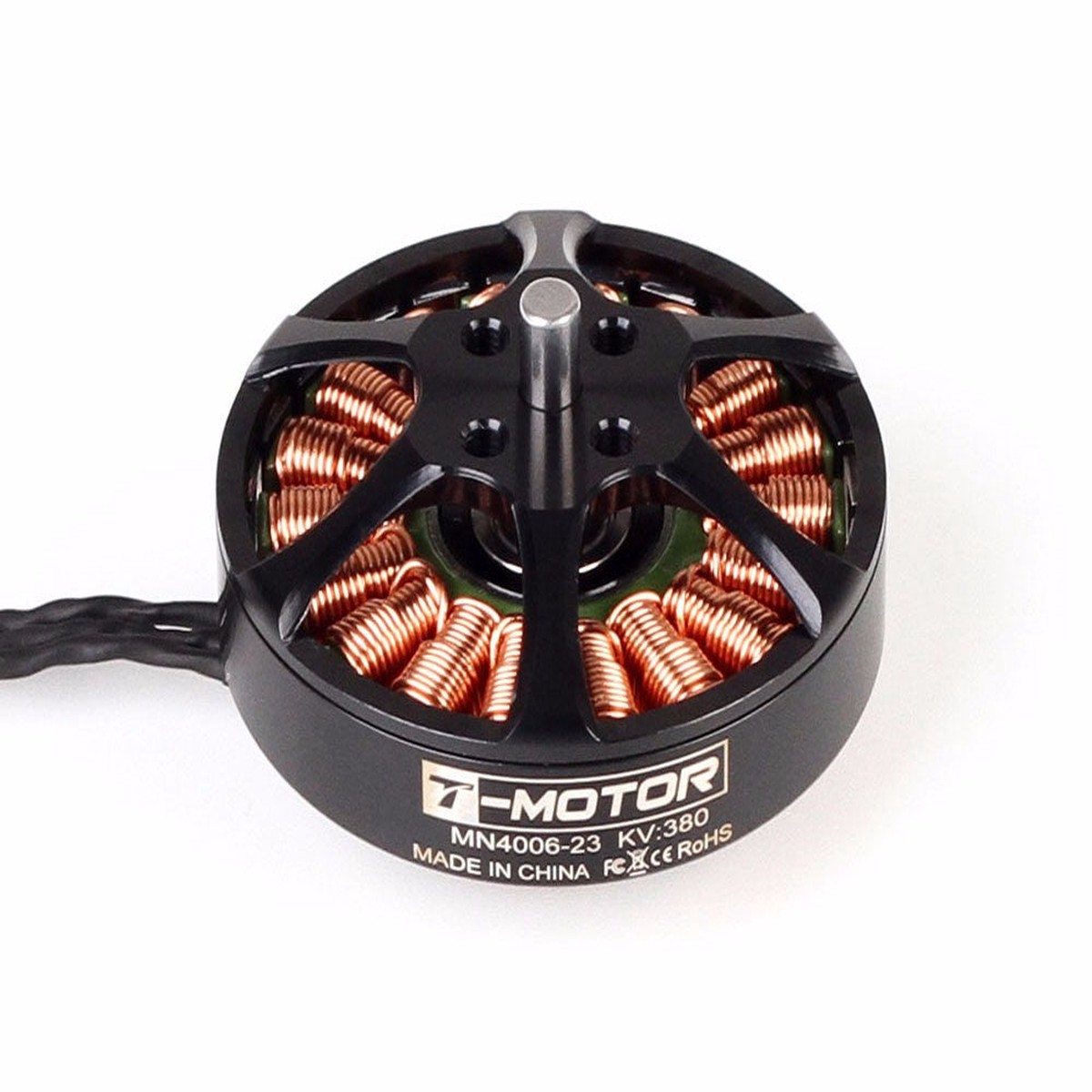

T-Motor MN4006 KV380 Antigravity UAV Motor 4-6S Brushless Multirotor Motor Set (2PCS)

Overview

This UAV motor set includes 2x T-MOTOR MN4006 Antigravity brushless motors with KV380 rating for 4-6S multirotor/VTOL UAV power systems. The MN4006 uses an ultrathin, lightweight design (57 g per motor) with a ventilation and cooling structure for efficient operation, and supports propeller mounting via M6-hole compatible adapters.

Key Features

• Ultrathin design; lightweight construction (processed by high strength aluminium)
• Single thick copper wire winding by hand (reduces energy dissipation)
• Unique ventilation and cooling design
• Excellent assembling workmanship with rotor dynamic balance
• High grade EZO bearings / high grade import bearings
• 92% max efficiency (4-6 A)
• Up to 1.6 kg thrust
• Compatible with T-MOTOR carbon fiber propellers and other propellers with M6 hole
• Unique cooling design and dynamic testing for stable running and easier speed-up
• Bearing note: official test indicates flight time of 60-80 hours; bearing is a consumable part and replacement is suggested after 60 hours of flight time

Specifications

Applications

Multi-rotors, VTOL, UAV

Whats Included

• 2x T-MOTOR MN4006 Motor KV380
• 1x CW prop adapter
• 1x CCW prop adapter

Matching Guide

T-MOTOR T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC

For order support and technical questions, contact support@ or visit https:///.

Details

The Ultralight Antigravity 4006 motor includes mounting screws and a prop adapter set to simplify installation.

T-Motors ultrathin brushless motor design uses hand-wound thick copper wire and a ventilated layout for cooling.

T-Motor brushless outrunner motors feature an open stator design with copper windings and pre-soldered lead wires for straightforward installation.

Thick copper wire windings are clearly visible in the stator for a clean, durable motor build.

The T-Motor features an open-frame layout with exposed windings and a central shaft for straightforward mounting and wiring.

The motor uses an imported bearing, with guidance to consider replacing the bearing after about 60 hours of flight time.

T-Motor standard mounting accessories include a spinner hub, adapter plate, and M6 hardware for installing compatible propellers.
